Waterproof 4 Ports SC APC Fiber Optic Terminal Box Outdoor Optical Distribution Box for FTTH
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001 |
| Model Number | KCO-FDB-04-MK |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | carton box, wooden pallet |
| Delivery Time | 7~14 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 20,000 pcs/ month |
Product Details
| Material | ABS | P/N | KCO-FDB-04-MK |
|---|---|---|---|
| Color | Grey | Connector | SC |
| Application | FTTH | Capacity | 4 Port |
| Splitter | 1*4 | Adapter | SC/APC |
| Outdoor Cable Port | 1 Port | Drop Cable Port | 4 Ports |
| Waterproof Grade | IP65 | Usage | Wall Mountable |
| Highlight | Waterproof Fiber Optic Terminal Box,FTTH Fiber Optic Terminal Box,SC APC Optical Distribution Box |
||
Product Description
Product Overview
The KCO-FDB-04-MK is an outdoor waterproof fiber optic distribution box (FDB) specifically engineered for FTTH (Fiber To The Home) applications. Designed to meet IP65 waterproof standards, this optical distribution box provides reliable connection and protection for fiber cables in demanding outdoor environments.
The unit features 1 input port for round outdoor cable and 4 output ports for FTTH drop cable on the bottom, making it an ideal solution for fiber optic termination in PON networks, telecom projects, and FTTX systems. It supports wall or pole mounting for flexible installation.
Key Features
- Lightweight and compact design for cost-effective deployment
- Supports up to 4 FTTH drop cable connections
- Suitable for both wall and pole mounting
- High-impact plastic construction with a user-friendly industry interface
- Accommodates 1×4 optical fiber splitter (mini tube PLC splitter)
- 4 adapter ports compatible with SC simplex or LC duplex adapters
- 1 inlet port for outdoor cable and 4 outlet ports for FTTH drop cable
- Meets cable termination and sealing requirements
Applications
- PON networks
- FTTX systems
- Telecom projects
- Fiber optic termination for indoor and outdoor use
- CATV networks
- Data communications networks
- Telecommunication networks
- FTTD (Fiber To The Desk) interfaces

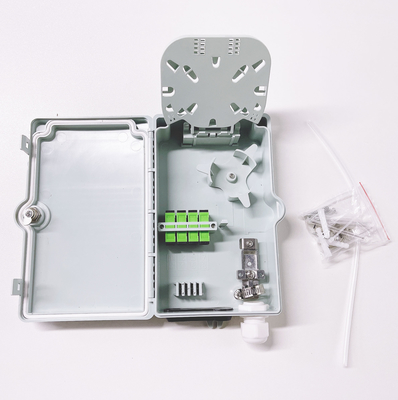

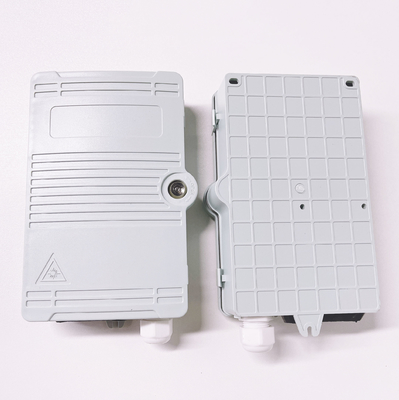

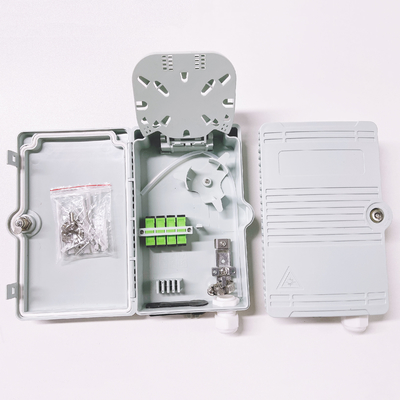

Product Image
Operating Conditions
- Temperature range: -45°C to +85°C
- Relative humidity: ≤85% (+30°C)
- Atmospheric pressure: 70KPa to 106KPa
Qualification & Performance
- Connector loss: ≤0.2dB
- Insertion loss: ≤0.2dB
- Return loss: ≥50dB (UPC), ≥60dB (APC)
- Nominal working wavelength: 850nm, 1310nm, 1550nm
- Insulation resistance (between frame and protection grounding): >1000MΩ/500V (DC)
Specifications
| Item | KCO-FDB-04-MK |
|---|---|
| Dimension | 190 × 140 × 90 mm |
| Net Weight | 0.35 kg |
| Splice Tray | 1 pcs |
| Adapter Ports | 4 ports |
| Splitter | Mini Tube PLC Splitter 1×4 |
| Splitter Quantity | Max. 1 pcs |
| Color | Grey |
| Working Temperature | -25°C to 60°C (5 to 95% relative humidity) |
Related Products
OEM / ODM Service
Custom branding is available for cables, packaging bags, labels, and other surfaces. Our OEM and ODM services are always ready to meet your requirements.
Packing & Shipping
Packing
Standard export packing is used: carton box, wooden box, or wooden pallet, according to your requirements.
Shipping Methods
- International express: UPS, TNT, DHL, etc.
- International air freight: CA, AA, EA, etc.
- By sea: COSCO, HYUNDAI, etc.
- Standard shipping ports: Shenzhen, Hong Kong, Ningbo
