IP65 12 Ports FTTH Fibre Termination Box Access FAT Terminal Box

  • IP65 12 Ports FTTH Fibre Termination Box Access FAT Terminal Box
  • IP65 12 Ports FTTH Fibre Termination Box Access FAT Terminal Box
  • IP65 12 Ports FTTH Fibre Termination Box Access FAT Terminal Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FDB-12A-SX
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS P/N KCO-FDB-12A-SX
Color Grey Connector SC
Application FTTH Capacity 12 Port
Splitter 1*8 Adapter SC
Outdoor Cable Port 2 Port Drop Cable Port 12 Ports
Waterproof Grade IP65 Usage Wall Mountable, Pole Mountable
High Light

FTTH Fibre Termination Box

,

IP65 Fibre Termination Box

,

FTTH FAT Terminal Box
Leave a Message
Product Description

FTTH 12core IP65 Optical Fiber Access Terminal FAT Box



Descriptions:
- Optical distribution terminal box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.
- The wall mountable fiber optic terminal box design to use to building or pillar wall mounting.
- It can use for indoor or outdoor application. It can match IP65 waterproof standard.
- As the product variety and customer requirements we also supply 3 in 1 terminal box to sastify more fibers capacity inquirement. It is not only can connect the cable and patch jumper, also can install the fiber splitter or other product as your need. With 4 different grids, you can use it install any product as you need.
- This outdoor waterproof fiber optic distribution box (FDB) is special design for outdoor application.
- KCO-FDB-12A-SX is designed for outdoor using with 1 port for round cable and 4 ports for FTTH drop cable.
- This ODP have 2 input port for outdoor cable and 12 output ports for Ftth drop cable on the bottom.
- It is easy to install on the pole or wall.
- It is especially for connection and protection for fiber cable for FTTH.
- This fiber optic terminal box applies to the communication room and various network room wall installation or desktop installation.
- FTTH insert optical fiber terminal splitter box, arc, horizontal type.

Feature:
- Light weight, small size, save cost.
- Up to 12 FTTH drops cable ports.
- Suitable for outdoor wall and pole mount using.
- User familiar industry interface, using high impact plastic.
- Can accommodate 1ⅹ8 optical fiber splitter.
- 12 pcs of adapter port is fit with SC simplex adapter or LC duplex adapter.
- 2 inlet capacity for outdoor cable and 12 outlet ports for ftth drop cable.
- Match cable termination and sealing requirements.


Specification:
Item KCO-FDB-12A-SX
Dimension 240*220*60mm
Net Weight 0.70kg
Splice tray 1pcs
Adapter ports12  port
Splitter Mini Tube PLC Splitter 1*8
Splitter no. max. 1pcs
Color Grey
Working Temperature -25°C ~ 60°C (5 to 95% relative humidity)



Application
- PON networks;
- Widely used in FTTX systems;
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- Data communications networks
- Telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.

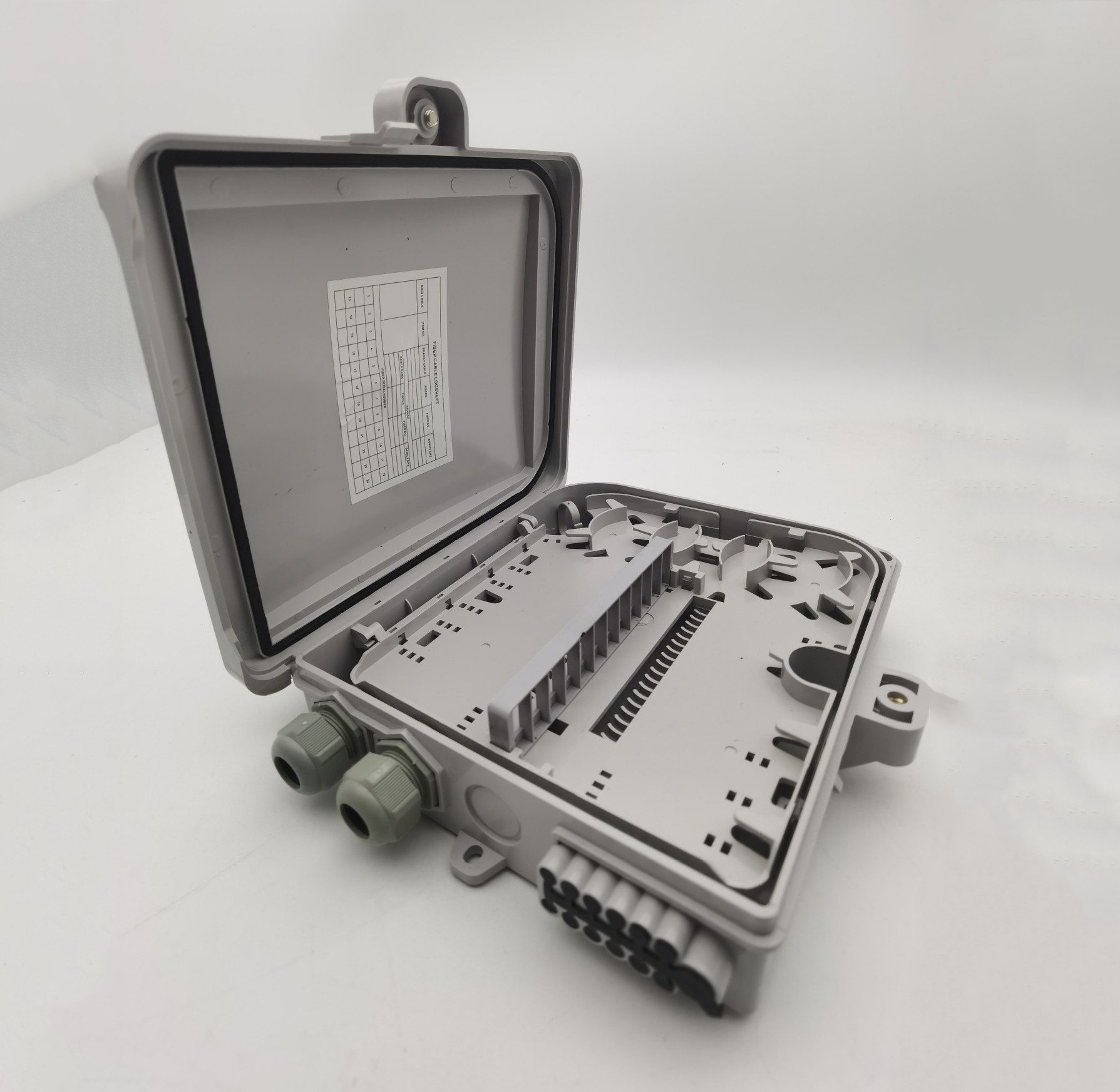

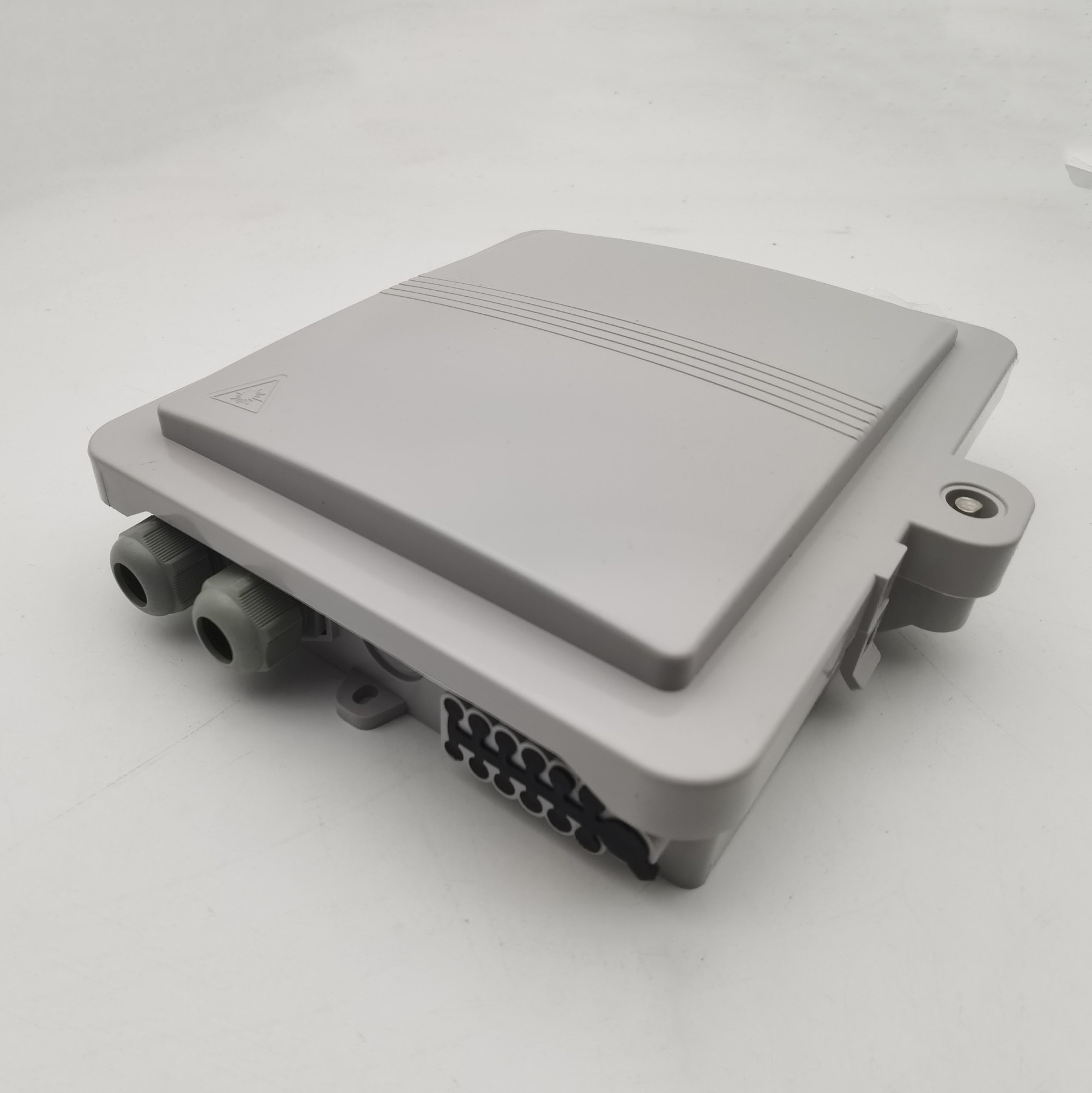

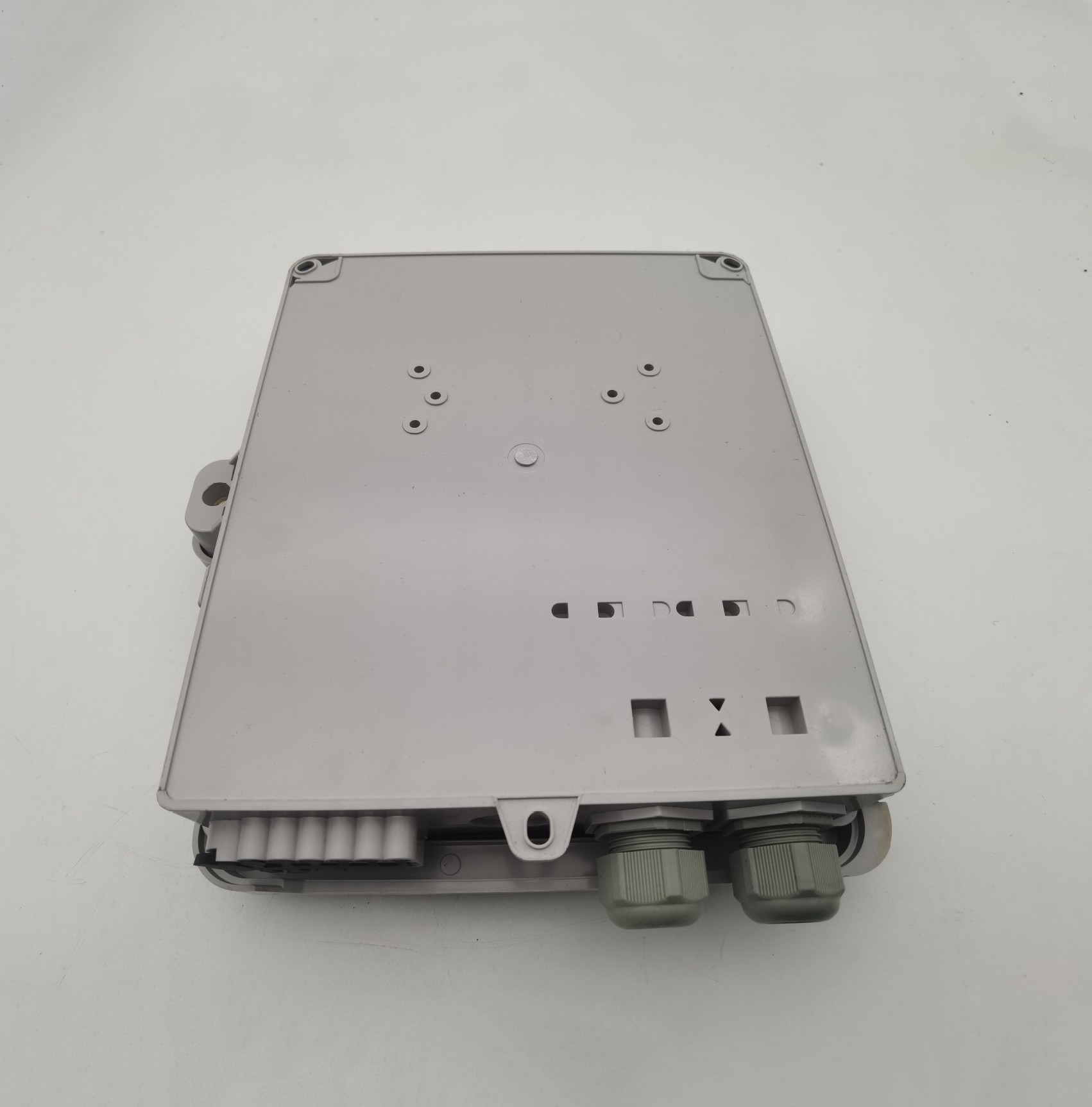

Products photos:

IP65 12 Ports FTTH Fibre Termination Box Access FAT Terminal Box 0



Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:
     ≥50dB(UPC),
     ≥60dB(APC)
- Nominal work wave-length: 850nm,1310nm,1550nm
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)



Related Products:
IP65 12 Ports FTTH Fibre Termination Box Access FAT Terminal Box 1



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc
- Standard shipping port: Shenzhen, Hongkong, Ningbo
