48 Cores Waterproof FTTH Fiber Optic Terminal Box FDB ODP Distribution Box

Descriptions:
- FTTH outdoor fiber optical distribution box is used in wiring connection between optical cable and optical communication equipment, through adapter in distribution box, optical fiber jumper leads optical signal, realize optical wiring function, and can meet the optical splitter placed to achieve spectral function.
- Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- The optical fiber distribution box is an interface device for connecting the backbone optical cable and the distribution optical cable outdoors, in a corridor or indoor. The optical fiber distribution box must be able to work reliably in the specified environment, and its box can withstand a vertical pressure of not more than 500N.
- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
- KCO-FDB-0348-MK is designed for outdoor using with 3 port for round cable and 48 ports for FTTH drop cable.
- Its waterproof grade can match IP65.

Feature:

* Upto 48 fiber optic adapter ports.

* Water-proof design with IP-65 Protection level.
* Integrated with splice cassette and cable management rods.
* Manage fibers in a reasonable fiber radius condition.
* Easy to maintain and extend the capacity.
* Fiber bend radius control more than 40mm.
* Suitable for the fusion splice or mechanical splice.
* 1*32 and 1*16 Splitter can be installed as an option.
* Efficient cable management.
* Temperature:-20℃~ 70℃
* OEM / ODM:Available

Application:

- LAN

- WAN

- Metro

- PON networks;
- Widely used in FTTX systems such as: FTTA, FTTB, FTTH, FTTO, ...
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- Data communications networks
- Telecommunication networks;

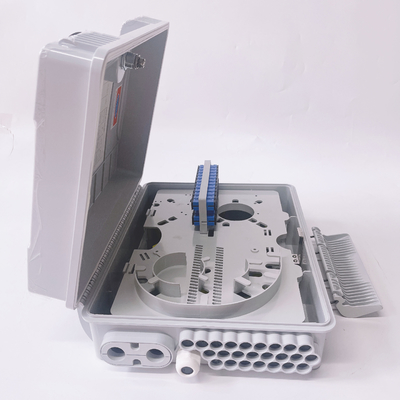

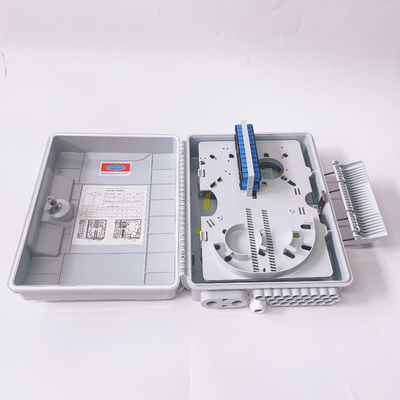

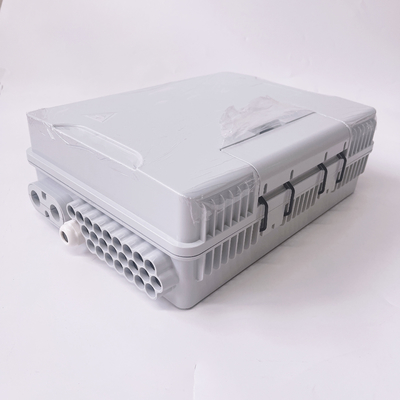

Products photos:

Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:
≥50dB(UPC),
≥60dB(APC)
- Nominal work wave-length: 850nm,1310nm,1550nm
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)
