SmartAX GPON / EPON Fiber Optical Line Terminal OLT Huawei MA5800X15 MA5800X17
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | GPON OLTs | PON Module | B+,C,C+,C++ |
|---|---|---|---|
| Application | FTTx Network System | PON Board | XGHD, GPSF, GPHF |
| P/N | MA5800X15/ | Series | MA5800 |
| Brand | Huawei | Size | 442*287*486 Mm (mm) |
| Switching Capacity Of The System | 7 Tbit/s | Sub-rack Port No. | 112 X GPON/EPON |
| High Light | SmartAX GPON ONU,Fiber Optical Line Terminal OLT,EPON Terminal OLT |
||
Product Description
SmartAX GPON/EPON Fiber Optical Line Terminal OLT Huawei MA5800X15 MA5800X17
GPON OLTs MA5800X15 Description:
- The MA5800 series of OLT is the latest and the most advanced OLT platform in the industry. It is designed to support continuing growth in bandwidth demand, wire-line and wireless access convergence, and migration toward SDN.
- Full-service distributed Optical Line Terminal (OLT) - building green, ultra-broadband, and intelligent aggregation access networks.
- The EA5800 series multi-service access devices feature distributed architecture and provide users with a unified transmission platform for broadband, wireless, video, and surveillance services.
- The EA5800 provides GPON, XG-PON, XGS-PON, GE, and 10 GE access, and supports multiple network construction modes, including POL, FTTH, FTTB, and FTTC. One optical network covers all services, simplifying the network architecture and reducing OPEX.
- The EA5800 is available in small, medium, and large specifications, making it suitable for every scenario.
GPON OLTs MA5800X15 Control And Integrated Boards:
MPLA*2 (with 4 10G ports)
DC power: PILA*2
GPON OLTs MA5800X15 Server Boards:
16 ports 1G GPON board: GPHF and GPSF
16 ports 1G EPON board: EPHF
8 ports 10G GPON board: XGLD and XGHD
8 ports 10G EPON board: XELD and XEHD
GPON OLTs MA5800X7 Feature:
- The MA5800 is the industry's first smart aggregation OLT with a distributed architecture.
- It is positioned as the next-generation OLT for NG-PON.
- The product is designed to help carriers build networks with larger bandwidths, higher speeds, and smarter connectivity to deliver better service experience.
- Providing GPON, 10G GPON (including XG-PON and XGS-PON), P2PGE, and 10GE access, the MA5800 supports deployment on FTTH,FTTD, FTTB, FTTC, and distributed converged cable access platform(D-CCAP) networks.
- This makes it applicable to home access,enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to aggregate all services on one fiber network.
- The MA5800 functions as a large-capacity aggregation device on the network to aggregate the traffic from ONTs, MDUs, and campus switches, thereby simplifying the network architecture and reducing the OPEX.
GPON OLTs MA5800X7 Parameter:
| Item | MA5800-X17 | MA5800-X15 | ||
| Dimensions (W*D*H) | 493 mm x 287 mm x 486 mm | 442 mm x 287 mm x 486 mm | ||
| Maximum Number of Ports in a Subrack | 272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1 |
240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1 |
||
| Switching Capacity of the System | 7 Tbit/s | |||
| Ambient Temperature | -40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
|||
| Working Voltage Range | -38.4V DC to -72V DC | |||
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 | |||
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF | |||
| MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching | |||
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay | |||
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast | |||
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL | |||
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
|||

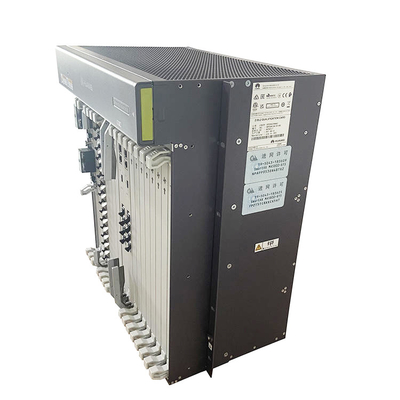

GPON OLTs MA5800X2 Product Photo:
Huawei ONU Main Catalogy:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
