Multimode OM3 Fiber Optic Coupler Splitter 1X 2 1 X 4 1 X 8 SC LC FC ST Connector

  • Multimode OM3 Fiber Optic Coupler Splitter 1X 2 1 X 4 1 X 8 SC LC FC ST Connector
  • Multimode OM3 Fiber Optic Coupler Splitter 1X 2 1 X 4 1 X 8 SC LC FC ST Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-OM3-3.0-1.0M-LC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fiber Optical Coupler Splitter Length 1.0meter
Splitter Type 1*8 1x8 Connector LC
Cable 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x8-OM3-3.0-1.0M-LC
High Light

OM3 Fiber Optic Coupler Splitter

,

Multimode Fiber Optic Coupler Splitter

,

1x8 Fiber Optic Splitter
Leave a Message
Product Description

Multi Mode Plc Optical Coupler 1*2 1*4 1*8 SC LC FC ST Connector



Multi-mode Optical Fiber MM Splitter Coupler 1*2 1*4 1*8 1*16 1*32 SC LC FC ST Connector​



Descriptions:
- Multimode Fiber Optic Coupler allows bi-directional coupling and can be used to either split or combine signals. It uses 50/125 or 62.5/125μm fiber, with low insertion loss and a 850nm operating wavelength.
- This 1x8 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails with FC/PC connectors.

- The MM graded index couplers offer low insertion loss and excellent environmental and mechanical stability.

- The multimode couplers are available in 50/125um and 62.5/125um fiber types and operate at 850nm or 1310nm wavelength range.

- Fiber optic splitter provides a low cost light distribution solution with high stability and reliability.



Introduction:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....

- Our product catalog:

+ Fiber optic splitter

+ Fiber optic patch cable

+ Fiber optic cable

+ Fiber optic terminal box

+ Fiber optic splice closure box

+ Fiber optic accessories



Features:

- Good uniformity and low insertion loss

- Low Polarization Dependent Loss

- Excellent Environmental Stability

- Stability Telcordia GR-1221 and GR-1209

- High Reliability and Stability



Applications:
- FTTX Deployment

- FTTH Network
- CATV System

- Optical Signal Distribution
- Passive Optical Network(PON)

- Fiber Optic systems
- Measuring System

- Laser System
- DWDM and CWDM System

- Fiber Optic CATV
- Fiber to home(FTTH)
- Passive Optical Networks (PON)
- Local Areal Networks(LAN)
- Fiber communication systems.



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1





Product photos:

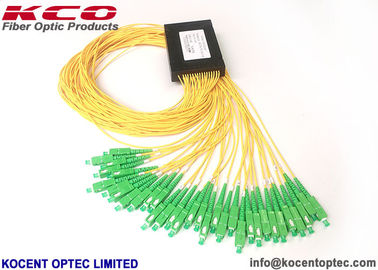

Multimode OM3 Fiber Optic Coupler Splitter 1X 2 1 X 4 1 X 8 SC LC FC ST Connector 0



Our PLC Splitter Family:



Multimode OM3 Fiber Optic Coupler Splitter 1X 2 1 X 4 1 X 8 SC LC FC ST Connector 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Multimode OM3 Fiber Optic Coupler Splitter 1X 2 1 X 4 1 X 8 SC LC FC ST Connector 2
