96 Cores SC Simplex Fiber Optic Distribution Panels 4U Drawer Rack Mountable

Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-DR-4U-96-SCS
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 10,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Simplex Connector 2 LC Duplex
Size 485*300*4U Capacity 96 Cores SC Or 192 Cores LC
Color Black High 4U / 180mm
Type Drawer Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
High Light

SC Simplex Fiber Optic Distribution Panels

,

4U Fiber Optic Distribution Panels

,

Drawer Fiber Optic Distribution Panels

Leave a Message
Product Description

96 Cores SC Simplex Adapter Port 4U Drawer Rack Mountable Fiber Optic Box



Description:

- Fiber optic patch panels are also known as fiber optic distribution panels. It use to connect and protect the fiber optic cable and fiber optic pigtail & patch cable by the fiber optic tray.

- They make it easy to terminate fiber optic cables and provide access to the cable’s individual fibers for cross connection.

- A fiber optic patch panel is typically a metal enclosure that encloses the adapter panels and fiber splice trays. Splice trays allow fibers to be fused together with fiber optic pigtails which in turn are plugged into the fixed inside ports of the fiber optic adapter panels plate.

- The fiber optic patch panel has two compartments. One contains the bulkhead receptacles or adapters, and the other is used for splice tray and excess fiber storage.

- The 96 cores drawer rack mountable fiber optic box is reliable fiber optic organization and distribution products, convenient for operations and maintenance.

- The 96 cores drawer rack mountable fiber optic box has wide operation temperature and suit density fiber optic installations.

- Rack Mount Patch Panel FTTH Fiber Optic Termination Box Catalogy:

1/ Fixed Type Patch Panel

2/ Drawer Type Patch Panel

3/ Rotate Type Patch Panel

4/ Distribution Unit Patch Panel

- Rack Mount Patch Panel FTTH Fiber Optic Termination Box is standard 19 inch with high 1U (44.5mm), 2U, 3U, 4U and Max. 6U.

- Rack Mount Patch Panel FTTH Fiber Optic Termination Box's adapter panel plate adapter port can make for SC simplex adapter (LC duplex adapter), SC duplex adapter (LC quad adapter), FC square adapter, FC D type adapter, FC long type adapter (ST long type adapter), ST D type adapter, MPO adapter, E2000 adapter, DIN adapter, MU adapter, etc.



Feature:

- The shell is high intensified & insulated material, thus having excellent mechanic performance.
- It is solid and durable.
- Adapters output: 96 cores (SC simplex adapter).
- Strength core and shell was insulated and with grounding lead.
- Suitable for inserting installation of SC, FC, ST and LC adaptor.
- Full accessories for convenient operations.



Product photo:

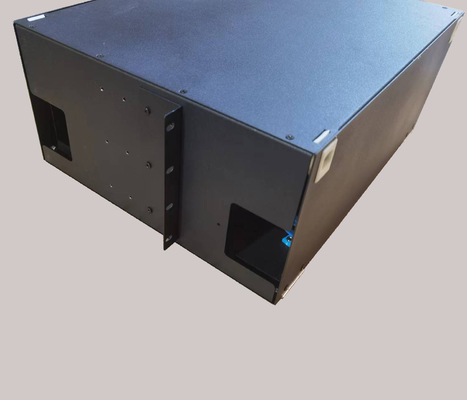

96 Cores SC Simplex Fiber Optic Distribution Panels 4U Drawer Rack Mountable 0

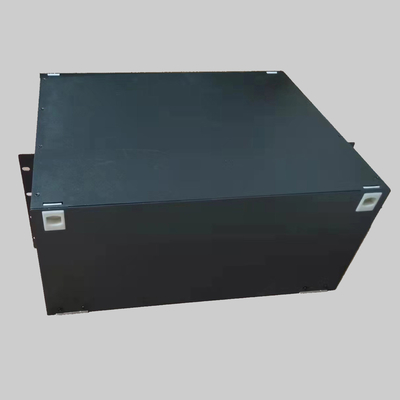

  96 Cores SC Simplex Fiber Optic Distribution Panels 4U Drawer Rack Mountable 1



Descriptions:

Fiber Capacity of panel  Max 96fo (SC simplex adapter)
Panel Connector Port  96 ports
Type  Drawer type
Dimension  485*300*4U
Material  Cold Rolled Steel or Aluminum
Storage Temperature  -45~+65℃
Thickness   0.6 0.8 1.0 1.2 1.5mm
Accessories  Cable ties, mounting ear screws, and spiral wrap tube
Fiber type

 SM: G652D, G657A1, G657A2
 MM: OM1, OM2, OM3, OM4, OM5

Weight  7.50kgs
P/N:   KCO-DR-4U-96-SCS


Kocent Optec Limited Product Catalog:

1/ Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable, tactical cable.
2/ Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
3/ Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
4/ Fiber Optic Fast Connnector: SC, FC, LC, ST
5/ Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
6/ Fiber Optic Terminal Box: Cross Cabinet, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...

7/ Fiber Optic Distrinution Box: Fiber Optic Patch Panel, Fiber Optic Distribution Unit, Fiber Optic Distribution Frame, ...

8/ MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.



Relation Product:

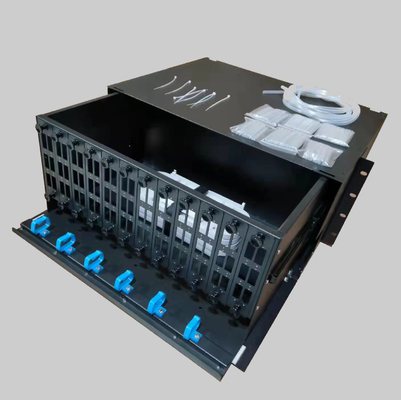

96 Cores SC Simplex Fiber Optic Distribution Panels 4U Drawer Rack Mountable 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
