Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks

  • Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks
  • Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks
  • Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-MN-1x32-0.9W-1.0M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type Mini Tube Pigtail Length 1.0m, 1.5m
Splitter Type 1*32 1x32 Connector SC/APC
Cable Dia. 0.9mm P/N KCO-MN-1x32-0.9W-1.0M-SCA
Connector Color Green Pigtail Color White
Highlight

SC 1x32 Optical Splitter

,

LSZH 1x32 Optical Splitter

,

SC Connector 1x32 PLC Splitter
Leave a Message
Product Description
PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH
Product Overview
Mini Steel Tube SC Connector PLC 1x32 Optical Splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, ideal for EPON, GPON, FTTH, and FTTX networks. This compact solution offers high reliability and precise optical signal distribution at low cost.
Key Features
  • Planar Lightwave Circuit (PLC) technology with SC/APC termination
  • Silica optical waveguide for accurate, even signal distribution
  • Compact mini tube design with high reliability
  • Low insertion loss and high return loss
  • Wide operating temperature range (-20°C to 85°C)
  • Available in various configurations: bare fiber, mini tube, ABS box, rack mount, LGX box
Construction Details
  • Configuration Type: 1*32, 1*32, 1:32
  • Fiber Type: G.657A1
  • Pigtail Diameter: 0.9mm
  • Pigtail Color: White (multi-colors optional)
  • Pigtail Length: 1.0m input / 1.0m output
  • Connector Type: SC/APC
Technical Specifications
Parameter Specification
Splitter Type PLC Splitter
Configuration Type 1x32 Optical Splitter
Connector Type SC/APC (other connectors optional)
Fiber Length 1.0m (1.5m, 2.0m optional)
Package Style Mini Tube Type
Fiber Type Singlemode G657A1 (G652D optional)
Operating Bandwidth 1260~1650nm
Fiber Diameter 0.9mm
Insertion Loss (≤) dB 17.1
Loss Uniformity (≤) dB 1.5
Polarization Dependent Loss (≤) dB 0.3
Wavelength Dependent Loss (≤) dB 0.5
Return Loss (≥) dB 50
Directivity (≥) dB 55
Temperature Dependent Loss (≤) dB 0.8
Operating Temperature (°C) -20~85
Storage Temperature (°C) -40~85
Applications
  • PON (passive fiber optic networks)
  • FTTH Network
  • FTTX Deployment
  • LAN
  • CATV System
  • Optical Signal Distribution
  • Passive Optical Network (PON)
  • Measuring System and Laser System
  • DWDM and CWDM System
  • Data Communications
Product Images

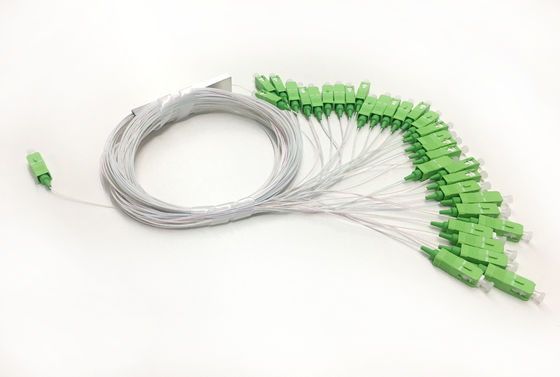

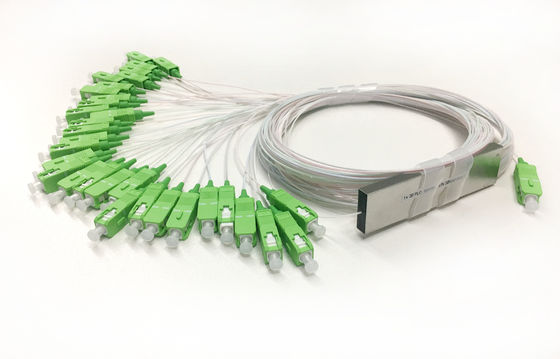

Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks 0 Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks 1 Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks 2 Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks 3
OEM/ODM Service
We offer custom branding services for your products including cable, packaging, and labels. Contact our sales team for personalized support.
Mini Steel Tube 1x32 PLC Optical Splitter with 0.9mm LSZH G.657A1 Fiber for FTTH Networks 4
Packaging & Shipping
  • Packaging: Standard export packing with carton box, wooden box, or wooden pallet
  • Shipping Methods:
    • International express (UPS, TNT, DHL)
    • International air freight (CA, AA, EA)
    • Sea freight
  • Export Ports: Shenzhen, Hongkong, Ningbo
  • Export Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
