SC/UPC PLC Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for Low Insertion Loss Fiber Optic Networks

  • SC/UPC PLC Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for Low Insertion Loss Fiber Optic Networks
  • SC/UPC PLC Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for Low Insertion Loss Fiber Optic Networks
  • SC/UPC PLC Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for Low Insertion Loss Fiber Optic Networks
  • SC/UPC PLC Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for Low Insertion Loss Fiber Optic Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x2-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Insert Type Pigtail Length 0.3m
Splitter Type 1*2 1x2 1:2 Connector SC/UPC
Cable Dia. 0.9mm P/N KCO-LGX-1x2-SCU
Connector Color Blue Pigtail Color White
Highlight

SC UPC Passive Fiber Splitters

,

Insertion Type LGX PLC Splitter

,

1x2 LGX PLC Splitter
Leave a Message
Product Description
SC/UPC Passive Fiber Splitters 1x2 1:2 1*2 Insertion Type LGX PLC Splitter
Product Description

Our 1:2 1x2 1*2 Insertion Type Optical PLC LGX Passive Fiber Splitters are engineered for long-term reliability and superior performance in fiber optic networks. These splitters feature:

  • Consistent performance with low optical insertion loss
  • Minimal polarization dependent loss
  • High reliability and stability
  • Superior environmental and mechanical characteristics
  • Quick and easy installation

The PLC Cassette Fiber Optic LGX Splitter comes with 1 input and 2 output SC/UPC connectors, making it ideal for various applications including optical transmission, telecommunications, CATV, and fiber to the home (FTTH) networks.

Key Features
  • High channel counts available
  • Wide wavelength range (1260-1650nm)
  • Various coupling ratios
  • Environmentally stable performance
  • Low insertion loss and low PDL
  • High reliability and stability
  • Available in single-mode and multimode options
  • Customized packaging and configurations available
Applications
  • PON, GPON networks
  • FTTx construction
  • Fiber optical communication systems
  • Fiber optical access networks
  • Fiber sensors
  • Fiber CATV networks
  • Local area networks
Technical Specifications (without connector)
2×N Configuration
Parameter Unit 2x2 2x4 2x8 2x16
Operation Wavelength nm 1260~1650
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1
Uniformity (Max.) dB 0.6 0.7 0.8 1.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3
Return Loss dB ≥50(UPC); 60(APC)
Directivity dB ≥55
1×N Configuration
Parameter Unit 1x2 1x4 1x8 1x16
Operation Wavelength nm 1260~1650
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8
Uniformity (Max.) dB 0.6 0.7 0.8 1.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3
Return Loss dB ≥50(UPC); 60(APC)
Directivity dB ≥55
Product Images

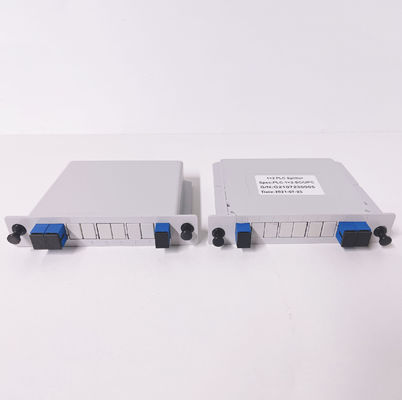

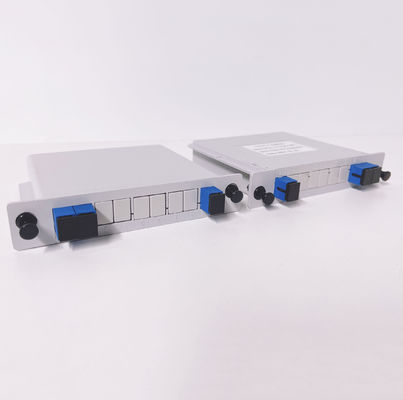

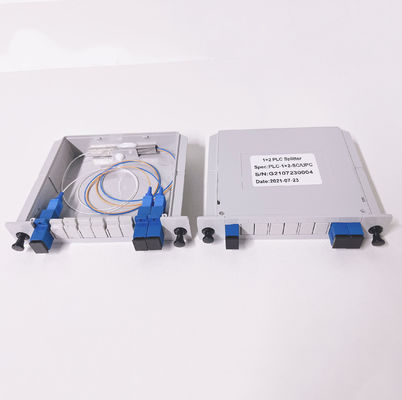

SC/UPC PLC Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for Low Insertion Loss Fiber Optic Networks 0 SC/UPC PLC Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for Low Insertion Loss Fiber Optic Networks 1
OEM/ODM Services

We offer custom branding options including logo placement on cables, packaging, labels, or other locations. Contact our sales team for personalized solutions.

Packaging Options
  • Standard export packing
  • Carton boxes
  • Wooden boxes
  • Wooden pallets
Shipping Methods
  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
