1U 12 Ports 19 Inch Patch Panel SC Duplex Fiber Optic Cable Joint Box

Standard 19inch 1U 12 Ports SC Duplex Patch Panel Fiber Optic Cable Joint Box

Description:

- The 12 port SC Duplex Patch Panel Fiber Optic Cable Joint Box is a 19’’ rack mounted fiber optic patch panel that made of cold-roll steel, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.

- The 12 port SC Duplex Patch Panel Fiber Optic Cable Joint Box has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.

- The 12 port SC Duplex Patch Panel Fiber Optic Cable Joint Box is suitable for SC Duplex adapter, LC quad adapter, FC duplex adapter, ST Duplex Adapter, DIN duplex adapter.

- The 12 port SC Duplex Patch Panel Fiber Optic Cable Joint Box can also be pre-loaded completely with the required adapter and simple management kit.

- The sliding system in its basic form can be supplied with or without adapters and pigtails. The fiber optic splice tray is locked in place and has two plastic catches for simple installation.

- The 12 port SC Duplex Patch Panel Fiber Optic Cable Joint Box fully provides a perfect working flat form for simple installation and easy maintenance.

- The 12 port SC Duplex Patch Panel Fiber Optic Cable Joint Box has two compartments. One contains the bulkhead receptacles or adapters, and the other is used for splice tray and excess fiber storage.

- The 12 port rack mount optical fiber patch panel height: 1U: 44.5mm (max 24 ports)

- Rack Mount Optical Fiber Patch Panel Catalogy:

1/ Fixed Type Optical Fiber Patch Panel

2/ Drawer Type Optical Fiber Patch Panel

3/ Rotate Type Optical Fiber Patch Panel

4/ Distribution Unit Optical Fiber Patch Panel

5/ DinRail Optical Fiber Patch Panel

6/ Wall mount Optical Fiber Patch Panel

Applications:

- Data center

- FTTH system

- Passive Fiber Optic Networks (PON, GPON)

- Telecommunication networks
- FTTB, FTTR, FTTO, FTTA system
- LAN,WAN ,CATV networks
- Active device termination

Feature:

- Color: Black (exwork color) Beige, White (optional color)

- Height: 1U to 4U or more

- Standard 19'', be fit with 19'' Distribution frame.

- Adapter port available: SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU, ...

- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm

- Packing: 1pc/small carton box, 1U: 5pcs/big carton, 2U: 3pcs/carton, 4U: 2pcs/carton

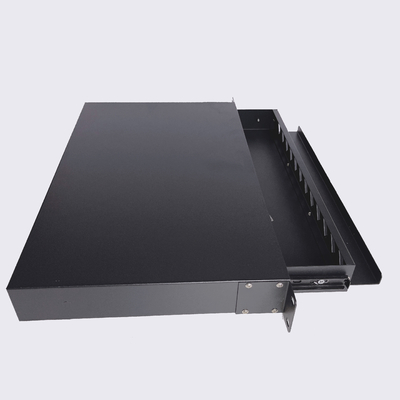

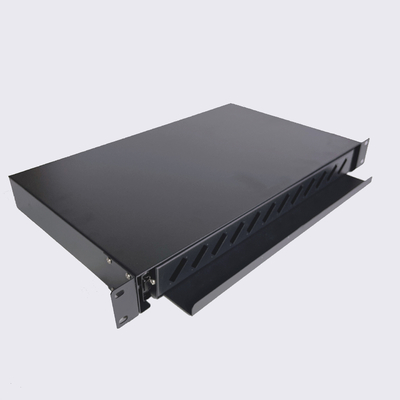

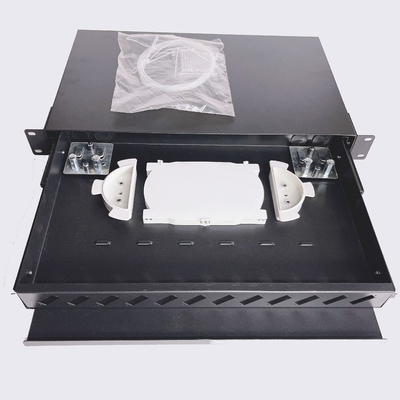

Product photo:

Packing:

Kocent Optec Limited Product Catalog:

1/ Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable, tactical cable.
2/ Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
3/ Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
4/ Fiber Optic Fast Connnector: SC, FC, LC, ST
5/ Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
6/ Fiber Optic Terminal Box: Cross Cabinet, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...

7/ Fiber Optic Distrinution Box: Fiber Optic Patch Panel, Fiber Optic Distribution Unit, Fiber Optic Distribution Frame, ...

8/ MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.

Relation Product:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
