19'' Indoor Fiber Optic Terminal Box 24 Ports Rackmount Fiber Optic Patch Box

19'' Indoor 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box

Description:

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box is a 19’’ rack mounted fiber optic patch panel that made of cold-roll steel, with plastic fiber optic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box is used for standard 19inch indoor fiber optic distribution frame. Normally, it use in FTTH systems and data center.

- 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box is the bridge of fiber patch cables, serving as standard 1U 19” rack, ODF and cabinets, to create a complete system for connectivity.

- 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box can be applied in LANs housing, optical communication, FTTD, and data center cabling etc.

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box is suitable for SC simplex adapter, FC simplex adapter, ST simplex adapter, LC duplex adapter, E2000 simplex adapter, DIN simplex adapter,  ...

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box can also be pre-loaded completely with the required adapter and simple management kit.

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box sliding system in its basic form can be supplied with or without adapters and pigtails. The fiber optic splice tray is locked in place and has two plastic catches for simple installation.

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box fully provides a perfect working flat form for simple installation and easy maintenance.

- The 24 Ports Rackmount Patch Panel Terminal Box Fiber Optic Patch Box has two compartments. One contains the bulkhead receptacles or adapters, and the other is used for splice tray and excess fiber storage.

- The 12 port rack mount optical fiber patch panel height: 1U: 44.5mm (max 24 ports)

- Rack Mount Optical Fiber Patch Panel Catalogy:

1/ Fixed Type Optical Fiber Patch Panel

2/ Drawer Type Optical Fiber Patch Panel

3/ Rotate Type Optical Fiber Patch Panel

4/ Distribution Unit Optical Fiber Patch Panel

5/ DinRail Optical Fiber Patch Panel

6/ Wall mount Optical Fiber Patch Panel

Applications:

- LAN, WAN system,

- Metro,

- Data center,

- FTTH system,

- PON and GPON system,

- Telecommunication networks,
- FTTB, FTTR, FTTO, FTTA system,
- LAN,WAN ,CATV networks,
- Active device termination.

Feature:

- Color: White, Black, Beige

- Height: 1U to 4U or more

- Type: Slide Type

- Standard 19'', be fit with 19'' Distribution frame.

- Adapter port available: SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU, ...

- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm

- Packing: 1pc/small carton box, 1U: 5pcs/big carton, 2U: 3pcs/carton, 4U: 2pcs/carton

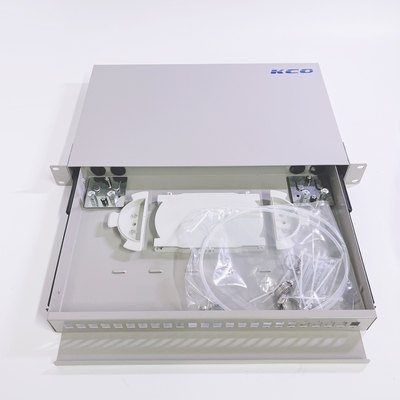

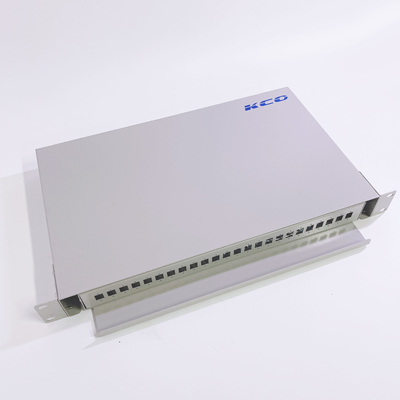

Product photo:

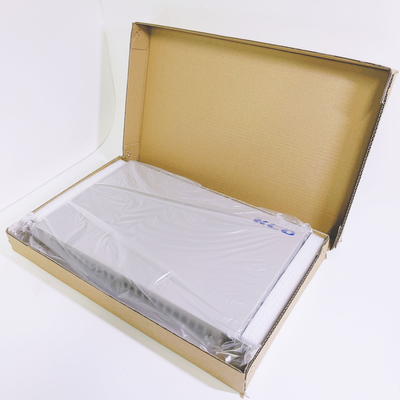

Packing:

Kocent Optec Limited Product Catalog:

1/ Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable, tactical cable.
2/ Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
3/ Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
4/ Fiber Optic Fast Connnector: SC, FC, LC, ST
5/ Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
6/ Fiber Optic Terminal Box: Cross Cabinet, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...

7/ Fiber Optic Distrinution Box: Fiber Optic Patch Panel, Fiber Optic Distribution Unit, Fiber Optic Distribution Frame, ...

8/ MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.

Relation Product:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
