Characteristics |
Conditions |
Specified values |
Units |
|
|---|---|---|---|---|
|
Optical Characteristics |
||||
|
Attenuation |
1310nm |
≤0.35 |
[dB/km] |
|
|
1383nm(after H2-aging) |
≤0.35 |
[dB/km] |
||
|
1460nm |
≤0.25 |
[dB/km] |
||
|
1550nm |
≤0.21 |
[dB/km] |
||
|
1625nm |
≤0.23 |
[dB/km] |
||
|
Attenuation vs. Wavelength Max. α difference |
1285-1330nm, in reference to 1310nm |
≤0.03 |
[dB/km] |
|
|
1525-1575nm, in reference to 1550nm |
≤0.02 |
[dB/km] |
||
|
Dispersion Coefficient |
1285-1340nm |
-3.5 to 3.5 |
[ps/(nm·km)] |
|
|
1550nm |
≤18 |
[ps/(nm·km)] |
||
|
1625nm |
≤22 |
[ps/(nm·km)] |
||
|
Zero Dispersion Wavelength(λ0) |
-- |
1300-1324 |
[nm] |
|
|
Zero Dispersion Slope(S0) |
-- |
≤0.092 |
[ps/(nm2·km)] |
|
|
Typical Value |
-- |
0.086 |
[ps/(nm2·km)] |
|
|
PMD |
Maximum Individual Fibre |
-- |
≤0.1 |
[ps/√km] |
| Link Design Value(M=20,Q=0.01%) |
-- |
≤0.06 |
[ps/√km] |
|
| Typical Value |
-- |
0.04 |
[ps/√km] |
|
|
Cable Cutoff Wavelength (λCC) |
-- |
≤1260 |
[nm] |
|
|
Mode Field Diameter(MFD) |
1310nm |
8.4-9.2 |
[μm] |
|
|
1550nm |
9.3-10.3 |
[μm] |
||
|
Effective Group Index of Refraction(Neff ) |
1310nm |
1.466 |
-- |
|
|
1550nm |
1.467 |
-- |
||
|
Point Discontinuities |
1310nm |
≤0.05 |
[dB] |
|
|
1550nm |
≤0.05 |
[dB] |
||
|
Geometrical Characteristics |
||||
|
Cladding Diameter |
-- |
125.0±0.7 |
[μm] |
|
|
Cladding Non-Circularity |
-- |
≤0.7 |
[%] |
|
|
Coating Diameter |
-- |
235-245 |
[μm] |
|
|
Coating-Cladding Concentricity Error |
-- |
≤12.0 |
[μm] |
|
|
Coating Non-Circularity |
-- |
≤6.0 |
[%] |
|
|
Core-Cladding Concentricity Error |
-- |
≤0.5 |
[μm] |
|
|
Curl(radius) |
-- |
≥4 |
[m] |
|
|
Delivery Length |
-- |
Up to 50.4 |
[km/reel] |
|
|
Environmental Characteristics |
1310nm, 1550nm & 1625nm |
|||
|
Temperature Dependence Induced Attenuation |
-60℃ to +85℃ |
≤0.05 |
[dB/km] |
|
|
Temperature-Humidity Cycling Induced Attenuation |
-10°C to +85°C, 98% RH |
≤0.05 |
[dB/km] |
|
|
Watersoak Dependence Induced Attenuation |
23°C, for 30 days |
≤0.05 |
[dB/km] |
|
|
Damp Heat Dependence Induced Attenuation |
85°C and 85% RH, for 30 days |
≤0.05 |
[dB/km] |
|
|
Dry Heat Aging |
85℃, for 30 days |
≤0.05 |
[dB/km] |
|
|
Mechanical Specification |
||||
|
Proof Test |
-- |
≥9.0 |
[N] |
|
|
-- |
≥1.0 |
[%] |
||
|
-- |
≥100 |
[kpsi] |
||
|
|
-- |
-- |
-- |
|
|
Macro-bend Induced Loss |
10 Turns Around a Mandrel of 15 mm Radius |
1550nm |
≤0.25 |
[dB] |
| 10 Turns Around a Mandrel of 15 mm Radius |
1625nm |
≤1.0 |
[dB] |
|
| 1 Turn Around a Mandrel of 10 mm Radius |
1550nm |
≤0.75 |
[dB] |
|
| 1 Turn Around a Mandrel of 10 mm Radius |
1625nm |
≤1.5 |
[dB] |
|
|
Coating Strip Force |
typical average force |
1.5 |
[N] |
|
|
peak force |
1.3-8.9 |
[N] |
||
|
Dynamic Fatigue Parameter (nd) |
-- |
≥20 |
-- |
|
All Products
-
Fiber Optic Splitter
-
Fiber Optic Patch Cord
-
Fiber Optic Fast Connector
-
Wavelength Division Multiplexer
-
Fiber Optic Splice Closure
-
Fiber Optic Terminal Box
-
MPO MTP Patch Cord
-
Optical Fiber Cable
-
Fiber Optic Attenuator
-
Fiber Optic Connectors
-
Fiber Optic Adapter
-
Fiber Optic Polishing Equipment
-
Fiber Optic Tools
-
GPON ONU
-
SFP Fiber Optic Transceiver
-
Mr Henry ThaiKocent Optec Limited is our long-term partner. In 8 years of co-operation times we together win many projects. Their fast connector and FTTH drop cable quality are best. Their products are cover my country now. -
Mr PabloI was surprised when i made first order with Kocent Optec Limited in 2014. One container 40GP of GYXTW cable and one container 20GP for fast connector, patch cord and adapter. They finished this order in 2 weeks only. Now we also purchase many type of FDB box and Splice Closure Box from them. Hope we will be stronger and stronger in telecom field.

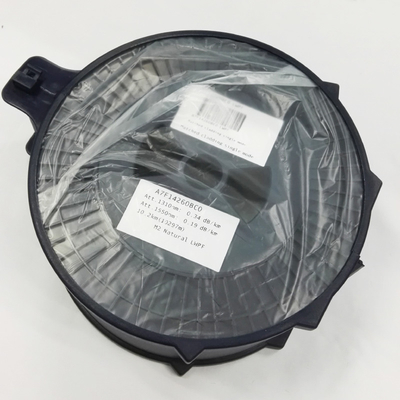

YOFC G657A1 EasyBand Bending Insensitive SM Fibre Core Bare Optical Fiber Spool For Optical Cable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Optical Fiber | Name | Optica Bare Fiber |
|---|---|---|---|
| Length | 50.4km | Fiber Type | G657A1 |
| Fiber | Single Mode | Cores | Single Core |
| Color | Nature Color, Or 12 Color Code | Diameter | 125um, 250um |
| Part Number | YOFC-G767A2-Color |
Product Description

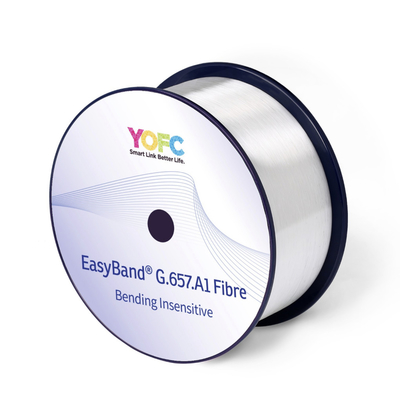

YOFC G657A1 EasyBand Bending Insensitive SM Fibre Core Bare Optical Fiber Spool For Optical Cable
1. What is G657A1 fiber ?
- YOFC EasyBand® bending insensitive single-mode fibre encompasses all the features of FullBand® fibre and provides good resistance to maro-bending.
- It has low macro-bending sensitivity and low water-peak level.
- It is comprehensively optimized for use in O-E-S-C-L band (1260 -1625 nm).
- It offers good resistance to additional losses due to low macro-bending in the 1625 nm wavelength region.
- This not only supports L-band applications but also allows for easy installation without excessive care when storing the fibre, for example, in splicing cassettes.
- For cable use inside buildings, the fibre supports installation with small cable bending radii and compact organizers.
2. Application:
- Short pitch cables for special application
- High performance optical network operating in O-E-S-C-L band
- High speed optical routes in buildings (FTTx)
- Cables with low bending requirements
3. Product standards:
- YOFC EasyBand® bending insensitive single mode fibre meets or exceeds the ITU-T Recommendation G.652.D/G.657.A1 including the IEC 60793-2-50 type B1.3/B6.a1 Optical Fibre Specification.
4. G657A2 Fiber Characterics:
- Low attenuation satisfying the operation demand in O-E-S-C-L band
- Good bending loss resistance at short radius bends
- Low bending loss for highly demanding cable designs including ribbons
- Low PMD satisfying high bit-rate and long distance transmission requirements
- Accurate geometrical parameters that insure low splicing loss and high splicing efficiency
5. Specifications
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

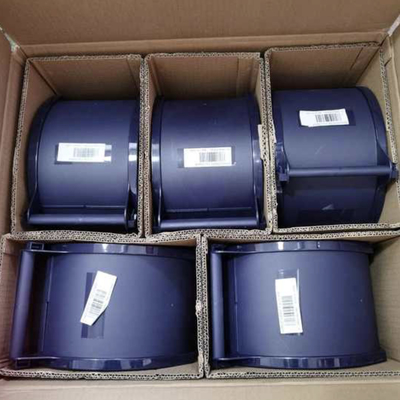

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
