FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-M/ADSS-G652D-xxFO |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Cable Type | Mini ADSS |
| Fiber | Single Mode | Cores | 2 Cores To 24 Cores |
| Color | Black | Diameter | 6.5mm |
| Part Number | KCO-M/ADSS-G652D-xxFO |
Product Description
FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
1. What is Mini ADSS ASU optic fiber cable?

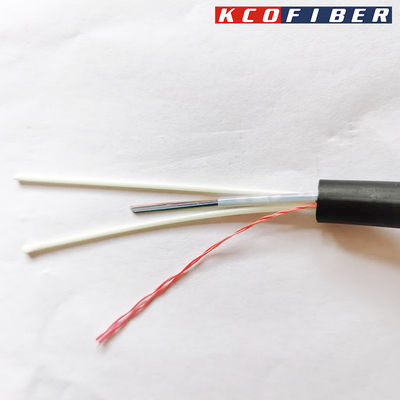

ASU Optic Fiber Cable / Mini ADSS Fiber Optic Cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube. The optic fiber cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. And two embedded FRP or metallic wire strength members provide desire tension.
ASU optic fiber cable is mini outdoor fiber optic cable, use for telecom project, with long span and econimic price, it is widely using to replace the less fiber count ofr ADSS cable to save more cost.
ASU fiber optic cable is available in single mode and multimode fiber. Normally use for 2fo, 4fo, 8fo, 12fo or 24fo.

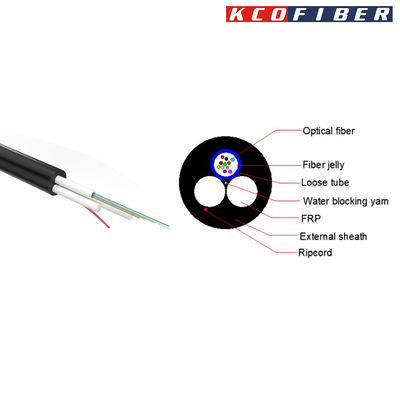

2. Mini ADSS fiber optical structure:
3. Characteristics:
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Loose tube filling compound
100% cable core filling
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Loose tube filling compound
100% cable core filling
4. Applications:
- Adopted to Outdoor.
- Suitable for aerial.
- Long distance and local area network communication.
- FTTH, FTTA project.
5. Cable Mechanical Characteristic:
|
Item |
Contents |
Value |
|
|
Loose tube |
Number |
1 |
|
|
Outer diameter(mm) |
2.1 |
||
|
Thickness |
0.3 |
||
|
Materials |
PBT |
||
|
Water blocking |
Tube filling compound |
||
|
Strength member |
Materials |
FRP |
|
|
Diameter(mm) |
2.0 |
2.5 |
|
|
Number |
2 |
||
|
Water blocking |
Material |
Water blocking yarn |
|
|
Sheath |
Material |
HDPE |
|
|
Color |
Black |
||
|
Rip cord |
Number |
1.2 |
|
|
Cable diameter (mm) Approx |
6.5±0.5 |
7.5±0.5 |
|
|
Cable weight (kg/km) Approx |
45 |
65 |
|
|
Span(m) |
80 |
120 |
|
|
MAT |
690 |
980 |
|
6. Fiber characteristic:
| Fiber style | Unit | MM | |
| condition | nm | 850/1300 | |
| attenuation | dB/km | ≤3.0/1.0 | |
| ---- | |||
| Dispersion | 1550nm | Ps/(nm*km) | Dispersion |
| 1625nm | Ps/(nm*km) | ||
| Bandwidth | 850nm | MHZ.KM | Bandwidth |
| 1300nm | MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 | |
| Zero dispersion slope | nm | ---- | |
| PMD Maximum Individual Fiber | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ---- | |
| Fibre cutoff wavelength λc | nm | ---- | |
| Cable cutoff wavelength λcc | nm | ---- | |
| MFD | 1310nm | um | ---- |
| 1550nm | um | ---- | |
| Numerical Aperture(NA) | 0.200+/-0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.10 | |
7. Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
