All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-M/ADSS-G652D-xxFO |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Cable Type | Mini ADSS |
| Fiber | Single Mode | Cores | 2 Cores To 24 Cores |
| Color | Black | Diameter | 6.5mm |
| Part Number | KCO-M/ADSS-G652D-xxFO |
Product Description

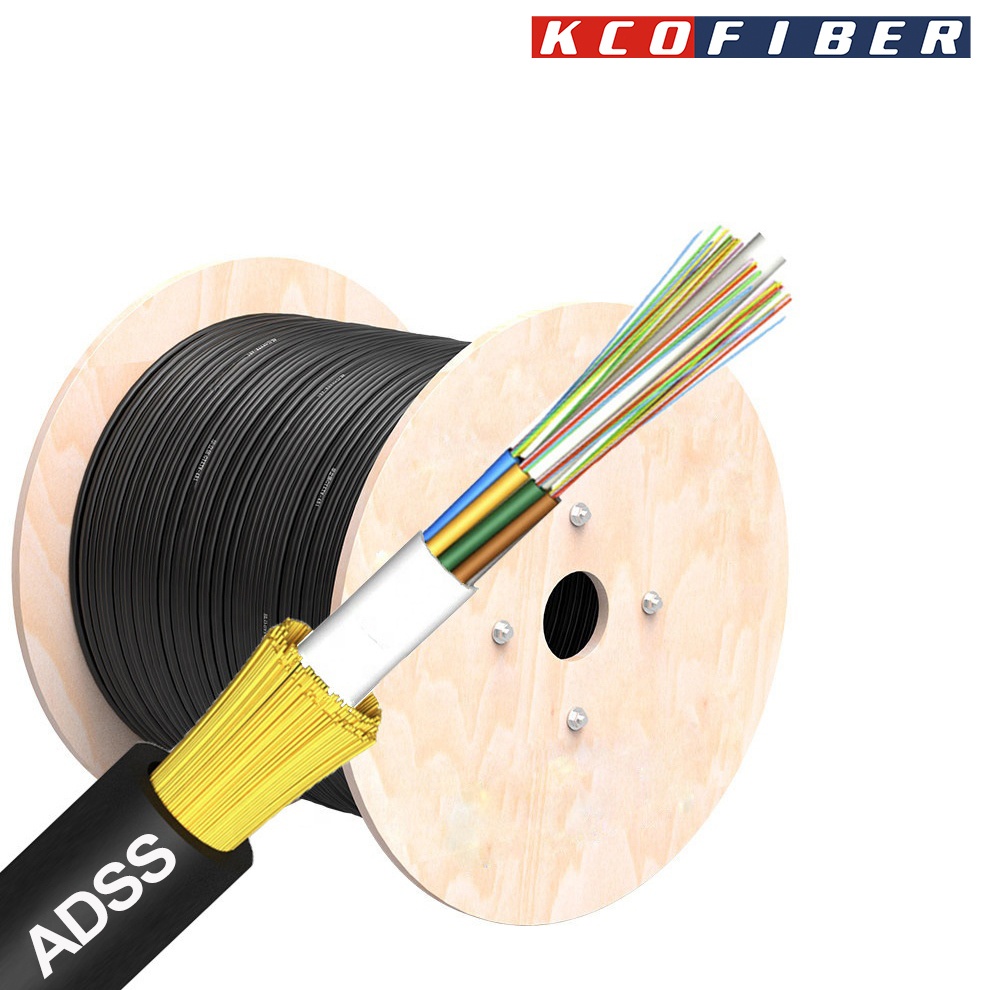

All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
What is ADSS optic fiber outdoor cable?
ADSS fiber optic outdoor cable, or All-Dielectric Self-Supporting cable, is a type of optical fiber cable designed to be strong enough to support itself between structures without needing a conductive metal support or messenger wire to use in outdoor. It's commonly used in overhead installations, especially by electric utilities, along existing power lines.

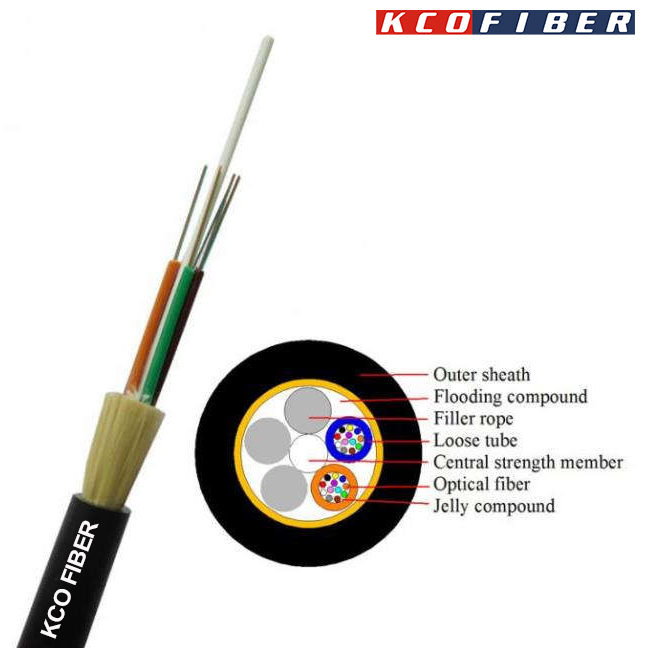

ADSS fiber optical cable structure:
Characteristics:
All-Dielectric Construction: ADSS fiber optic cables are made entirely of non-conductive materials, making them safe for installation near energized power lines and eliminating the need for grounding.
Self-Supporting: They are designed to support their own weight and the forces of wind and ice, negating the need for a separate messenger wire.
High Tensile Strength: ADSS cables utilize materials like aramid fiber yarns to achieve high tensile strength, allowing them to withstand various environmental stresses.
Environmental Resistance: They are designed to resist UV radiation, temperature fluctuations, and moisture, making them suitable for diverse climates.
Long Span Capabilities: ADSS cables can span considerable distances between support structures (poles or towers), reducing the number of supports needed.
Fiber characteristic:
| Fiber style | Unit | MM | |
| condition | nm | 850/1300 | |
| attenuation | dB/km | ≤3.0/1.0 | |
| ---- | |||
| Dispersion | 1550nm | Ps/(nm*km) | Dispersion |
| 1625nm | Ps/(nm*km) | ||
| Bandwidth | 850nm | MHZ.KM | Bandwidth |
| 1300nm | MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 | |
| Zero dispersion slope | nm | ---- | |
| PMD Maximum Individual Fiber | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ---- | |
| Fibre cutoff wavelength λc | nm | ---- | |
| Cable cutoff wavelength λcc | nm | ---- | |
| MFD | 1310nm | um | ---- |
| 1550nm | um | ---- | |
| Numerical Aperture(NA) | 0.200+/-0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.10 | |
Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
