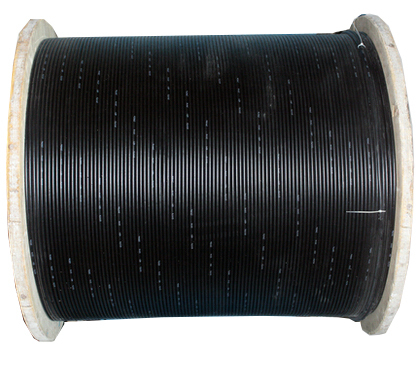

Outdoor Aerial Light Armored GYXTW Fiber Optic Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-GYXTW-xA1 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Cable Type | GYXTW |
| Fiber | Multimode OM2 50/125 | Cores | 2 Cores To 24 Cores |
| Color | Black | Diameter | 7.0mm |
| Part Number | GYXTW-xA1 | ||
| Highlight | outdoor aerial fiber optic cable,armored GYXTW fiber cable,weatherproof fiber optic cable |
||
Product Description
Outdoor Aerial Light Armored GYXTW Fiber Optic Cable
1. What is GYXTW fiber optic cable?
The GYXTW fiber optic cable is a type of outdoor, light-armored fiber optic cable for use in aerial or duct installations.
Its name describes its construction:
- --> GY for outdoor use,
- --> X for a central loose tube structure,
- --> T for a filled/water-blocking structure,
- --> W for a steel polyethylene bonded sheath with steel wires for armor.
GYXTW fiber optic cable is an outdoor use fiber loose tube cable for duct, aerial and direct buried applications. With water-blocking materials filled, ensure the compactness and longitudinal water-blocking performance.

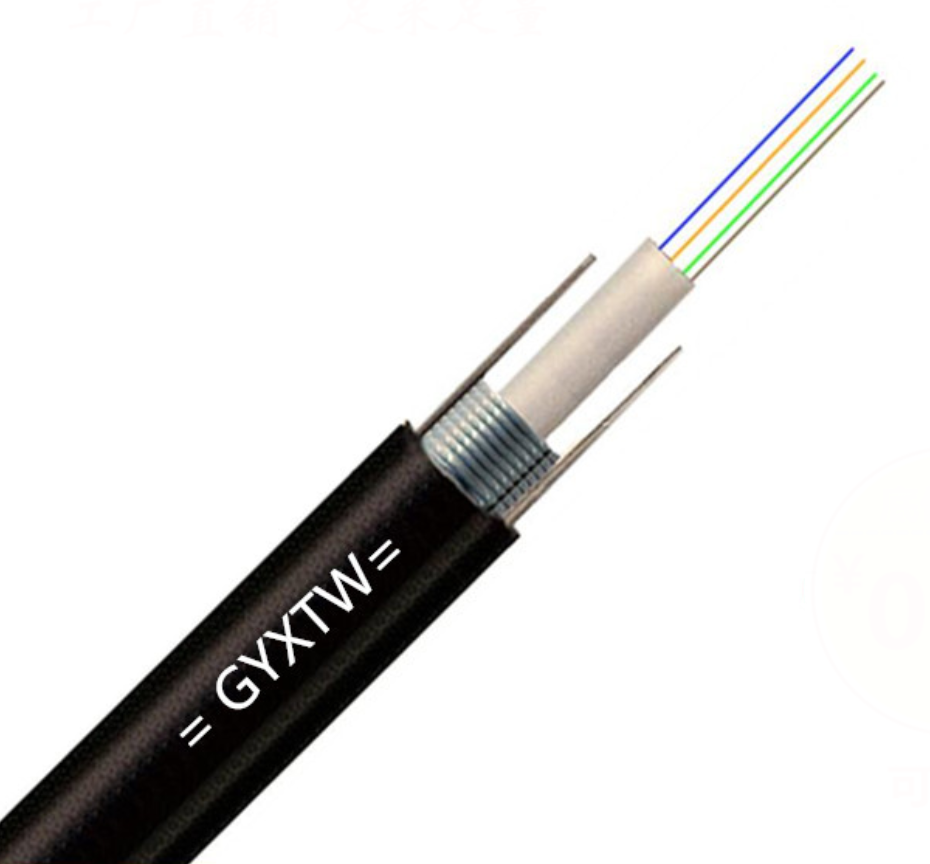

2. Construction:
3. Characteristics:
- Steel-wire parallel member, filler protect tube fiber steel tape armored.
- Excellent mechanical and environmental performance.
- Compact structure, light weight can be installed conveniently and operated simply.
4. Applications:
- Adopted to Outdoor distribution.
- Suitable for aerial, pipeline laying method.
- Long distance and local area network communication.
5. Cable Mechanical Characteristic:
| Fiber number | Cable diameter | Weight | ||||
| 1~24 |
|
|||||
| Temperature range | -40°C to +70°C | |||||
| Min Bending Radius(mm) | Long term | 10D | ||||
| Min Bending Radius(mm) | Short term | 20D | ||||
| Min allowable Tensile Strength(N) | Long term | 1200 | ||||
| Min allowable Tensile Strength(N) | Short term | 1500 | ||||
| Operation temperature | -40°C+70°C | |||||
| Installation temperature | -20°C+60°C | |||||
| Storage temperature | -40°C+70°C | |||||
6. Fiber characteristic:
| Fiber style | Unit | MM | |
| condition | nm | 850/1300 | |
| attenuation | dB/km | ≤3.0/1.0 | |
| ---- | |||
| Dispersion | 1550nm | Ps/(nm*km) | Dispersion |
| 1625nm | Ps/(nm*km) | ||
| Bandwidth | 850nm | MHZ.KM | Bandwidth |
| 1300nm | MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 | |
| Zero dispersion slope | nm | ---- | |
| PMD Maximum Individual Fiber | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ---- | |
| Fibre cutoff wavelength λc | nm | ---- | |
| Cable cutoff wavelength λcc | nm | ---- | |
| MFD | 1310nm | um | ---- |
| 1550nm | um | ---- | |
| Numerical Aperture(NA) | 0.200+/-0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.10 | |
7. Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- - International express such as UPS, TNT, DHL, etc
- - Internatioal air: CA, AA, EA, etc
- - By sea
