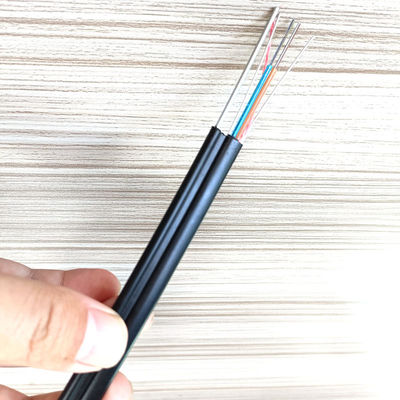

Self-supporting Single Mode Multimode Stranded Loose Tube Outdoor Fiber Optic Cable GYTC8S Aerial Fiber Optic Cable

  • Self-supporting Single Mode Multimode Stranded Loose Tube Outdoor Fiber Optic Cable GYTC8S Aerial Fiber Optic Cable
  • Self-supporting Single Mode Multimode Stranded Loose Tube Outdoor Fiber Optic Cable GYTC8S Aerial Fiber Optic Cable
  • Self-supporting Single Mode Multimode Stranded Loose Tube Outdoor Fiber Optic Cable GYTC8S Aerial Fiber Optic Cable
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTC8S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 1km~5km Each Roll Cable Type GYTC8S
Fiber Single Mode, Multimode Cores 2 Cores To 144 Cores
Color Black Diameter 9.0mm
Part Number GYTC8S-xA1
Highlight

Stranded Loose Tube Aerial Cables

,

8Fig Aerial Cables

,

Self-supporting Aerial Cables
Leave a Message
Product Description
Product Overview

The GYTC8S is a typical self-supporting outdoor fiber optic cable designed for aerial installation. Its metallic strength member is composed of stranded wires, which serve as the supporting part, and is completed with a PE sheath to form a figure-8 structure. The cable features corrugated steel tape armoring and a PE outer sheath, providing excellent crush resistance.

It is suitable for installation in aerial environments and is used for long-distance and LAN communication systems.

Construction

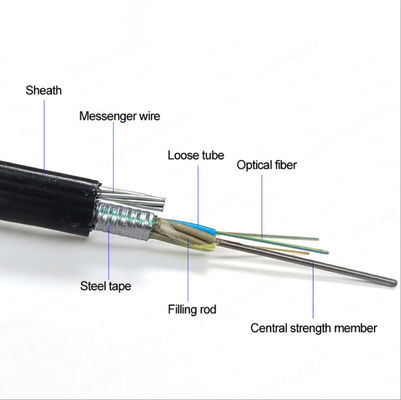

GYTC8S figure-8 self-supporting aerial fiber optic cable cross-section showing stranded wire strength member, loose tube, corrugated steel tape armor, and PE outer sheath
Key Features
  • Small cable diameter with figure-8 structure
  • Self-supporting stranded wires for easy installation
  • Excellent mechanical and environmental performance
  • Low dispersion and attenuation
  • Steel-wire strength member ensures high tensile strength
  • Corrugated steel tape and PE outer sheath ensure crush resistance
  • Water blocking system to improve waterproof ability
Applications
  • Adopted for outdoor distribution
  • Suitable for aerial installation
  • Long-distance and local area network (LAN) communication
Fiber Characteristics
Parameter Unit Specification
Fiber Style — MM (Multimode)
Condition nm 850 / 1300
Attenuation dB/km ≤3.0 / 1.0
Dispersion (1550 nm) Ps/(nm·km) Dispersion
Dispersion (1625 nm) Ps/(nm·km) —
Bandwidth (850 nm) MHz·km Bandwidth
Bandwidth (1300 nm) MHz·km —
Zero Dispersion Wavelength nm ≥1295, ≤1320
Zero Dispersion Slope nm —
PMD Maximum Individual Fiber — ≤0.11
PMD Design Link Value Ps(nm²·km) —
Fibre Cutoff Wavelength λc nm —
Cable Cutoff Wavelength λcc nm —
MFD (1310 nm) um —
MFD (1550 nm) um —
Numerical Aperture (NA) — 0.200 ± 0.015
Step (mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10
Fiber Color Code
No. Color No. Color
1 Blue 7 Red
2 Orange 8 Black
3 Green 9 Yellow
4 Brown 10 Violet
5 Grey 11 Pink
6 White 12 Aqua
OEM / ODM Service

We offer full OEM and ODM services. If you would like to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — we can accommodate your requirements. Our OEM and ODM service is always ready to assist.

Packing

According to standard export packing:

  • Carton box
  • Wooden box
  • Wooden pallet
Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
