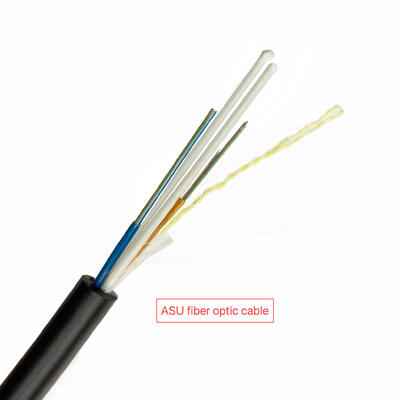

Aerial Overhead Fiber Optic Cable 80M 120M Span USU Optical Fiber Cable 6fo 12fo 24fo / Mini ADSS Cable

  • Aerial Overhead Fiber Optic Cable 80M 120M Span USU Optical Fiber Cable 6fo 12fo 24fo / Mini ADSS Cable
  • Aerial Overhead Fiber Optic Cable 80M 120M Span USU Optical Fiber Cable 6fo 12fo 24fo / Mini ADSS Cable
  • Aerial Overhead Fiber Optic Cable 80M 120M Span USU Optical Fiber Cable 6fo 12fo 24fo / Mini ADSS Cable
  • Aerial Overhead Fiber Optic Cable 80M 120M Span USU Optical Fiber Cable 6fo 12fo 24fo / Mini ADSS Cable
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-M/ADSS-G652D-xxFO
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~3km Each Roll Cable Type Mini ADSS
Fiber Single Mode Cores 2 Cores To 24 Cores
Color Black Diameter 6.5mm
Part Number KCO-M/ADSS-G652D-xxFO
Highlight

Aerial fiber optic cable with warranty

,

Overhead ADSS fiber cable 80M

,

USU optical fiber cable 6fo
Leave a Message
Product Description
Aerial Overhead Fiber Optic Cable 80M-120M Span
The ASU Fiber Optic Cable (Aerial Self-Supporting Unit) is engineered for outdoor aerial distribution networks where a lightweight, non-metallic solution is required. As an All-Dielectric cable, the ASU eliminates the need for grounding and is immune to electromagnetic interference, making it the perfect choice for installation alongside power lines on utility poles.
Key Features
  • Available in 6FO, 12FO, 24FO configurations and Mini ADSS Cable options
  • Designed for spans ranging from 80m to 120m with maximum span over 1700 meters
  • Lightweight, non-metallic construction eliminates grounding requirements
  • Immune to electromagnetic interference
  • Cost-effective alternative to heavy-duty ADSS cables
  • Small size and light weight for reduced ice and wind loads
  • Can be installed without shutting off power

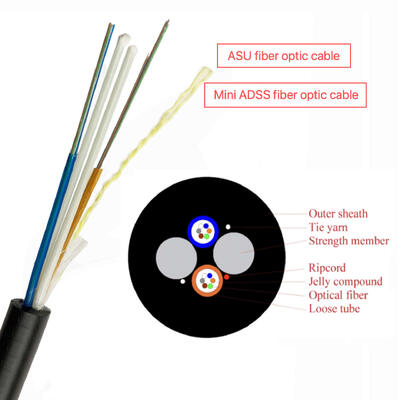

Cable Structure
Aerial Overhead Fiber Optic Cable 80M 120M Span USU Optical Fiber Cable 6fo 12fo 24fo / Mini ADSS Cable 0
The ASU fiber optic cable structure is optimized to withstand wind load and ice weight without sagging:
  • Central Strength Member (FRP): Solid Fiber Reinforced Plastic rod providing high tensile strength while keeping the cable completely non-metallic
  • Loose Tube Technology: PBT loose tubes containing optical fibers (up to 144 cores) stranded around central member with water-blocking jelly protection
  • Rip Cord: Included for easy jacket stripping during termination
  • Outer Sheath (PE): UV-stabilized High-Density Polyethylene jacket protects against harsh sunlight, abrasion, and environmental weathering
Applications
  • Telecommunications: Backbone networks, connecting central offices to distribution points
  • Access Networks: Last-mile connectivity for homes and businesses
  • Data Centers & LANs: High-speed connections within campuses or buildings
  • Industrial & Security: Connecting control systems or surveillance cameras
  • Outdoor deployment suitable for aerial and pipeline laying methods
  • Long distance and local area network communication
Technical Specifications
Mechanical Characteristics
Item Contents Value
Loose tube Number 1
Outer diameter (mm) 2.1
Thickness 0.3
Materials PBT
Water blocking Tube filling compound
Strength member Materials FRP
Diameter (mm) 2.0 | 2.5
Number 2
Water blocking Material Water blocking yarn
Sheath Material HDPE
Color Black
Rip cord 1.2
Cable diameter (mm) Approx 6.5±0.5 | 7.5±0.5
Cable weight (kg/km) Approx 45 | 65
Span (m) 80 | 120
MAT 690 | 980
Fiber Characteristics
Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0
Dispersion 1550nm Ps/(nm*km) Dispersion
Bandwidth 850nm MHZ.KM Bandwidth
Zero dispersion wavelength nm ≧ 1295, ≤1320
PMD Maximum Individual Fiber ≤0.11
Numerical Aperture (NA) 0.200+/-0.015
Step (mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10
Fiber Color Coding
Blue
Orange
Green
Brown
Grey
White
Red
Black
Yellow
Violet
Pink
Aqua
Customization Services
We offer comprehensive OEM and ODM services. You can display your own brand logo on the cable, packaging bag, label, or any other location as required.
Aerial Overhead Fiber Optic Cable 80M 120M Span USU Optical Fiber Cable 6fo 12fo 24fo / Mini ADSS Cable 1

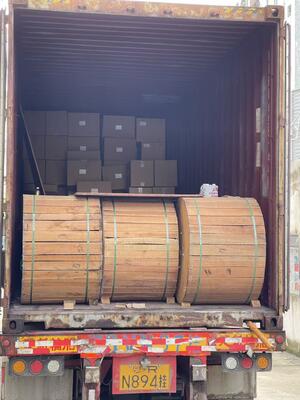

Packaging & Shipping
Packaging
  • Standard export packing
  • Carton box, wooden box, wooden pallet
Shipping Methods
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
