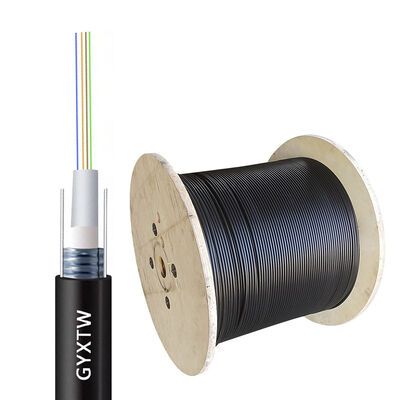

Central Loose Tube Armored GYXTW 6b1 SM Optic Fiber G652D Outdoor Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-GYXTW-6b1 |
| Minimum Order Quantity | 1000m |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Cable Type | GYXTW |
| Fiber | Single Mode G652D | Cores | 6 Fibers |
| Color | Black | Diameter | 7.0mm ± 0.3 |
| Part Number | GYXTW-6b1 | ||
| Highlight | GYXTW armored fiber optic cable,outdoor SM G652D fiber cable,loose tube armored optical cable |
||
Product Description
Central Loose Tube Armored GYXTW 6b1 SM Optic Fiber G652D Outdoor Cable
1. What is GYXTW outdoor cable?
- The GYXTW optic fiber cable is a central loose tube with steel tape armored fiber optic cable for outdoor application.
- The fiber cores can be 2 fibers to 24 fibers. The loose tube is covered with a water blocking compound and a steel tape. The outer sheath is made of high quality black polyethylene (PE).
- The GYXTW optic fiber cable is water proof, small diameter (can do 6.0mm, 6.5mm, 7.0mm and 8.0mm) and light weight.
- The GYXTW optical fiber cable is suitable for outdoor application such as aerial, duct or direct burial of digital transmission communication systems.
- The structure of GYXTW cable:
+ Strength member: This are two parallel high-strength steel wire, providing mechanical support and preventing the fiber optic cable from stretching under tension.
+ Loose tubes: The loose tube are placed around the central strength member, each containing one or more optical fiber. These tubes help to protect the optical fiber from moisture, physical damage, and other environmental factors.
+ Colord optical fiber core: The core component of the fiber optic cable, optical fiber transmit data in the form of light signals.
+ Filling compound: A gel like substance fills the space between the loose tubes and the central strength member, helping to cushion the optical fiber against physical stress and protect them from moisture and water penetration.
+ Steel tape armored: Two layers of steel tape are wrapped around the fiber optic cable, providing additional mechanical protection against crushing, impact, and other external forces.
+ Outer sheath: The entire fiber optic cable is covered with a polyethylene (PE) outer sheath, which offers resistance against abrasion, weathering, and other environmental factors.

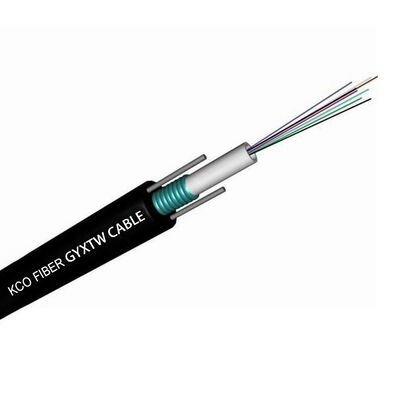

2. GYXTW outdoor cable structure:
3. Technical Data:
|
Item |
Specification |
|
Cable type |
KCO-GYXTW |
|
Application |
Outdoor (Aerial, duct, direct burial, etc) |
|
Fiber count |
6 fibers, 6 cores (6b1) |
|
Fiber type |
SM G652D (or customized) |
|
Cable Dia. |
7.0mm ± 0.3 (or customized) |
|
Cable out sheath |
HDPE (or customized) |
|
Strength member |
Steel wire |
|
Crush Resistance |
High (due to corrugated steel tape) |
|
Water Blocking |
Jelly-filled tube + water-blocking material |
4. Applications:
+ GYXTW optical fiber cable commonly used in telecommunication networks as both backbone and distribution networks, as well as in CATV networks to deliver video, internet, and telephone services to customers.
+ GYXTW fiber optical cable is also used in security and surveillance applications to transmit high-resolution video footage over long distances, in industrial automation applications to connect sensors and other devices in harsh environments, and in power utilities to monitor electricity transmission and distribution systems.
5. Cable Mechanical Characteristic:
| Fiber number | Cable diameter | Weight | ||||
| 1~24 |
|
|||||
| Temperature range | -40°C to +70°C | |||||
| Min Bending Radius(mm) | Long term | 10D | ||||
| Min Bending Radius(mm) | Short term | 20D | ||||
| Min allowable Tensile Strength(N) | Long term | 1200 | ||||
| Min allowable Tensile Strength(N) | Short term | 1500 | ||||
| Operation temperature | -40°C+70°C | |||||
| Installation temperature | -20°C+60°C | |||||
| Storage temperature | -40°C+70°C | |||||
6. Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

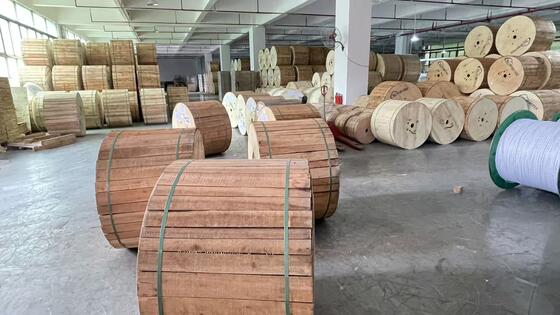

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
