Single Mode Ultra Low Loss MPO-16 Patch Cable MTP-16 Trunk Cable with Polarity A B C

  • Single Mode Ultra Low Loss MPO-16 Patch Cable MTP-16 Trunk Cable with Polarity A B C
  • Single Mode Ultra Low Loss MPO-16 Patch Cable MTP-16 Trunk Cable with Polarity A B C
  • Single Mode Ultra Low Loss MPO-16 Patch Cable MTP-16 Trunk Cable with Polarity A B C
  • Single Mode Ultra Low Loss MPO-16 Patch Cable MTP-16 Trunk Cable with Polarity A B C
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPOA-MPOA-12fo-LSZH-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector MPO/APC Fiber OS1
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 9/125
Fiber Count 8fibers, 12 Fibers, 24 Fibers Color Yellow
Highlight

Single Mode MPO-16 fiber patch cable

,

Ultra Low Loss MTP-16 trunk cable

,

16fibers optical cable Polarity A B C
Leave a Message
Product Description
Product Description

KCO Fiber factory directly sells MPO-16 Multi-fiber Patch Cable / MTP-16 APC 16-fiber Optical Fiber Trunk Cable.

  • MPO-16 APC trunk cable is a high-density fiber optic cable used to link network panels over long distances with high transfer speed.
  • MPO-16 APC / MTP-16 APC Trunk Cables are used to link multiple fibers between patch panels.
  • They have MPO-16 APC / MTP-16 APC connectors on both ends.
  • The MPO/APC connector (MTP-16 APC connector) termination is an 8-degree angled connector.
  • Available in Elite IL (Ultra Low Loss) or Standard IL.
  • The trunk cable connection methods available: Method A, Method B, Method C.
MPO-16 APC (MTP-16 APC) Trunk Cable Structure Options

Option 1: MPO-16 APC connector + mini cable SM G657A1 + MPO-16 APC connector

Option 2: MTP-16 APC connector + mini cable SM G657A1 + MTP-16 APC connector

MPO-16 APC and MTP-16 APC trunk cable structure diagram showing connector and mini cable SM G657A1 configuration
Polarity Method: Type A, Type B, Type C
  • Type A (Straight-Through): Fiber 1 on one end goes to Fiber 1 on the other, Fiber 2 to Fiber 2, and so on. It uses a "Key-Up to Key-Down" adapter. Because it maintains a straight-through path, it requires an opposite (pair-flipped) method somewhere else in the link (usually at the cassettes) to correctly swap Tx and Rx.
  • Type B (Flipped/Reversed): The fiber array is entirely reversed. Fiber 1 at one end connects to Fiber 12 at the other, Fiber 2 to Fiber 11, and so forth. It uses "Key-Up to Key-Up" adapters.
  • Type C (Pairwise Swapped): The fibers are swapped in adjacent pairs. Fiber 1 connects to Fiber 2, Fiber 3 to Fiber 4, etc. It uses "Key-Up to Key-Down" adapters. This type is primarily used for converting MPO to duplex LC systems.
Diagram illustrating MPO-16 polarity methods Type A straight-through, Type B flipped, and Type C pairwise swapped fiber configurations
Product Detail

Single Mode Ultra Low Loss MPO-16 Multi-fiber Patch Cable / MTP-16 APC 16-fiber Optical Fiber Trunk Cable — Polarity A, B, C

  • Connector side A: MPO-16 / MTP-16
  • Connector side B: MPO-16 / MTP-16
  • Fiber type: Single mode G657A1 / G657A2
  • Fiber count: 16F
  • Cable diameter: 3.0mm
  • Cable outer sheath material: LSZH, PVC, OFNR
  • Cable color: Yellow (customized)
  • Polarity: Customized
  • IL: Ultra Low Loss (0.35dB)
  • RL: 55dB
  • Cable length: Customized
  • 100% factory tested before shipment.
  • Test report comes with each piece.
  • OEM service: Available
  • Packing: 1pc/bag
Single mode ultra low loss MPO-16 multi-fiber patch cable with MTP-16 APC connectors and yellow LSZH jacket
Applications
  • Data Processing networks
  • AI network
  • iCloud data center
  • High-Speed Transceiver Upgrades
  • Passive fiber optic Telecommunication networks (PON)
  • WAN / LAN
  • Test Equipment
  • FTTx (FTTH, FTTO, FTTB, FTTA, ...)
  • High speed transport data center such as metro, high-speed railway, light railway, etc.
Product Photos

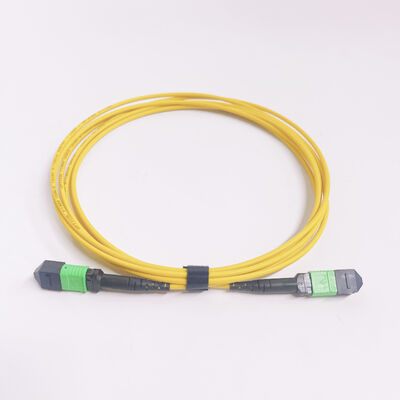

MPO-16 APC multi-fiber trunk cable assembly with 16 fibers and ultra low loss connectors

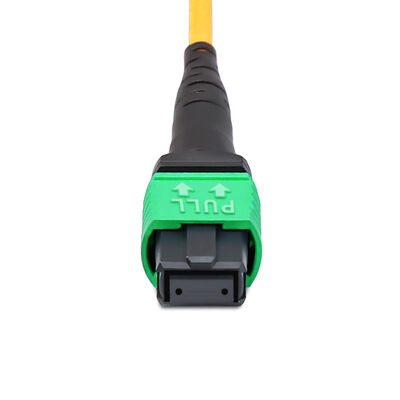

Close-up view of MPO-16 APC MTP-16 APC connector end face and yellow single mode fiber cable
Specifications
Parameters Standard Fiber Cable Assemblies
Fiber Type SM (G.657A)
Jacket Materials LSZH / OFNR / PVC
Connector Type MPO APC female / male
Ferrule Materials Glass-filled polymer
Testing Wavelengths 1310±30 / 1550±30nm
Insertion Loss IL (dB) ≤ 0.35dB (ultra low loss)
≤ 0.65dB (standard loss)
Return Loss RL (dB) ≥ 55dB (APC)
Exchangeability ≤ 0.2dB
Cable Assemblies Trunk cable
Operating Temperature (°C) -10 ~ +70
Storage Temperature (°C) -40 ~ +85
Package 1 unit/bag

*All values specified are with connectors.

Packing
Standard export packing for MPO-16 fiber optic trunk cables including carton box, wooden box, and pallet
OEM / ODM Service

If you want to show your own brand LOGO on the goods such as cable, package bag, label, or anywhere else, it is no problem. Our OEM and ODM service is always ready to do it.

Packing & Shipping
Packing
  • According to Standard Export Packing.
  • Carton box, wooden box, pallet.
  • Standard marking.
Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea.
