Multimode OM3 48fibers Outdoor Fiber Optic Cable GYTA for Duct Underground Pipeline

  • Multimode OM3 48fibers Outdoor Fiber Optic Cable GYTA for Duct Underground Pipeline
  • Multimode OM3 48fibers Outdoor Fiber Optic Cable GYTA for Duct Underground Pipeline
  • Multimode OM3 48fibers Outdoor Fiber Optic Cable GYTA for Duct Underground Pipeline
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTA-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~5km Each Roll Cable Type GYTA
Fiber Single Mode G652D Cores 2 Cores To 96 Cores
Color Black Diameter 9.0mm
Part Number GYTA-xA1 Manufacturer Kocent Optec Limited
Origin Guangdong, China
Highlight

OM3 outdoor fiber optic cable

,

GYTA duct fiber optic cable

,

48fibers underground pipeline cable
Leave a Message
Product Description

Multimode OM3 48fibers Outdoor Fiber Optic Cable GYTA for Duct Underground Pipeline

1. What is GYTA fiber optic cable?

  • GYTA cable is an outdoor armored fiber optic cable built with gel-filled loose tubes and an aluminum tape barrier for underground ducts, pipeline and aerial lines, used for high-speed data transmission.
  • Upto 96 fibers.
  • The name GYTA uses a standard industry code that describes how the cable is built:
GY: Outdoor communications cable (general use for duct, underground, pipeline).
TA: Aluminum-polyethylene tape (APL) armored with a PE outer sheath, offering moisture resistance and crush protection.
Loose Tube Design: Fibers sit inside gel-filled plastic tubes twisted around a central metallic strength member to protect against water and stress.
  • Key feature:
- Multi mode OM3 fiber (offering OM3-150 and OM3-300).
- Water Resistance: Loose tubes and core gaps are filled with a waterproof gel to stop moisture damage.
- Aluminum Armored: A lightweight aluminum tape layer protects against moisture, rust, and minor rodent damage.
- PE Outer Jacket: A strong PE outer sheath withstands sunlight, bad weather, and physical stress.
- Central Strength Member: A steel wire sits in the middle to keep the cable stable and strong when pulled.

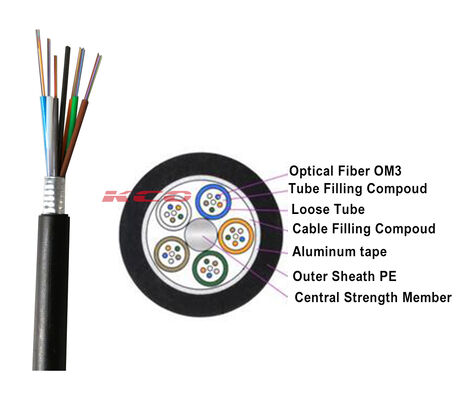

2. GYTA Cable Structure:

Multimode OM3 48fibers Outdoor Fiber Optic Cable GYTA for Duct Underground Pipeline

3. GYTA Cable Application:

- Outdoor FTTx Structured Cabling: use for FTTH, FTTB, FTTO, FTTA, FTTC outdoor tructurerd cabling.
- Campus Backbones: Connecting two different buildings within a school, hospital, or corporate campus that require high bandwidth.
- Outdoor-to-Indoor Links: Bridging external telecom conduits into a local area network (LAN) or data center entry point.
- Industrial & Harsh Settings: Running high-speed data lines across outdoor industrial plants or metro setups where the cable faces moisture and mechanical stress.
- High-speed data transmission.
- High-speed data across outdoor or harsh environments over medium-to-short distances

4. Standard

  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTA-2~12

8~12

1

4

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-14~18

14~18

3

2

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-20~24

20~24

4

1

9.5±0.5

110

1000/3000

1000/3000

10D/20D

GYTA-26~36

26~36

4

1

9.5±0.5

120

1000/3000

1000/3000

10D/20D

GYTA-38~48

38~48

4

1

10.0±0.5

140

1000/3000

1000/3000

10D/20D

GYTA-50~60

50~60

5

0

10.8±0.5

150

1000/3000

1000/3000

10D/20D

GYTA-62~72

62~72

6

0

11.9±0.5

170

1000/3000

1000/3000

10D/20D

GYTA-74~84

74~84

7

1

12.5±0.5

180

1000/3000

1000/3000

10D/20D

GYTA-86~96

86~96

8

0

13.6±0.5

210

1000/3000

1000/3000

10D/20D

GYTA-98~108

98~108

9

1

14.5±0.5

230

1000/3000

1000/3000

10D/20D

GYTA-110~120

110~120

10

0

14.8±0.5

240

1000/3000

1000/3000

10D/20D

GYTS-122~144

122~132

11

1

15.4±0.5

260

1000/3000

1000/3000

10D/20D

GYTA-146~216

146~216

12

0

19.8±0.5

395

1000/3000

1000/3000

10D/20D

GYTA-218~288

218~288

12

0

20.8±0.5

470

1000/3000

1000/3000

10D/20D

6. Fiber characteristic

Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Multimode OM3 48fibers Outdoor Fiber Optic Cable GYTA for Duct Underground Pipeline

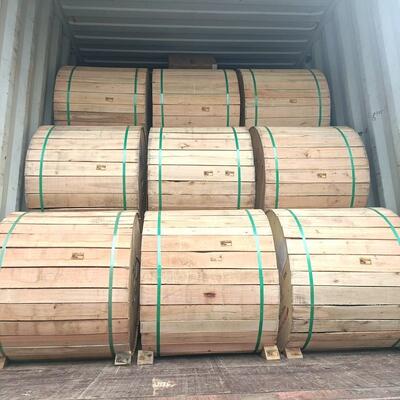

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
