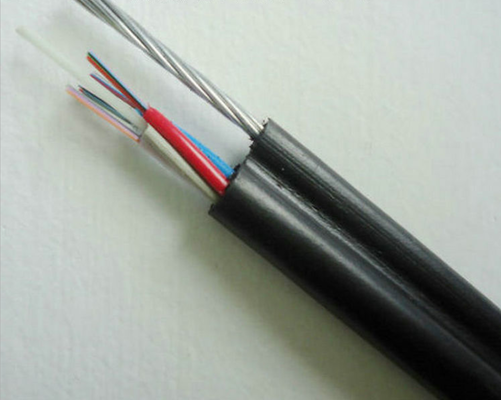

Non-metallic High Tension 2 to 144 Fibers Figure 8 Fiber Optic Cable Self-supporting Aerial Fiber Optic Cable

  • Non-metallic High Tension 2 to 144 Fibers Figure 8 Fiber Optic Cable Self-supporting Aerial Fiber Optic Cable
  • Non-metallic High Tension 2 to 144 Fibers Figure 8 Fiber Optic Cable Self-supporting Aerial Fiber Optic Cable
  • Non-metallic High Tension 2 to 144 Fibers Figure 8 Fiber Optic Cable Self-supporting Aerial Fiber Optic Cable
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYXTW-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~3km Each Roll Cable Type GYXTW
Fiber Multimode OM2 50/125 Cores 2 Cores To 24 Cores
Color Black Diameter 7.0mm
Part Number GYXTW-xA1
Highlight

Non-metallic Figure 8 Fiber Optic Cable

,

High Tension Self-supporting Aerial Fiber Optic Cable

,

2 to 144 Fibers Figure 8 Fiber Optic Cable
Leave a Message
Product Description
Product Overview

The GYFTC8Y Non-metallic Self-supporting Outdoor Figure-8 Fiber Optic Cable is designed for direct aerial deployment without the need for additional messenger wires. Its integrated figure-8 cross-section combines the optical transmission unit and the load-bearing galvanized steel messenger into a single unified PE sheath, making it a cost-effective solution for overhead fiber network construction.

Construction Details
  • Optical Unit: 2 to 144 fibers (standard G.652D single-mode) are housed in high-modulus PBT loose tubes, fully filled with water-blocking gel to protect the fibers from moisture and mechanical damage.
  • Central Strength Member: A fully non-metallic FRP (Fiber Reinforced Plastic) rod runs through the cable core, eliminating metal components inside the transmission section to deliver excellent anti-electromagnetic interference performance.
  • Integrated Figure-8 Structure: The stranded cable core, wrapped with water-blocking tape, is co-extruded with the galvanized steel messenger into a single black UV-resistant polyethylene (PE) outer sheath, forming the iconic figure-8 profile.

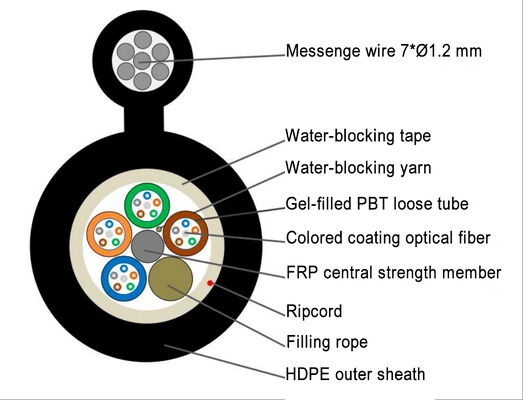

Cross-section diagram of GYFTC8Y non-metallic self-supporting figure-8 outdoor fiber optic cable showing loose tubes, FRP central strength member, and integrated steel messenger wire
Key Features
  • Superb Mechanical Properties: Long-term allowable crushing force reaches 300N/10cm, with a short-term value of 1000N/10cm. The static minimum bending radius is 10 times the cable diameter, and the dynamic bending radius is 20 times the diameter.
  • Wide Temperature Adaptability: Operates reliably across -40℃ to +70℃, fully adapting to harsh outdoor climate conditions for long-term field service.
  • Outstanding Transmission Performance: Typical attenuation at 1310nm is ≤0.36dB/km and at 1550nm is ≤0.22dB/km, meeting the low-loss requirements for long-haul and metro network transmission.
  • Easy and Low-Cost Installation: The pre-integrated high-tensile steel messenger removes the need for separate messenger wire deployment, drastically cutting aerial construction time and total project cost.
Compliance Standards

The GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

Cable Mechanical Characteristics
Items Specifications
Fiber Count 4–48 fibers
Colored Coating Fiber Dimension: 250µm ±15µm
Color: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua
Loose Tube Dimension: 2.0 ±0.2 mm
Material: PBT
Color: Natural
Messenger Wire Steel Wire Diameter: 7×1.0 mm
Material: Phosphating steel strand
Outer Jacket Dimension: 4–12 fibers: 7.0×13.5 mm ±0.2 mm
24 fibers: 9.0×17.0 mm ±0.5 mm
48 fibers: 9.5×17.5 mm ±0.5 mm
Outer Jacket Material HDPE
Outer Jacket Color Black
Fiber Characteristics
Fiber Style Unit MM
Condition nm 850 / 1300
Attenuation dB/km ≤3.0 / 1.0
Dispersion (1550 nm) ps/(nm*km) --
Dispersion (1625 nm) ps/(nm*km) --
Bandwidth (850 nm) MHz*km --
Bandwidth (1300 nm) MHz*km --
Zero Dispersion Wavelength nm ≥1295, ≤1320
Zero Dispersion Slope nm --
PMD Maximum Individual Fiber -- ≤0.11
PMD Design Link Value ps/(nm²*km) --
Fibre Cutoff Wavelength λc nm --
Cable Cutoff Wavelength λcc nm --
MFD (1310 nm) µm --
MFD (1550 nm) µm --
Numerical Aperture (NA) -- 0.200 ± 0.015
Step (mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10
Fiber Color Coding
  • 1Blue
  • 2Orange
  • 3Green
  • 4Brown
  • 5Grey
  • 6White
  • 7Red
  • 8Black
  • 9Yellow
  • 10Violet
  • 11Pink
  • 12Aqua
OEM / ODM Service

We offer full OEM and ODM support. If you wish to display your own brand logo on the goods—including the cable, packaging bag, label, or any other location—we can accommodate your requirements. Our OEM and ODM service is always ready to assist.

Packing & Shipping
Packing

Standard export packing is used: carton box, wooden box, or wooden pallet, according to your requirements.

Shipping
  • International express: UPS, TNT, DHL, etc.
  • International air freight: CA, AA, EA, etc.
  • By sea.
