2~288 Fibers SM G657 Figure 8 Aerial Optical Fiber Cable with 7*1.0 Strength Member Self-Supporting GYTC8Y

  • 2~288 Fibers SM G657 Figure 8 Aerial Optical Fiber Cable with 7*1.0 Strength Member Self-Supporting GYTC8Y
  • 2~288 Fibers SM G657 Figure 8 Aerial Optical Fiber Cable with 7*1.0 Strength Member Self-Supporting GYTC8Y
  • 2~288 Fibers SM G657 Figure 8 Aerial Optical Fiber Cable with 7*1.0 Strength Member Self-Supporting GYTC8Y
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTC8S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 1km~5km Each Roll Cable Type GYTC8S
Fiber Single Mode, Multimode Cores 2 Cores To 288 Cores
Color Black Diameter 9.0mm
Part Number GYTC8S-xA1
Highlight

2~288 Fibers Figure 8 Aerial Optical Fiber Cable

,

7*1.0 Strength Member Self-Supporting Fiber Optic Cable

,

SM G657 GYTC8Y Fiber Optic Cable
Leave a Message
Product Description
Product Overview

The GYTC8Y Figure-8 Aerial Optical Fiber Cable is a classic metallic-strength, self-supporting loose-tube outdoor figure-8 fiber optic cable. It is widely deployed for direct aerial installation without requiring a separate messenger wire.

Its integrated "8" cross-section unites the optical transmission unit and the high-tensile galvanized steel messenger in one continuous HDPE outer sheath, making it a cost-efficient, high-reliability workhorse for global telecom aerial network construction.

Cable capacity ranges from 2 fibers up to 288 fibers. Available fiber types include Single Mode G657A1 and Single Mode G657A2.

Production Standard

This cable strictly conforms to mainstream global industry specifications, including YD/T 1155, GB/T 13993, YD/T 901-2018 and the international IEC 60794-1 series standards, ensuring full interoperability with global mainstream fiber network systems.

Construction
  • Optical Unit: 2~288 fibers (standard G.652D, G.657A1 single-mode) are housed in hydrolysis-resistant high-modulus PBT loose tubes, fully filled with specialized water-blocking gel to deliver robust protection for the fibers.
  • Central Strength Member: A solid metallic steel wire runs through the center of the stranded cable core, providing far higher tensile rigidity than non-metallic FRP for long-span aerial scenarios.
  • Integrated Figure-8 Structure: The water-blocking tape wrapped cable core, paired with the high-strength galvanized steel messenger, is co-extruded into a single UV-stabilized black polyethylene (PE) outer sheath, forming the iconic 8-shaped profile.
  • Optional Moisture Barrier: Many variants add an APL (Aluminum-Polyethylene Laminate) layer longitudinally wrapped around the cable core, further boosting moisture resistance for humid outdoor environments.
GYTC8Y figure-8 aerial optical fiber cable cross-section showing the optical unit and galvanized steel messenger in a single black PE sheath
Key Features
  • Small cable diameter with figure-8 structure
  • Self-supporting stranded wires for easy installation
  • Excellent mechanical and environmental performance
  • Low dispersion and attenuation
  • Steel-wire strength member ensures high tensile strength
  • Corrugated steel tape and PE outer sheath ensure crush resistance
  • Water blocking system to improve waterproof ability
Applications
  • Adopted for outdoor distribution
  • Suitable for aerial installation
  • Long-distance and local area network (LAN) communication
Fiber Characteristics
Parameter Unit Specification
Fiber Style -- MM (Multimode)
Condition nm 850 / 1300
Attenuation dB/km ≤3.0 / 1.0
Dispersion (1550 nm) Ps/(nm*km) Dispersion
Dispersion (1625 nm) Ps/(nm*km) --
Bandwidth (850 nm) MHz*km Bandwidth
Bandwidth (1300 nm) MHz*km --
Zero Dispersion Wavelength nm ≥1295, ≤1320
Zero Dispersion Slope nm --
PMD Maximum Individual Fiber -- ≤0.11
PMD Design Link Value Ps(nm²*km) --
Fibre Cutoff Wavelength λc nm --
Cable Cutoff Wavelength λcc nm --
MFD (1310 nm) um --
MFD (1550 nm) um --
Numerical Aperture (NA) -- 0.200 ± 0.015
Step (mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10
Fiber Color Code
No. Color No. Color
1 Blue 7 Red
2 Orange 8 Black
3 Green 9 Yellow
4 Brown 10 Violet
5 Grey 11 Pink
6 White 12 Aqua
OEM / ODM Service

We offer full OEM and ODM services. If you would like to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — we can accommodate your requirements. Our OEM and ODM service is always ready to assist.

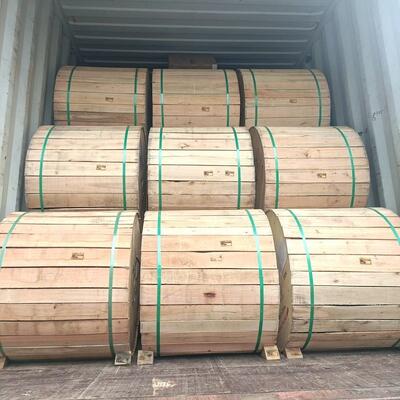

Packing

According to standard export packing:

  • Carton box
  • Wooden box
  • Wooden pallet
Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
