150M Span Single PE Sheath Water-proof ADSS Fiber Optic Cable for All-Dielectric Self-Supporting Aerial Networks

A single sheath ADSS (All-Dielectric Self-Supporting) fiber optic cable is a fully non-metallic aerial fiber optic cable that uses only one outer protective jacket (typically made of PE material) to enclose its core components, distinguishing it from double-sheath ADSS variants that add an extra inner jacket layer.

This 150 m-span single PE sheath ADSS aerial optical cable is a fully non-metallic, outdoor waterproof fiber solution purpose-built for overhead deployment on utility poles and transmission towers. It is optimized for scenarios where typical pole spacing reaches 150 m, eliminating the need for additional support cables and allowing live-line installation without interrupting nearby power grid operations.

The cable is fully compliant with AS/NZS S008, IEC 60794-3-20 and IEEE 1222 industry standards.

It is available with many fiber types, including single mode fiber (SMF) 9/125 G.652D, G.657A1, G.655 and others, or multimode fiber (MMF) 62.5/125 OM1 and 50/125 OM2, OM3, OM4 and OM5.

This single sheath ADSS cable is widely used in 10 kV–110 kV power distribution network communication lines with 150 m typical pole spacing. It is also suitable for lightning-prone mountainous areas, railway communication routes, and suburban FTTH last-mile access networks. Its all-dielectric structure is completely immune to electromagnetic interference, making it an ideal replacement for traditional metallic aerial communication cables and significantly improving the reliability and service life of outdoor overhead fiber links.

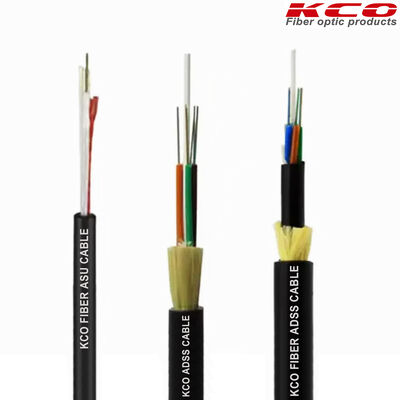

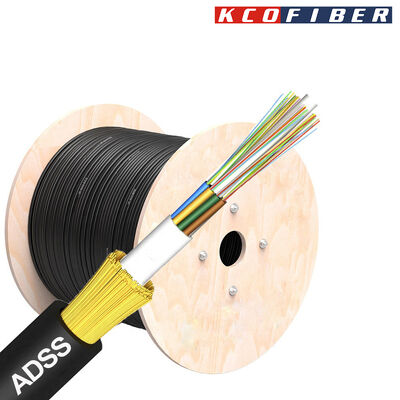

• The 250 μm multimode OM2 50/125 colored optical fibers are inserted into high-modulus PBT loose tubes filled with water-blocking ointment.
• Waterproof Loose Tubes: Thermoplastic PBT tubes house up to 12 ITU-T G.652D/G.657A single-mode fibers each, filled with a low-viscosity, thixotropic, non-melting waterproof gel that is fully compatible with fiber coating materials. This gel completely isolates fibers from moisture, preventing signal attenuation caused by water intrusion.
• A central non-metallic strength member (FRP, Fiber Reinforced Plastic) provides primary tensile support.
• Two layers of high-strength aramid yarn are evenly twisted around the cable core to further enhance tensile performance.
• Single PE Outer Sheath: The outermost layer is a 1.8–2.2 mm thick UV-stabilized black polyethylene (PE) jacket, fully compliant with AS 1049 standard. It resists long-term UV radiation, ozone erosion and temperature fluctuations, and can be upgraded to a special anti-tracking AT PE variant for 110 kV high-voltage electric field environments to avoid electrical corrosion damage.

• High Tension: Rated Tensile Strength (RTS) ranges from 10 kN to 120 kN, with maximum everyday operating tension kept below 1/3 of RTS to ensure fiber strain remains under 0.05%.
• Span Range: 50 m, 80 m, 100 m, 120 m, 150 m, 200 m, 300 m, 500 m.
• Bending Radius: 20× cable diameter during installation; 15× cable diameter under static no-load state.
• Temperature Range: −10 °C to +50 °C for installation; −40 °C to +70 °C for long-term operation and storage.
• Key Advantages: Fully immune to lightning strikes and electromagnetic interference; 30–50% lighter than double-sheath ADSS cables, reducing tower load and installation difficulty.
• Single Outer Sheath: 1.5–2.0 mm thick UV-stabilized black HDPE jacket.

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.

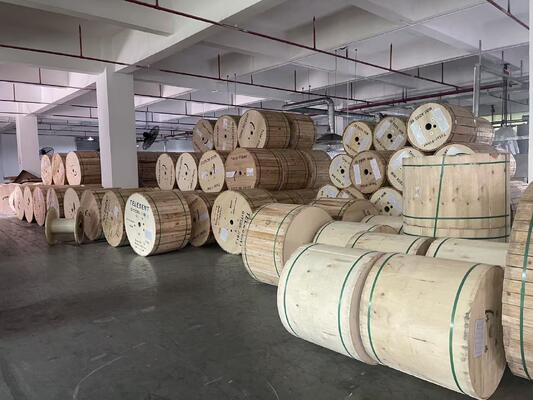

Standard export packing: carton box, wooden box, or wooden pallet.

• International express such as UPS, TNT, DHL, etc.
• International air: CA, AA, EA, etc.
• By sea
