200M Span Anti-UV Double Jacket ADSS Fiber Optic Cable All-Dielectric Self-Supporting Optical Cable for Outdoor Aerial Power Line Networks

  • 200M Span Anti-UV Double Jacket ADSS Fiber Optic Cable All-Dielectric Self-Supporting Optical Cable for Outdoor Aerial Power Line Networks
  • 200M Span Anti-UV Double Jacket ADSS Fiber Optic Cable All-Dielectric Self-Supporting Optical Cable for Outdoor Aerial Power Line Networks
  • 200M Span Anti-UV Double Jacket ADSS Fiber Optic Cable All-Dielectric Self-Supporting Optical Cable for Outdoor Aerial Power Line Networks
  • 200M Span Anti-UV Double Jacket ADSS Fiber Optic Cable All-Dielectric Self-Supporting Optical Cable for Outdoor Aerial Power Line Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ADSS-SS-50-G652D
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 3~5km Each Roll Cable Type ADSS
Fiber Single Mode Cores 2 Cores To 288 Cores
Color Black Diameter 9.0mm
Part Number KCO-ADSS-SS-50-G652D MNF Kocent Optec Limited
Origin Guangdong, China
Highlight

200M Span ADSS Fiber Optic Cable

,

Double Jacket All-Dielectric Self-Supporting Optical Cable

,

Anti-UV Aerial Fiber Optic Cable
Leave a Message
Product Description
Product Overview

The ADSS double jacket cable is a specialized all-dielectric self-supporting (ADSS) fiber optic aerial cable featuring two independent protective sheath layers. It is designed for long-span overhead installation in high-voltage power transmission line environments.

The cable uses a non-metallic FRP (Fiber Reinforced Plastic) central strength member, with optical fibers housed in jelly-filled PBT loose tubes stranded around it.

This 12F to 144F, 200 m span, anti-UV outdoor single mode G652D double jacket ADSS non-metallic optical fiber cable is a fully dielectric self-supporting aerial optical cable. It is purpose-built for long-haul outdoor deployment in power transmission corridors, high-voltage electromagnetic interference zones, lightning-prone regions, rural broadband networks, railway communication lines and outdoor telecom access scenarios.

The design eliminates all metallic conductive components inside the structure and requires no additional messenger wire for overhead installation. This greatly simplifies laying procedures and delivers reliable performance even in harsh open-air environments.

The cable is fully compliant with AS/NZS S008, IEC 60794-3-20 and IEEE 1222 industry standards.

It is available with a wide range of fiber types, including single mode fiber (SMF) 9/125 G.652D, G.657A1 and G.655, as well as multimode fiber (MMF) 62.5/125 OM1 and 50/125 OM2, OM3, OM4 and OM5.

Main Applications
  • High-voltage power transmission corridors
  • Rural broadband and FTTH access networks
  • Long-distance obstacle-crossing aerial routes
  • Smart grid power communication private networks
  • Lightning-prone and strong electromagnetic interference zones
  • New energy base and transportation trunk communication lines

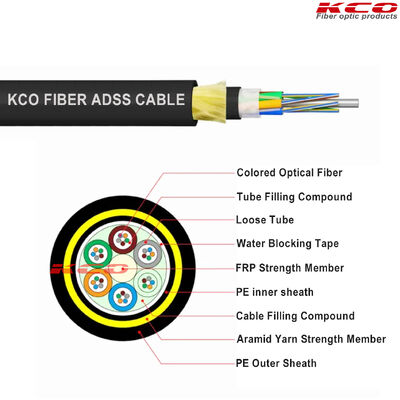

Cable Structure
Double jacket ADSS non-metallic optical fiber cable with FRP central strength member, jelly-filled PBT loose tubes, aramid yarn reinforcement and dual PE outer sheath
Double Sheath ADSS Cable Structure
Cross-section diagram of double sheath ADSS cable showing loose tubes, FRP central strength member, water-blocking tape, aramid yarn, inner sheath and outer sheath layers
Key Advantages
  • The dual-sheath structure drastically improves resistance to mechanical stress, UV radiation, moisture ingress and abrasion, extending service life to over 25 years.
  • It eliminates all metallic components, allowing live-line installation without power shutdown and avoiding electromagnetic interference from nearby high-voltage lines.
  • Light weight and small diameter reduce ice and wind loads on towers, supporting maximum span lengths over 1000 meters.
  • The SZ-stranded loose tube design and built-in ripcords enable quick mid-span fiber access for easy field termination.
200M Span Double Sheath ADSS Cable Technical Data
Parameter Category Item 12 FO 24 FO 48 FO 72 FO 96 FO
Basic Structure Loose Tube Outer Diameter 2.3 mm 2.3 mm 2.5 mm 2.5 mm 2.5 mm
Loose Tube Material PBT PBT PBT PBT PBT
Max Fibers per Tube 6 6 12 12 12
FRP Central Strength Member Diameter 2.4 mm 2.4 mm 2.6 mm 2.6 mm 3.0 mm
Water Blocking Material Water-blocking yarn + water-blocking tape Same Same Same Same
Reinforcement Layer High-modulus aramid yarn (Kevlar) Same Same Same Same
Inner Sheath Thickness 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm
Outer Sheath Material Black PE / AT anti-tracking Same Same Same Same
Mechanical & Physical Nominal Cable Outer Diameter 12.8±0.3 mm 12.8±0.3 mm 13.2±0.3 mm 13.2±0.3 mm 15.0±0.3 mm
Nominal Weight 130 kg/km 128 kg/km 136 kg/km 145 kg/km 178 kg/km
Maximum Allowable Tension (MAT) 3300 N 3300 N 3300 N 3300 N 3300 N
Rated Tensile Strength (RTS) ≥10 kN ≥10 kN ≥10 kN ≥10 kN ≥10 kN
Long-term Crush Resistance 1000 N/100mm 1000 N/100mm 1000 N/100mm 1000 N/100mm 1000 N/100mm
Short-term Crush Resistance 3000 N/100mm 3000 N/100mm 3000 N/100mm 3000 N/100mm 3000 N/100mm
Minimum Static Bending Radius 160 mm 160 mm 165 mm 165 mm 188 mm
Minimum Dynamic Bending Radius 320 mm 320 mm 330 mm 330 mm 375 mm
Environmental & Application Operating Temperature Range -40℃ ~ +65℃ Same Same Same Same
Storage & Transport Temperature -40℃ ~ +70℃ Same Same Same Same
Design Service Life ≥30 years Same Same Same Same
Standard Delivery Length 2 km / custom Same Same Same Same
Recommended Initial Sag 1.5% ~ 3% of span Same Same Same Same
Applicable Voltage Level ≤220kV (AT sheath for >110kV) Same Same Same Same
Optical Performance (G.652.D) 1310nm Attenuation (max) 0.36 dB/km 0.36 dB/km 0.36 dB/km 0.36 dB/km 0.36 dB/km
1550nm Attenuation (max) 0.22 dB/km 0.22 dB/km 0.22 dB/km 0.22 dB/km 0.22 dB/km
Fiber Proof Test Level ≥1% ≥1% ≥1% ≥1% ≥1%
Single Mode Fiber Characteristics
Characteristic Item G.652 (Standard Non-Dispersion-Shifted Fiber) G.657 (Bending-Insensitive Fiber) G.655 (Non-Zero Dispersion-Shifted Fiber)
Core/Cladding Size 9/125 µm 9/125 µm 9/125 µm
Zero-Dispersion Wavelength Near 1310nm; 1550nm band dispersion ~18ps/(nm·km) G.657A: 1300–1420nm; G.657B: no mandatory requirement No fixed zero-dispersion point; maintains non-zero low dispersion in the 1550nm band
1550nm Max Attenuation ≤0.26 dB/km ≤0.20 dB/km (G.657A2) ≤0.25 dB/km
Minimum Bending Radius (1550nm) 30mm, bending loss ≤0.1dB/turn G.657A1: 10mm; G.657A2: 7.5mm, loss ≤0.1dB/turn 30mm, similar to G.652, no special bending optimization
Water Peak Performance G.652C/D eliminates water peak, supports 1260–1625nm full band transmission All models are low-water-peak, full-band transmission Low-water-peak design, optimized for C+L band
Backward Compatibility — Fully compatible with G.652D; no special adjustment required for existing links Poor compatibility; cannot be directly mixed with G.652 for long-distance DWDM links
Core Technical Features The most widely deployed legacy standard globally; low cost, mature process Optimized bending resistance, 1/4~1/2 bending radius of G.652, no extra loss in narrow spaces Suppresses four-wave mixing nonlinear effect; no dispersion compensation needed for 10G+ long-distance transmission
10G Max Transmission Distance 40km (no dispersion compensation) 40km (same as G.652D) 160km+
DWDM System Support Only supports low-density CWDM; cannot carry high-channel-count DWDM Supports CWDM and low-density DWDM Dedicated for long-haul high-density DWDM 40G/100G/400G systems
Main Application Scenarios Metro backbones, access networks, the vast majority of existing outdoor overhead/pipe optical cables FTTH indoor wiring, data center high-density cabling, narrow-space deployment such as corners and wiring ducts Ultra-long-haul trunk lines, cross-provincial optical transmission networks, submarine cable landing sections
Relative Cost Level Lowest Slightly higher than G.652 Highest
Fiber Color Code
Position 1 2 3 4 5 6
Color Blue Orange Green Brown Grey White
Position 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua
OEM / ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.

Custom OEM branding options for ADSS fiber optic cable, including cable printing, packaging bags and labels
Custom OEM/ODM branding available on cable, packaging and labels.

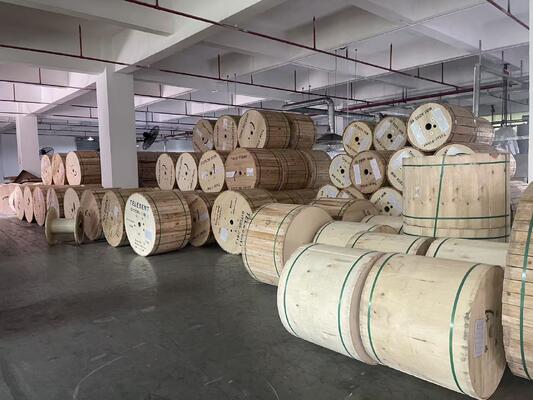

Packing & Shipping
Packing

Standard export packing: carton box, wooden box, or wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
