300m Span Double Sheath Anti-Rodent ADSS Optical Fiber Cable All-Dielectric Self-Supporting Aerial Fiber Optic Cable

  • 300m Span Double Sheath Anti-Rodent ADSS Optical Fiber Cable All-Dielectric Self-Supporting Aerial Fiber Optic Cable
  • 300m Span Double Sheath Anti-Rodent ADSS Optical Fiber Cable All-Dielectric Self-Supporting Aerial Fiber Optic Cable
  • 300m Span Double Sheath Anti-Rodent ADSS Optical Fiber Cable All-Dielectric Self-Supporting Aerial Fiber Optic Cable
  • 300m Span Double Sheath Anti-Rodent ADSS Optical Fiber Cable All-Dielectric Self-Supporting Aerial Fiber Optic Cable
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ADSS-SS-50-G652D
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 3~5km Each Roll Cable Type ADSS
Fiber Single Mode Cores 2 Cores To 288 Cores
Color Black Diameter 9.0mm
Part Number KCO-ADSS-SS-50-G652D MNF Kocent Optec Limited
Origin Guangdong, China
Highlight

300m Span ADSS Optical Fiber Cable

,

Double Sheath All-Dielectric Self-Supporting Cable

,

Anti-Rodent Aerial Fiber Optic Cable
Leave a Message
Product Description
Product Overview

The ADSS double jacket cable is a specialized all-dielectric self-supporting (ADSS) fiber optic aerial cable featuring two independent protective sheath layers. It is designed for long-span overhead installation in high-voltage power transmission line environments.

This 300-meter span double sheath ADSS cable is a non-metallic aerial self-supporting outdoor fiber optic cable. It is specifically optimized for overhead deployment on 110kV–220kV high-voltage power lines, using ITU-T G.657A1 bend-insensitive single-mode fibers to deliver superior mechanical reliability and long-term transmission stability.

It is engineered for the most demanding long-span aerial crossings, including rivers, valleys, highways, and high-voltage transmission corridors. The cable is fully compliant with AS/NZS S008, IEC 60794-3-20, and IEEE 1222 industry standards.

The double sheath ADSS cable supports span lengths of 300 m with fiber counts from 2fo up to 288fo. It is available with a wide range of fiber types, including single mode fiber (SMF) 9/125 G.652D, G.657A1, and G.655, as well as multimode fiber (MMF) 62.5/125 OM1 and 50/125 OM2, OM3, OM4, and OM5.

Double sheath ADSS all-dielectric self-supporting fiber optic cables are typically engineered for spans ranging from 100 meters up to 1500 meters. Medium spans (200 m–300 m) are used for rural distribution lines and major road crossings, where double jacket designs become common to handle unexpected wind loads.

Main Applications
  • High-voltage power transmission corridors
  • Long-distance obstacle-crossing aerial routes
  • Rural broadband and FTTH access networks
  • Smart grid power communication private networks
  • New energy base and transportation trunk communication lines
  • Lightning-prone and strong electromagnetic interference zones

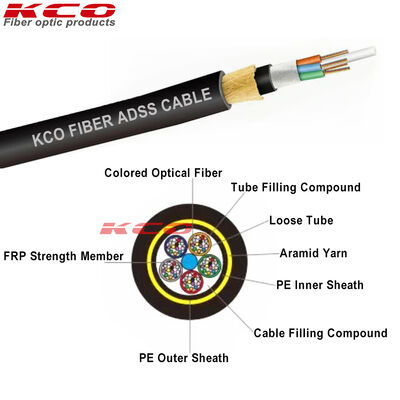

Cable Structure
Cross-section diagram of double sheath ADSS outdoor fiber optic cable showing layered protective structure
Key Advantages
  • Exceptional mechanical crush and tensile resistance
  • High-speed, long-distance transmission performance
  • 100% spark-free dielectric design
  • Outstanding heavy weather survivability
  • Unmatched moisture and environmental protection
  • Reduced long-term structural infrastructure costs
300M Span Double Sheath ADSS Cable Technical Data
Parameter Specification Value Reference Standard
Target Span Length 300 Meters Deployment Parameter
Nominal Cable Diameter 12.3 mm to 15.5 mm (scales with core count) Real-world Cross-section
Nominal Cable Weight 125 kg/km to 195 kg/km Structural Load Calculation
Maximum Allowable Tension (MAT) 5.33 kN to 8.50 kN IEC 60794-1-21-E1
Rated Tensile Strength (RTS) 21.5 kN to 34.0 kN Structural Limit Baseline
Crush Resistance 2,200 N / 100 mm (long-term); 4,400 N / 100 mm (short-term) IEC 60794-1-21-E3
Minimum Bending Radius Static: 15 × cable diameter; Dynamic: 20 × cable diameter Installation Guide
Installation Sag 1.0% to 1.5% of span length Field Setup
Operating Temperature Range -40°C to +70°C IEC 60794-1-22-F1
Single Mode Fiber Characteristics
Characteristic Item G.652 (Standard Non-Dispersion-Shifted Fiber) G.657 (Bending-Insensitive Fiber) G.655 (Non-Zero Dispersion-Shifted Fiber)
Core/Cladding Size 9/125 µm 9/125 µm 9/125 µm
Zero-Dispersion Wavelength Near 1310 nm; 1550 nm band dispersion ~18 ps/(nm·km) G.657A: 1300–1420 nm; G.657B: no mandatory requirement No fixed zero-dispersion point; maintains non-zero low dispersion in the 1550 nm band
1550 nm Max Attenuation ≤0.26 dB/km ≤0.20 dB/km (G.657A2) ≤0.25 dB/km
Minimum Bending Radius (1550 nm) 30 mm, bending loss ≤0.1 dB/turn G.657A1: 10 mm; G.657A2: 7.5 mm, loss ≤0.1 dB/turn 30 mm, similar to G.652, no special bending optimization
Water Peak Performance G.652C/D eliminates water peak, supports 1260–1625 nm full-band transmission All models are low-water-peak, full-band transmission Low-water-peak design, optimized for C+L band
Backward Compatibility — Fully compatible with G.652D; no special adjustment required for existing links Poor compatibility; cannot be directly mixed with G.652 for long-distance DWDM links
Core Technical Features The most widely deployed legacy standard globally; low cost, mature process Optimized bending resistance, 1/4–1/2 bending radius of G.652, no extra loss in narrow spaces Suppresses four-wave mixing nonlinear effect; no dispersion compensation needed for 10G+ long-distance transmission
10G Max Transmission Distance 40 km (no dispersion compensation) 40 km (same as G.652D) 160 km+
DWDM System Support Only supports low-density CWDM; cannot carry high-channel-count DWDM Supports CWDM and low-density DWDM Dedicated for long-haul high-density DWDM 40G/100G/400G systems
Main Application Scenarios Metro backbones, access networks, the vast majority of existing outdoor overhead/pipe optical cables FTTH indoor wiring, data center high-density cabling, narrow-space deployment such as corners and wiring ducts Ultra-long-haul trunk lines, cross-provincial optical transmission networks, submarine cable landing sections
Relative Cost Level Lowest Slightly higher than G.652 Highest
Fiber Color Code
Position 1 2 3 4 5 6
Color Blue Orange Green Brown Grey White
Position 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua
OEM / ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.

Custom OEM and ODM branding options for ADSS fiber optic cable packaging and labels
Packing & Shipping

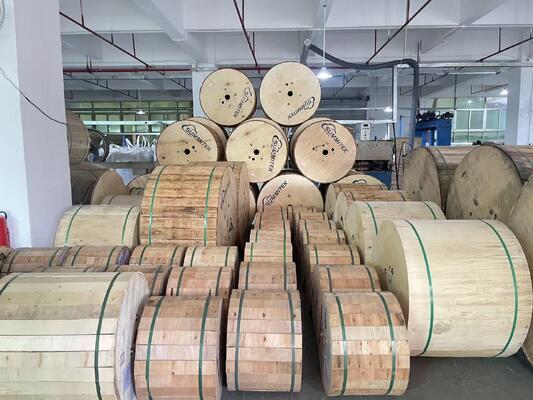

Packing

Standard export packing: carton box, wooden box, or wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
