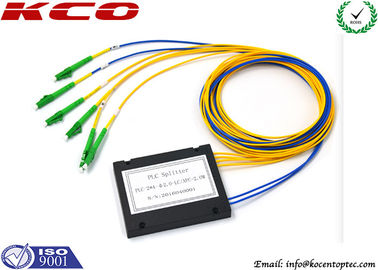

Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC / APC Connector

  • Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC / APC Connector
  • Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC / APC Connector
  • Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC / APC Connector
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number PLC-LCA-2x4 or PLC-SCA-2x4
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box
Delivery Time 3~7 days after payment
Payment Terms L/C,T/T,Western Union
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 2x4 Connector SC/APC, LC/APC,SC/UPC
Fiber 9/125 Um SMF-28e Or Customer Appoint Fiber Length 1m, 1.5m,2m
Cable Diameter 2.0mm, 3.0mm ABS Plastic Box Size 120x90x18mm
Insertion Loss 7.6dB PDL(Max.) 0.3dB
Return Loss 55dB Uniformity (Max.) 1.4dB
Material LSZH, PVC
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC/APC Connector
The Corning Fiber Optic PLC Splitter 2x4 ABS Module with LC/APC Connector is a high-performance optical splitting solution designed for various fiber optic network applications. This 2x4 PLC splitter is available in both connectorized and un-connectorized configurations to meet diverse installation requirements.
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Available Configurations
Split Ratios
  • 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
  • 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
Customization Options
  • Un-connectorized versions available
  • Fiber jacketing: 2mm up to 3mm
  • ABS box type or metal box/module cassette type
  • Connector options: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC
  • Custom connector configurations and combinations
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Product Image
Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC / APC Connector 0
Technical Specifications
Fiber length: 1m or custom length
Connector Type: Custom specified
Optical Fiber Type: Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min: 55
Return Loss (dB) Min: 55 (50)
Power Handling (mW): 300
Operating Wavelength (nm): 1260 ~ 1650
Operating Temperature (°C): -40 ~ +85
Storage Temperature (°C): -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85°C) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2x2 2x4 2x8 2x16 2x32 2x64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1
Packaging
Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC / APC Connector 1
OEM/ODM Services
Corning PLC Fiber Optic Splitter 2x4 ABS Module with LC / APC Connector 2
Kocent Optec Limited is one of the largest and most experienced manufacturers and suppliers of 2x4 fiber optic PLC splitter ABS modules. We welcome opportunities to provide high-quality products, wholesale customized solutions, and offer free samples when necessary.
