Fiber to The Point 1x16 Fiber PLC Splitter For Fiber Optic Cable Corning

  • Fiber to The Point 1x16 Fiber PLC Splitter For Fiber Optic Cable Corning
  • Fiber to The Point 1x16 Fiber PLC Splitter For Fiber Optic Cable Corning
  • Fiber to The Point 1x16 Fiber PLC Splitter For Fiber Optic Cable Corning
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number PLC-LCA-1x16 or PLC-SCA-1x16
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box
Delivery Time 3~7 days after payment
Payment Terms L/C,T/T,Western Union
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 1x16 Connector LC/APC,SC/APC
Fiber 9/125 Um SMF-28e Or Customer Appoint Fiber Length 1.0m
Cable Diameter 2.0mm, 3.0mm ABS Plastic Box Size 120x90x18mm
Insertion Loss 16.2dB PDL(Max.) 0.3dB
Return Loss 55dB Uniformity (Max.) 1.5dB
Highlight

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description
Fiber to The Point 1x16 Fiber PLC Splitter For Fiber Optic Cable Corning
The 1x16 fiber optic PLC splitter is a high-performance passive optical component designed for efficient signal distribution in fiber optic networks. Also known as 1*16 PLC fiber optic splitter or 1x16 PLC optical fiber splitter, this device is available in ABS plastic box module configurations with or without connectors.
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent environmental stability
  • Excellent mechanical stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Configuration Options
  • Split ratios: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64
  • Dual configurations: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64
  • Un-connectorized options available
  • Fiber jacketing: 2mm up to 3mm
  • ABS box type or metal box/module cassette type
  • Connector options: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC
  • Custom connector configurations and combinations
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment

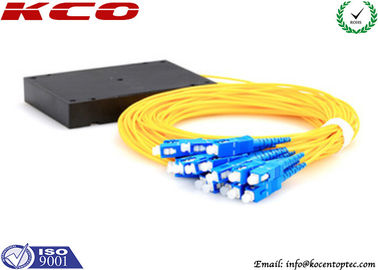

Product Image
Fiber to The Point 1x16 Fiber PLC Splitter For Fiber Optic Cable Corning 0
Technical Specifications
Fiber length: 1m or custom length
Connector Type: Custom specified
Optical Fiber Type: Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min: 55
Return Loss (dB) Min: 55 (50)
Power Handling (mW): 300
Operating Wavelength (nm): 1260 ~ 1650
Operating Temperature (°C): -40 ~ +85
Storage Temperature (°C): -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85°C) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2x2 2x4 2x8 2x16 2x32 2x64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1
OEM/ODM Services
We offer comprehensive OEM and ODM services, allowing you to display your brand logo on cables, packaging bags, labels, or any other surface. Our team is ready to accommodate your custom branding requirements.
Packaging
Standard export packaging options include:
  • Carton boxes
  • Wooden boxes
  • Wooden pallets
Shipping Methods
  • International express services: UPS, TNT, DHL, etc.
  • International air freight: CA, AA, EA, etc.
  • Sea freight
