Corning Single Mode Fiber Optic Splitter 1 to 16 Rack Mount SC / APC Connector

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-RM-1x16-SCA
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PDL 0.2dB IL 13.5 DB
Port 1 To 16 Connector SC/APC Or Customized
RL >55dB Cable Length 1.5m
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter

Leave a Message
Product Description

Corning Single Mode Fiber Optic PLC Splitter 1 to 16 Rack Mount SC / APC Connector


Hot Tags: PLC fiber optic splitter, Rack Mount fiber optic PLC splitter manufacturers, suppliers, factory, wholesale, customized, buy, bulk, in stock, free sample, rack mount plc fiber splitter, patch panel plc optical splitter, 1x16 fiber optical plc splitter, 1*16 plc fiber optical splitter

Rackmount PLC Splitter Descriptions:
Fiber optic PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. We provides a various of 1×N and 2×N PLC splitters, including 1x2 to 1x64 and 2x2 to 2x64 1U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1U Rack Mount type adopts 1U frame, or customize according to actual requirement. It can be installed in ODF canonically and syncretize with appreance of box/ cabinet body via canonical fiber distribution. 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC & ST connectors for choice.

Rack Mount PLC Splitter Applications:
- Optical Signal Distribution
- Data Communications
- LAN and CATV System
- FTTX Deployment
- FTTH Network
- Passive Optical Networks (PON)
- Outside Plant Equipments
- DWDM and CWDM systems

Rack Mount PLC Splitter Features:
- Configuration Type: 1x16, SC/APC connector or customized
- Good channel-to-channel Uniformity
- High Polarization Extinction Ratio
- Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
- Compact design, Custom and Rugged Packaging Available
- Operating temperature : -40°C to +85°C
- Operating bandwidth: 1260~1650nm
- Meet Telcorida GR-1209/ 1221 Qualified

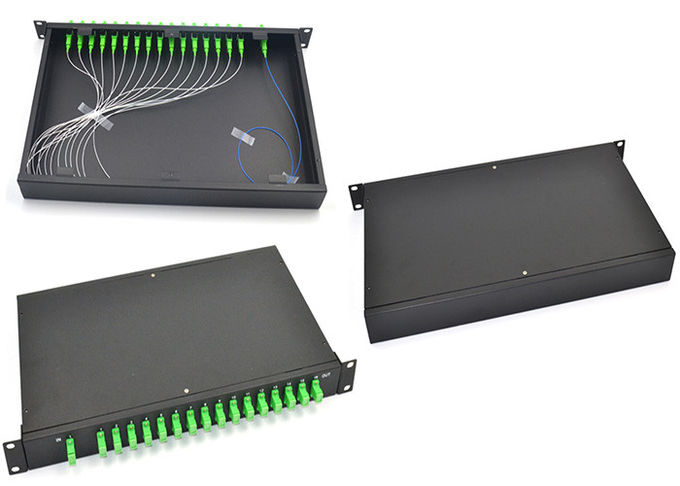

Rack Mount PLC Splitter Product Pictures:
Corning Single Mode Fiber Optic Splitter 1 to 16 Rack Mount  SC / APC Connector 0

Rack Mount PLC Splitter Specifications:

Fiber length1m or custom length
Connector TypeCustom specified
Optical Fiber TypeCorning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min *55
Return Loss (dB) Min *55 (50)
Power Handling (mW)300
Operating Wavelength (nm)1260 ~ 1650
Operating Temperature(°C)-40~ +85
Storage Temperature(°C)-40 ~ +85
Port Configuration1x21x41x81x161x321x64
Insertion Loss(dB) Typical3.67.110.213.516.520.5
Insertion Loss (dB) Max4.07.310.513.716.921.0
Loss Uniformity (dB)0.60.60.81.21.52
PDL(dB)0.20.20.20.250.30.35
Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
Temp. Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.5
Port Configuration2X22X42X82X162X322X64
Insertion Loss(dB) Typical3.87.410.814.21721
Insertion Loss (dB) Max4.27.811.214.617.521.5
Loss Uniformity (dB)11.41.522.52.5
PDL (dB)0.20.20.40.40.40.5
Wavelength Dependent Loss(dB)0.80.80.80.80.81
Temp. Dependent Loss(-40~+85°C)0.50.50.50.80.81
