Corning Single Mode 1:16 Fiber Optic Splitter 1 to 16 Rack Mount SC / APC Connector

  • Corning Single Mode 1:16 Fiber Optic Splitter 1 to 16 Rack Mount SC / APC Connector
  • Corning Single Mode 1:16 Fiber Optic Splitter 1 to 16 Rack Mount SC / APC Connector
  • Corning Single Mode 1:16 Fiber Optic Splitter 1 to 16 Rack Mount SC / APC Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-RM-1x16-SCA
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PDL 0.2dB IL 13.5 DB
Port 1 To 16 Connector SC/APC Or Customized
RL >55dB Cable Length 1.5m
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
Corning Single Mode 1:16 Fiber Optic Splitter
This rack-mounted PLC fiber optic splitter features a 1 to 16 configuration with SC/APC connectors, providing reliable signal distribution for various optical network applications.
PLC fiber optic splitter, Rack Mount fiber optic PLC splitter, 1x16 fiber optical PLC splitter, patch panel PLC optical splitter
Product Overview
Fiber optic PLC (Planar Lightwave Circuit) splitters are single mode splitters with even split ratios from one input fiber to multiple output fibers. Utilizing planar lightwave circuit technology, these splitters provide a cost-effective light distribution solution with compact form factor and high reliability. We offer various 1×N and 2×N PLC splitters, including 1x2 to 1x64 and 2x2 to 2x64 configurations in 1U rack mount enclosures.
The 1U rack mount design features a standard 1U frame (customizable to requirements) that integrates seamlessly with ODF systems. Available with SC, LC, FC, and ST connector options.
Applications
  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV Systems
  • FTTX Deployment
  • FTTH Networks
  • Passive Optical Networks (PON)
  • Outside Plant Equipment
  • DWDM and CWDM Systems
Key Features
  • Configuration: 1x16 with SC/APC connectors (customizable)
  • Excellent channel-to-channel uniformity
  • High polarization extinction ratio
  • Low input polarization sensitivity (Insertion loss ≤13.9dB, PDL ≤0.3dB)
  • Compact design with custom and rugged packaging options
  • Operating temperature: -40°C to +85°C
  • Operating bandwidth: 1260~1650nm
  • Compliant with Telcordia GR-1209/1221 standards
Product Image

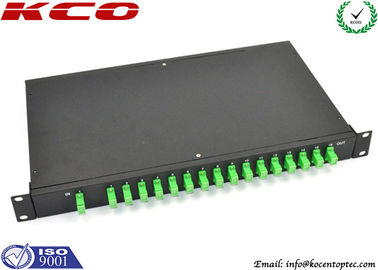

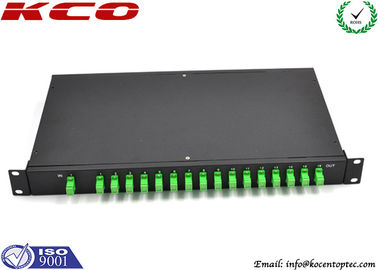

Corning Single Mode 1:16 Fiber Optic Splitter 1 to 16 Rack Mount SC / APC Connector 0
Technical Specifications
General Specifications
Fiber Length1m or custom length
Connector TypeCustom specified
Optical Fiber TypeCorning SMF-28e fiber, G657A1 or customized
Directivity (dB) Min55
Return Loss (dB) Min55 (50)
Power Handling (mW)300
Operating Wavelength (nm)1260 ~ 1650
Operating Temperature (°C)-40 ~ +85
Storage Temperature (°C)-40 ~ +85
1×N Splitter Performance
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL (dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85°C) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
2×N Splitter Performance
Port Configuration 2x2 2x4 2x8 2x16 2x32 2x64
Insertion Loss (dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss (dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss (-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on cables, packaging, labels, and other components according to your specifications.
Packaging & Shipping
Packaging: Standard export packaging including carton boxes, wooden boxes, and wooden pallets.
Shipping Options:
  • International express (UPS, TNT, DHL, etc.)
  • International air freight
  • Sea freight
