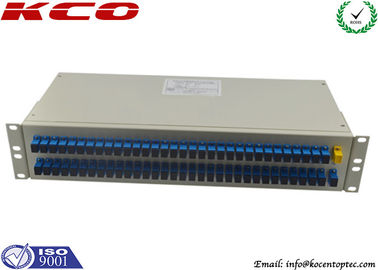

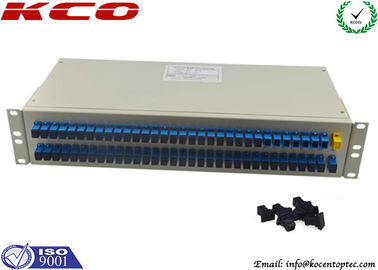

Rack Type 1:64 Fibre Optic Splitter PLC 1x64 Corning Optical Fiber Passive Optical Networks

  • Rack Type 1:64 Fibre Optic Splitter PLC 1x64 Corning Optical Fiber Passive Optical Networks
  • Rack Type 1:64 Fibre Optic Splitter PLC 1x64 Corning Optical Fiber Passive Optical Networks
  • Rack Type 1:64 Fibre Optic Splitter PLC 1x64 Corning Optical Fiber Passive Optical Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-RM-1x64-SCA
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IL 16.5 DB Port 1 To 64
Connector SC/APC, LC/APC Or Customized RL >55dB
Cable Length 1.0m, 1.5m Or Customized Wave Length 1260~1650nm
Highlight

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description
Rack Type 1:64 Fibre Optic Splitter PLC 1x64
Rack Mount PLC Splitter for Corning Optical Fiber Passive Optical Networks
Product Overview
The 1x64 fiber optical PLC splitter, also known as 1*64 fiber optic PLC splitter, is a high-performance passive optical component designed for efficient signal distribution in fiber optic networks.
Technical Specifications
Parameter Specification
Fiber Length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Performance Data
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
Rack Type 1:64 Fibre Optic Splitter PLC 1x64 Corning Optical Fiber Passive Optical Networks 0
Product Description
Fiber optic PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Based on planar lightwave circuit technology, these splitters provide a low-cost light distribution solution with small form factor and high reliability. We offer various 1*N and 2*N PLC splitters, including 1x2 to 1x64 and 2x2 to 2x64 1U Rack Mount type fiber PLC splitters, all featuring superior optical performance, high stability, and high reliability to meet various application requirements.
Key Features
  • Configuration Type: 1x64, SC/UPC connector or customized
  • Excellent channel-to-channel uniformity
  • High Polarization Extinction Ratio
  • Low Input Polarization Sensitivity (Insertion loss≤13.9dB, PDL≤0.3dB)
  • Compact design with custom and rugged packaging options
  • Operating temperature: -40°C to +85°C
  • Operating bandwidth: 1260~1650nm
  • Meets Telcordia GR-1209/1221 qualification standards
Applications
  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV Systems
  • FTTX Deployment
  • FTTH Networks
  • Passive Optical Networks (PON)
  • Outside Plant Equipment
  • DWDM and CWDM Systems
Additional Services
OEM/ODM Service: We offer custom branding options for your logo on cables, packaging, labels, or any other location as required.
Packaging & Shipping
Standard export packing with carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
