CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector

  • CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector
  • CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector
  • CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number PLC-LCA-2x16 or PLC-SCA-2x16
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box
Delivery Time 3~7 days after payment
Payment Terms L/C,T/T,Western Union
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 2x16 Connector SC/APC, SC/UPC
Cable Diameter 1.4dB Uniformity (Max.) 2.0dB
Insertion Loss 14.5dB PDL(Max.) 0.4dB
ABS Plastic Box Size 120x90x18mm
Highlight

Planar Lightwave Circuit Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector
This 2x16 fiber optic PLC splitter, also known as a 2x16 PLC optical fiber splitter, is available in both connectorized and un-connectorized configurations. We manufacture high-quality 2x16 ABS plastic box module fiber optic PLC splitters to meet diverse network requirements.
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
  • Passitive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
Configuration Options
Split Ratios
  • 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
  • 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
Connector Options
  • Un-connectorized versions available
  • Fiber jacketing: 2mm up to 3mm
  • ABS box type or metal box/module cassette type
  • SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connectors
  • Custom connector configurations and combinations
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Product Image

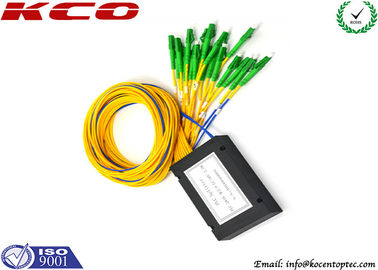

CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector 0
Technical Specifications
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Performance Specifications by Port Configuration
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85°C) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1
Product Packaging
CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector 1
OEM/ODM Services
CATV PLC Fiber Optic Splitter Coupler 2x16 Plastic Module SC UPC Connector 2
Kocent Optec Limited is one of the largest and most experienced manufacturers and suppliers of 2x16 fiber optic PLC splitter ABS modules. We welcome opportunities to provide high-quality products, wholesale customized 2x16 fiber optic PLC splitter ABS modules from stock, and offer free samples when necessary.
