MPO Loopback Attenuator MTP Loopback Attenuator 1-20dB Attenuation Range for 40G 100G QSFP MPO APC Fiber Optic Loopback Plug

  • MPO Loopback Attenuator MTP Loopback Attenuator 1-20dB Attenuation Range for 40G 100G QSFP MPO APC Fiber Optic Loopback Plug
  • MPO Loopback Attenuator MTP Loopback Attenuator 1-20dB Attenuation Range for 40G 100G QSFP MPO APC Fiber Optic Loopback Plug
  • MPO Loopback Attenuator MTP Loopback Attenuator 1-20dB Attenuation Range for 40G 100G QSFP MPO APC Fiber Optic Loopback Plug
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPO, MPO/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type MPO, MPO/APC Attenuation Range 1~20dB
Insertion Loss 0.2dB Return Loss 55dB
Pull Strength 98N Color Yellow, Green
Highlight

breakout fiber optic cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

The MPO Loopback Attenuator is engineered for 40G/100G fiber optic network link testing. It complies with TIA/EIA 604-5 and IEC 61754-7 standards, strictly adheres to RoHS requirements, and meets network component fire test specifications.

Key Features
  • Delicate and tightly integrated shape structure
  • Meets TIA/EIA 604-5 and IEC 61754-7 standards
  • RoHS compliant
  • Supports 40G/100G protocols
Applications
  • Data center infrastructure
  • Optical fiber transmission systems
  • Cloud computing networks
  • Telecommunication networks
  • QSFP fiber optic transceiver equipment
Product Image

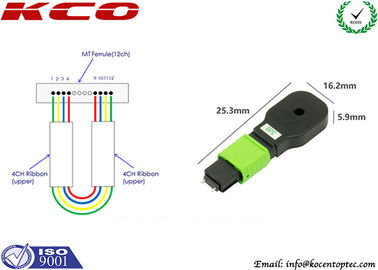

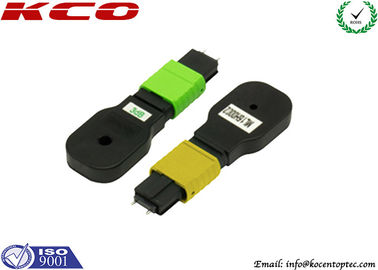

MPO MTP fiber optic loopback attenuator plug for 40G 100G QSFP network testing
Specifications
Item Parameter
Working Wavelength 1310 / 1550 nm
Attenuation Range 1 ~ 20 dB
Attenuation Accuracy Range 2~10 dB: ±1 dB
Range 11~20 dB: ±10%
Return Loss (RL) 60 dB (8°)
Size 25.3 × 16.2 × 5.9 mm
Packing
Packaging of MPO MTP fiber optic loopback attenuator plugs
