ISO9001 OM2 Multimode MPO Breakout Cable with 0.3dB Insertion Loss MPO Fan-out Cable

  • ISO9001 OM2 Multimode MPO Breakout Cable with 0.3dB Insertion Loss MPO Fan-out Cable
  • ISO9001 OM2 Multimode MPO Breakout Cable with 0.3dB Insertion Loss MPO Fan-out Cable
  • ISO9001 OM2 Multimode MPO Breakout Cable with 0.3dB Insertion Loss MPO Fan-out Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-8LC-OM3-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type MPO, MTP Other Type LC, LC/APC, FC, FC/APC, SC, SC/APC
Mode Multi Mode OM2 Cover PVC, LSZH, ...
Insertion Loss 0.3dB Return Loss 60dB
Highlight

breakout fiber optic cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

The MPO to LC Breakout Cable Harness is a high-density multimode OM2 fiber optic patch cord designed for efficient fiber management in demanding environments. Terminated with an MTP/MPO connector on one end and standard LC connectors on the other, this harness cable provides a reliable transition from multi-fiber cables to individual duplex connectors.

The main cable utilizes a 3.0mm LSZH round cable with 2.0mm breakout legs. Both female and male MPO/MTP connectors are available, with male connectors featuring alignment pins. All MPO/MTP connectors are sourced from USConec, ensuring premium quality and performance.

Every MPO/MTP fiber patch cable is compliant with IEC-61754-7 and TIA-604-5 (FOCIS-5) standards. Both Standard and Elite loss grades are available. Jacket options include 3.0mm round cable, flat jacketed ribbon cable, or bare ribbon MTP cables. Single mode and multimode configurations are offered in 9/125, 50/125, and 62.5/125 variants, with 12-core, 24-core, and 48-core MPO/MTP patch cables available.

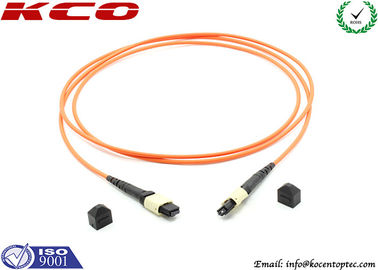

Product Image

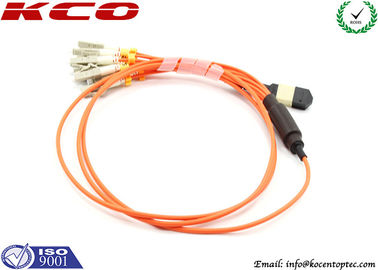

MPO to LC breakout cable harness with multimode OM2 fiber optic patch cord
Key Features
  • Single mode and multimode (flat) APC (8-degree angled) available
  • High fiber density — maximum 24 fibers for multimode
  • Fiber counts per connector: 4, 8, 12, and 24
  • Insert/pull latching connector design
  • High reflection loss with APC polish
  • Compliant with Telcordia GR-1435-CORE specification and RoHS standard
Applications
  • FTTH, CATV, LAN, MAN, WAN, and Test & Measurement
  • Video transmission and data transmission
  • Active device termination
  • Premise installations
  • Telecommunication and data processing networks
  • Industrial and medical environments
  • Systems integration for long haul, metro, and access networks
MTP/MPO Connector Specifications
ParameterSingle Mode (APC Polish)Single Mode (UPC Polish)Multi Mode (PC Polish)
Fiber Count8, 12, 24 etc.8, 12, 24 etc.8, 12, 24 etc.
Fiber TypeG652D, G657A1 etc.G652D, G657A1 etc.OM1, OM2, OM3 etc.
Max. Insertion Loss — Elite (Low Loss)≤0.35 dB≤0.35 dB≤0.35 dB
Max. Insertion Loss — Standard≤0.75 dB≤0.75 dB≤0.60 dB
Return Loss≥60 dB≥60 dBNA
Durability≥500 times≥500 times≥500 times
Operating Temperature-40℃ ~ +80℃-40℃ ~ +80℃-40℃ ~ +80℃
Test Wavelength1310 nm1310 nm1310 nm
Insert-Pull Test1000 times < 0.5 dB
Interchange< 0.5 dB
Anti-Tensile Force15 kgf
Ordering Information

Example: MTP/MPO-8LC Duplex 10G OM3 Fiber Optic Patch Cord

MPO/PC–MPO/PC-SM-12CORE–2M-LSZH ①          ②          ③                       ④                       ⑤                       ⑥
Configuration Options
  1. Connector Type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  2. Ferrule End-Face: PC, UPC, APC
  3. Core Type: Single-mode (SM: 9/125μm), Multimode (MM: 50/125μm or 62.5/125μm)
  4. Fiber Quantity: 4 core, 8 core, 12 core, 24 core
  5. Cable Length: 1, 2, 3 meters, or customized
  6. Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
OEM / ODM Service

We offer full OEM and ODM services. Display your own brand logo on the goods — including cable, package bag, label, or any other location. Our team is always ready to accommodate your customization requirements.

Packing & Shipping
Packing

According to standard export packing: carton box, wooden box, or wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
