FTTH Drop Cable Fiber Optic Patch Cord SC / UPC-SC / APC Single Mode Duplex Sm Dx Patch Cord

  • FTTH Drop Cable Fiber Optic Patch Cord SC / UPC-SC / APC Single Mode Duplex Sm Dx Patch Cord
  • FTTH Drop Cable Fiber Optic Patch Cord SC / UPC-SC / APC Single Mode Duplex Sm Dx Patch Cord
  • FTTH Drop Cable Fiber Optic Patch Cord SC / UPC-SC / APC Single Mode Duplex Sm Dx Patch Cord
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC-SCA-SMDX-ftth-white-xM-lszh
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC/UPC Duplex Connector 2 SC/APC Duplex
Fiber Type Single Mode G657A1 Cable Length 3m, Customized
Cover LSZH Cable Color White
Highlight

fibre optic patch cable

,

patch cord pigtail
Leave a Message
Product Description
FTTH Drop Cable Fiber Optic Patch Cord
SC/UPC to SC/APC Single Mode Duplex Patch Cord with LSZH Cable
Quick Specifications
Connector 1: SC/UPC
Connector 2: SC/APC
Fiber Mode: Single Mode (SM)
Fiber Count: 2 Fiber, Duplex
Fiber Type: G657A
Cable Diameter: 2x3.0mm
Cable Length: 3m or Customized
Jacket Material: LSZH, Flame Retardant
Product Overview
FTTH drop cable fiber optic patch cords provide easy accessibility to fiber with simple installation, enabling direct connections to homes and buildings. These cables are ideal for connecting with communication equipment and serve as access building cables in premises distribution systems.
Key Features
  • Excellent mechanical and environmental characteristics
  • Simple structure, lightweight design with high practicability
  • Low smoke zero halogen (LSZH) flame retardant sheath
  • Novel flute design for easy stripping and splicing
  • Simple installation and maintenance procedures
  • Two parallel FRP strength members for anti-electromagnetic and crush resistance
  • Special low-bend-sensitivity fiber for high bandwidth transmission
  • Compatible with field assembly connectors for terminal connections
Applications
  • Access Networks
  • LAN (Local Area Network)
  • Fiber Optic Communication Systems
  • FTTH (Fiber to The Home) Indoor Building
  • Optical fiber connected and transmitted equipment

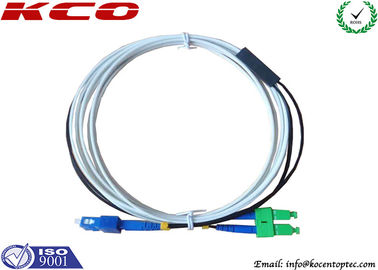

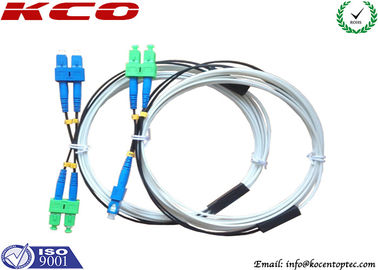

Product Image
FTTH Drop Cable Fiber Optic Patch Cord SC / UPC-SC / APC Single Mode Duplex Sm Dx Patch Cord 0
Technical Specifications
Item Specification Item Specification
Product Type FTTH fiber optic patch cable Applications Indoor, outdoor
Connector 1 SC, FC, LC, ST, MTRJ, E2000, etc Connector 2 SC, FC, LC, ST, MTRJ, E2000, etc
Fiber Count Simplex, duplex Cable Length Customized
Jacket Material LSZH (Black/white/customized) Fiber Type Single mode G652D/G657A1
Cable Diameter 2.0x5.2mm Cable Weight 18kg/km
Working Temperature -40°C to +80°C Temperature Cycle -40°C to +75°C
Storage Temperature -40°C to +85°C Interchangeability ≤0.2 dB
Plug Cycles 1000 times Repeatability ≤0.1 dB
Insertion Loss (IL) ≤0.2 dB Max Insertion Loss ≤0.3 dB
Return Loss (RL) ≥45 dB, ≥50 dB, ≥60 dB Immersion Test Temperature 43°C, PH5.5 for 7 days
Strength Member FRP Tensile Strength 300/600N (long/short term)
Crush Load 1100/2200 N/100mm (long/short term) Bending Radius 15D/20D mm (long/short term)
OEM & ODM Services
We offer comprehensive OEM and ODM services. You can display your brand logo on cables, packaging bags, labels, or any other location as required.
Packaging
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets.
Shipping Methods
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight (CA, AA, EA, etc.)
  • Sea freight
