D4 DIN MU E2K MTRJ Single mode Fiber Optic Patch Cord / SM MM Patch Cable

  • D4 DIN MU E2K MTRJ Single mode Fiber Optic Patch Cord / SM MM Patch Cable
  • D4 DIN MU E2K MTRJ Single mode Fiber Optic Patch Cord / SM MM Patch Cable
  • D4 DIN MU E2K MTRJ Single mode Fiber Optic Patch Cord / SM MM Patch Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number ST-LC-SMDX-2.0-xM-armored
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector 1 D4 Connector 2 D4, Others
Core Simplex Or 1 Fiber Cover PVC, LSZH, Customized
Insertion Loss 0.2dB Return Loss 55dB
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
D4 DIN MU E2K MTRJ Single Mode Fiber Optic Patch Cord
The D4 fiber optic patch cable is a keyed, spring-loaded connector with a 2mm diameter ferrule, available in both single mode and multimode configurations. The connector body features nickel-plated brass construction for enhanced durability.
D4 Connector Overview
The D4 connector holds a single fiber in a 2.0 mm ceramic ferrule. Its body design is similar to the FC connector but features a smaller ferrule and longer coupling nut, offering comparable properties and applications.
Quick Specifications
  • Connector 1: D4
  • Connector 2: D4 or other compatible connectors
  • Mode: Single mode and multimode options
  • Fiber configuration: Simplex, duplex, multi-fiber
  • Diameter: 0.9mm, 2.0mm, 3.0mm
  • Cover: PVC or LSZH
  • Length: Customizable
  • Insertion Loss: 0.15dB
  • Return Loss: 55dB
Applications
  • CATV (Cable Television)
  • Telecommunication networks
  • Computer fiber networks and fiber test equipment
  • Communication rooms
  • FTTH (Fiber to The Home)
  • LAN (Local Area Network)
  • FOS (fiber optic sensor)
  • Fiber Optic Communication System
  • Optical fiber connected and transmitted equipment
  • Defense combat readiness systems
Key Characteristics
  • Low insertion loss
  • High return loss
  • Excellent repeatability
  • Superior interchangeability
  • Outstanding environmental adaptability
About Fiber Optic Patch Cables
A fiber optic patch cable is capped at both ends with connectors for rapid connection to CATV, optical switches, or other telecommunications equipment. The thick protective layer connects optical transmitters, receivers, and terminal boxes.
Single Mode vs Multimode Cables
Single Mode: Features a small diametral core allowing only one mode of light propagation, reducing attenuation for longer distance transmission. Ideal for Telcos, CATV companies, and educational institutions requiring high bandwidth over extended distances.
Multimode: Contains a large diametral core enabling multiple light modes, supporting higher data capacity over shorter distances. Commonly used in LANs for data and audio/video applications.
Multimode Fiber Types
  • OM1: Orange jacket, 62.5µm core, supports 10 Gigabit Ethernet up to 33 meters
  • OM2: Orange jacket, 50µm core, supports 10 Gigabit Ethernet up to 82 meters
  • OM3: Aqua jacket, 50µm core, supports 10 Gigabit Ethernet up to 300 meters
  • OM4: Aqua jacket, 50µm core, supports 10 Gigabit Ethernet up to 550 meters
Product Image

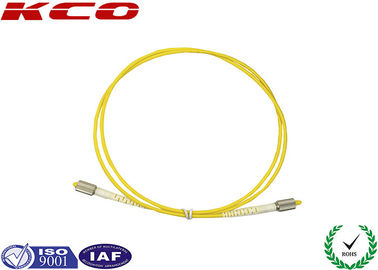

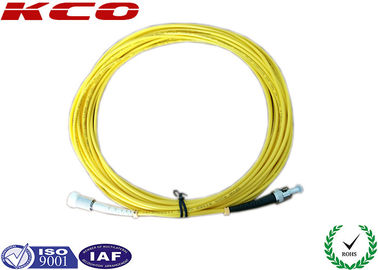

D4 DIN MU E2K MTRJ Single mode Fiber Optic Patch Cord / SM MM Patch Cable 0
Technical Specifications
Type Standard, Master
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2 & OM1
50/125 10G (Multimode) OM3
G652 (all type), G657(all type), G655(all type)
Cable Type Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm, Φ0.9mm buffered fiber
Cable Cover Material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss (Single mode) ≤ 0.15dB (Master)
≤ 0.30dB (Standard)
≤ 0.30dB (Multimode)
UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ.65dB)
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on cables, packaging bags, labels, or any other requested location.
Packing & Shipping
Packing: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight, or sea freight.
