MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode

  • MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode
  • MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode
  • MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode
  • MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode
  • MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode
  • MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MU-SMDX-2.0-xM-PVC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MU, MU/APC Connector 2 MU, MU/APC, SC, ST, Ect
Core Duplex, Simplex Cover PVC, LSZH, Armored, Customized
Insertion Loss 0.2dB Return Loss 55dB
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
MU / APC to E2000 SM MM Fiber Optic Patch Cord
High-performance MU/APC fiber optic patch cables available in both singlemode and multimode configurations for reliable data transmission.
MU Connector Overview
The MU connector (Miniature Unit) features a square front profile and molded plastic body with push-pull latching mechanism, making it ideal for high-density applications. It holds a single fiber in a ceramic ferrule and is available in single mode UPC/APC and multimode OM1, OM2, OM3, OM4 variants.
Quick Specifications
  • Connector 1: MU, MU/APC
  • Connector 2: MU, MU/APC, SC, ST, LC, FC, and other types
  • Mode: Single mode, Multimode
  • Fiber Number: Simplex, Duplex
  • Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
  • Cover: PVC, LSZH
  • Length: Customized to requirements
  • Insertion Loss: 0.15dB
  • Return Loss: 55dB
Applications
  • Cable Television (CATV)
  • Telecommunication Networks
  • Computer Fiber Networks and Test Equipment
  • Communication Rooms
  • Fiber to The Home (FTTH)
  • Local Area Network (LAN)
  • Fiber Optic Sensors (FOS)
  • Fiber Optic Communication Systems
  • Optical Fiber Connected and Transmitted Equipment
  • Defense and Military Applications
Key Characteristics
  • Low Insertion Loss
  • High Return Loss
  • Excellent Repeatability
  • Superior Interchangeability
  • Outstanding Environmental Adaptability
Fiber Optic Patch Cable Overview
A fiber optic patch cable is terminated at both ends with connectors for rapid connection to CATV, optical switches, and telecommunications equipment. The robust protective layer ensures reliable connections between optical transmitters, receivers, and terminal boxes.
Single Mode Cables
Single mode fiber optic cable features a small diametral core that allows only one mode of light propagation, reducing reflections and attenuation for longer distance transmission. Ideal for high-bandwidth applications by telecommunications providers, CATV companies, and educational institutions.
Multimode Cables
Multimode fiber optic cable has a larger core diameter supporting multiple light modes, enabling higher data capacity over shorter distances. Available in four types: OM1, OM2, OM3, and OM4.
OM1: Orange jacket, 62.5µm core, supports 10 Gigabit Ethernet up to 33 meters
OM2: Orange jacket, 50µm core, supports 10 Gigabit Ethernet up to 82 meters
OM3: Aqua jacket, 50µm core, supports 10 Gigabit Ethernet up to 300 meters and 40/100 Gigabit up to 100 meters
OM4: Aqua jacket, 50µm core, supports 10 Gigabit Ethernet up to 550 meters and 100 Gigabit up to 150 meters

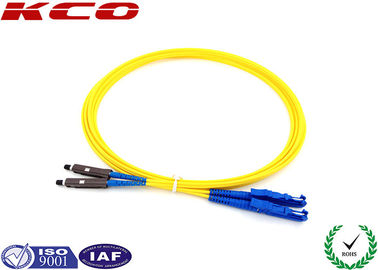

Product Image
MU / APC To E2000 SM MM Fiber Optic Patch Cord Singlemode / Multimode 0
Technical Specifications
Type Standard, Master
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2 & OM1
50/125 10G (Multimode) OM3
G652 (all type), G657(all type), G655(all type)
Cable Type Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm, Φ0.9mm, buffered fiber
Cable Cover Material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss (Single mode) ≤ 0.15dB (Master)
≤ 0.30dB (Standard)
≤ 0.30dB (Multimode)
UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ.65dB)
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
OEM/ODM Services
Custom branding available on cables, packaging, labels, and accessories. Our OEM and ODM services are ready to accommodate your specific requirements.
Packing & Shipping
Packing: Standard export packaging including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight.
