Fiber Optical Splice Closure Outdoor Fiber Splice Enclosure Wall Mounting

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Inline 4-4-01-x core
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 50,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Inline, Horizontal Type Cable Ports 8 Ports
Cable Diameter 8.0~22.0mm Min. Capacity 4 Cores
Max Capacity 96 Cores Material PPR, ABS, PC, PP
Weight 3KG Size 450x220x110mm
High Light

fiber optic joint closure

,

fibre optic splice closure

Leave a Message
Product Description

Fiber Optical Splice Closure Outdoor Fiber Splice Enclosure Wall Mounting





In-line 4-4-01 type fiber optic splice closure also call horizontal 4-4-01type optical fiber splice enclosure box or optical fiber splice closure, or fiber splice enclosure box. We can provide Horizontal type ABS/PC/PPR fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.




Applications:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.



Features:

- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting

- Great water-proof function.



Quick detail about horizontal fiber optic splice closure:

- Name: Horizontal fiber optic joint splice enclosure box

- Part number: Inline 4-4-01

- Cable entry port: 8 ports

- Capacity of fibers: 96 cores

- Size: 450*220*110mm

- Weight: about 3.0kg

- Material: ABS/ PC/PPR/PP Plastic

- Sealing structure: Silica gel

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃



Product pictures:

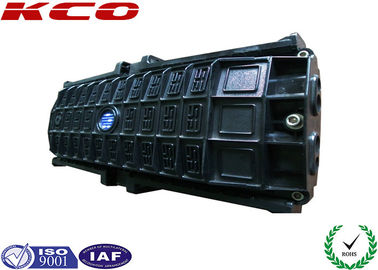

Fiber Optical Splice Closure Outdoor Fiber Splice Enclosure Wall Mounting 0

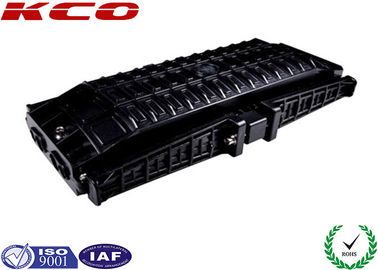

Fiber Optical Splice Closure Outdoor Fiber Splice Enclosure Wall Mounting 1

Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user



Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
