SC MM OM3 Fiber Optic Conector Pigtail Patch Cord Fanout 50/125 3m SC Type

  • SC MM OM3 Fiber Optic Conector Pigtail Patch Cord Fanout 50/125 3m SC Type
  • SC MM OM3 Fiber Optic Conector Pigtail Patch Cord Fanout 50/125 3m SC Type
  • SC MM OM3 Fiber Optic Conector Pigtail Patch Cord Fanout 50/125 3m SC Type
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC-Om3-12fo-fanout-3.0m
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 900,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC Core 12 Cores
Cover PVC, LSZH, ... Cable Length 3.0m
Fanout Length 50mm Cable Diameter 4.2mm
Highlight

fibre optic patch cable

,

fiber optic pigtail cables
Leave a Message
Product Description

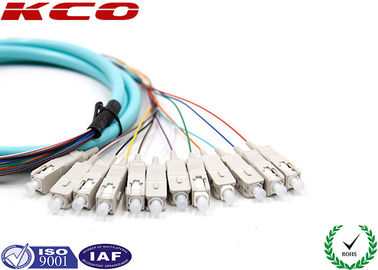

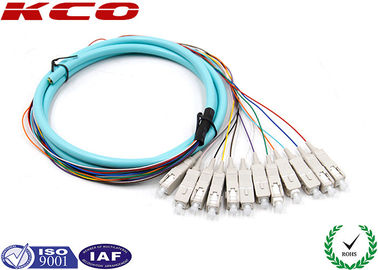

SC MM OM3 Fiber Optic Connector Pigtail Patch Cord
12-core multimode 50/125 OM3 fiber optic pigtail patch cord with SC connectors, 3.0m length, aqua PVC jacket
Quick Specifications
  • Connector: SC MM 0.9mm
  • Fiber cores: 12
  • Accessories: Fanout included
  • Cable diameter: 4.2mm
  • Length: 3.0m
  • Insertion Loss: 0.15dB
  • Return Loss: 55dB
  • Mode: Multimode 50/125 OM3
  • Cover: PVC
  • Cable color: Aqua
Product Images
SC MM OM3 Fiber Optic Conector Pigtail Patch Cord Fanout 50/125 3m SC Type 0 SC MM OM3 Fiber Optic Conector Pigtail Patch Cord Fanout 50/125 3m SC Type 1
Applications
  • Cable Television (CATV)
  • Telecommunication networks
  • Computer fiber networks and test equipment
  • Communication rooms
  • Fiber to The Home (FTTH)
  • Local Area Network (LAN)
  • Fiber optic sensors (FOS)
  • Fiber Optic Communication Systems
  • Optical fiber connected and transmitted equipment
  • Defense combat readiness systems
Product Characteristics
  • Low insertion loss
  • High return loss
  • Excellent repeatability
  • Superior interchange performance
  • Outstanding environmental adaptability
Product Description
SC fiber optic pigtails are available in single mode UPC/APC and multimode PC configurations. Options include simplex, duplex, or multi-fiber fanout/breakout designs with cable diameters of 0.9mm, 2.0mm, 3.0mm, 4.2mm, and more.
We also supply SC fiber optic patch cables with various cable diameters, lengths, and connector types to meet diverse application requirements.
Technical Specifications
Parameter Specification
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2 & OM1
50/125 10G (Multimode) OM3
G652, G657, G655 standards
Cable Type Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm, Φ0.9mm buffered fiber
Cable Cover Material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss ≤ 0.15dB (Single mode Master)
≤ 0.30dB (Single mode Standard)
≤ 0.30dB (Multi mode)
UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
Packing Information
SC MM OM3 Fiber Optic Conector Pigtail Patch Cord Fanout 50/125 3m SC Type 2
Standard export packing includes carton boxes, wooden boxes, and wooden pallets for secure international shipping.
Shipping Options
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding options available for cables, packaging bags, labels, and other components to meet your specific requirements.
