12 fibers MM LC Pigtail Fiber Optic , Optical Fiber Pigtail Multimode Local Area Network

  • 12 fibers MM LC Pigtail Fiber Optic , Optical Fiber Pigtail Multimode Local Area Network
  • 12 fibers MM LC Pigtail Fiber Optic , Optical Fiber Pigtail Multimode Local Area Network
  • 12 fibers MM LC Pigtail Fiber Optic , Optical Fiber Pigtail Multimode Local Area Network
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number LCA-12color-0.9mm-1.5m
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 900,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector LC/APC Core 12 Cores
Cover LSZH, ... Cable Length 1.5m
Cable Diameter 0.9mm Fiber Mode Single Mode 9/125
Highlight

fibre optic patch cable

,

patch cord pigtail
Leave a Message
Product Description
12 Fibers MM LC Pigtail Fiber Optic
Multimode Optical Fiber Pigtail for Local Area Network Applications
Quick Specifications
Connector: LC/APC 0.9mm
Connector Boot Color: Green
Fiber Number: 12 cores
Cable Diameter: 0.9mm
Cable Length: 1.5m
Mode: Single mode 9/125
Cover: LSZH
Cable Color: Orange
IL (Insertion Loss): 0.15dB
RL (Return Loss): 55dB

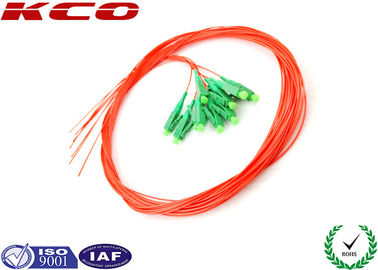

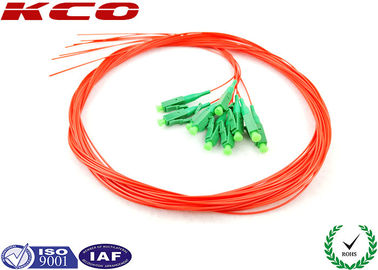

Product Image
12 fibers MM LC Pigtail Fiber Optic , Optical Fiber Pigtail Multimode Local Area Network 0
Applications
  • CATV (Cable Television)
  • Telecommunication networks
  • Computer fiber networks and fiber test equipment
  • Communication rooms
  • FTTH (Fiber to The Home)
  • LAN (Local Area Network)
  • FOS (fiber optic sensor)
  • Fiber Optic Communication System
  • Optical fiber connected and transmitted equipment
  • Defense combat readiness
Key Characteristics
  • Low insertion loss
  • High return loss
  • Good repeatability
  • Good interchange
  • Excellent environmental adaptability
Product Description
LC fiber optic pigtails are available in single mode UPC APC and multimode PC configurations. The cable number can be simplex, duplex, or multi-fiber fan out/break out. Available cable diameters include 0.9mm, 2.0mm, 3.0mm, 4.2mm, and more.
We also supply LC fiber optic patch cables with various cable diameters, lengths, and connector types to meet diverse application requirements.
Technical Specifications
Type Standard, Master
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125 10G (Multimode) OM3
G652 (all type), G657(all type), G655(all type)
Cable Type Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm, Φ0.9mm buffered fiber
Cable Cover Material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss (Single mode) ≤ 0.15dB (Master)
≤ 0.30dB (Standard)
≤ 0.30dB (Multi mode)
UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ.65dB)
Tested by JDS RM 3750
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
Additional Services
We offer comprehensive OEM/ODM services. Custom branding options include printing your logo on cables, packaging bags, labels, or any other requested location.
Packaging & Shipping
Standard export packaging includes carton boxes, wooden boxes, and wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
