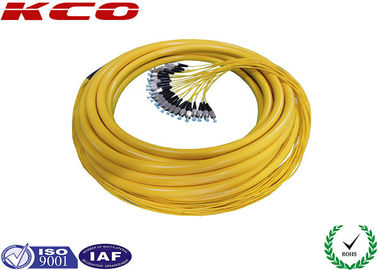

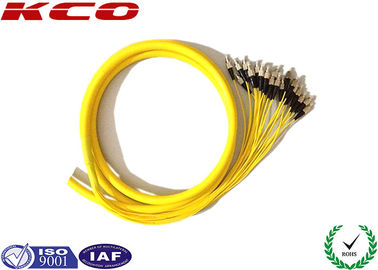

FC / UPC Connector Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail

  • FC / UPC Connector Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail
  • FC / UPC Connector Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail
  • FC / UPC Connector Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FC-SM-breakout-24fo-5M-PVC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 900,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector FC/UPC Single Mode Core Multi Fibers 24 Fibers
Cover PVC Cable Length 5.0m
Cable Diameter 4.8mm Fiber Mode Single Mode 9/125
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
FC/UPC Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail
High-performance FC/UPC connector breakout pigtail designed for reliable fiber optic connectivity in demanding industrial and telecommunications applications.
Product Specifications
Product Name: Breakout Pigtail
Connector Type: FC/UPC
Fiber Type: Single Mode
Connector Boot Color: Yellow
Fiber Count: 24 Fibers
Cable Diameter: 4.8mm
Cable Length: 5.0m
Break-out Length: 50mm
Break-out Diameter: 2.0mm
Mode: Single Mode 9/125
Cover Material: PVC
Cable Color: Yellow
Insertion Loss: 0.3dB
Return Loss: 55dB
FC / UPC Connector Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail 0
Applications
  • Cable Television (CATV)
  • Telecommunication Networks
  • Computer Fiber Networks and Test Equipment
  • Communication Rooms
  • Fiber to The Home (FTTH)
  • Local Area Networks (LAN)
  • Fiber Optic Sensors (FOS)
  • Fiber Optic Communication Systems
  • Optical Fiber Connected and Transmitted Equipment
  • Defense and Military Applications
Key Characteristics
  • Low Insertion Loss
  • High Return Loss
  • Excellent Repeatability
  • Superior Interchangeability
  • Outstanding Environmental Adaptability
Product Description
FC fiber optic pigtails are available in single mode UPC, APC, and multimode PC configurations. Available in simplex, duplex, or multi-fiber fan-out/breakout configurations with cable diameters ranging from 0.9mm to 4.2mm. We also supply FC fiber optic patch cables with various diameters, lengths, and connector types.
About Fiber Optic Patch Cables
A fiber optic patch cable is terminated at both ends with connectors for rapid connection to CATV, optical switches, and telecommunications equipment. The robust protective layer enables reliable connections between optical transmitters, receivers, and terminal boxes.
Single Mode vs Multi Mode Fiber
Single Mode Fiber: Features a small diametral core that allows only one mode of light propagation, reducing attenuation and enabling longer distance transmission. Ideal for long-distance, high-bandwidth applications in telecommunications, CATV, and educational institutions.
Multi Mode Fiber: Contains a larger core supporting multiple light modes, enabling higher data capacity over shorter distances. Available in OM1, OM2, OM3, and OM4 classifications with varying performance characteristics.
Technical Specifications
Parameter Specification
Connector Styles LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Types 9/125 SMF-28 (Single mode OS1), 50/125 & 62.5/125 (Multimode OM1/OM2), 50/125 10G (Multimode OM3), G652, G657, G655
Cable Types Simplex, Duplex, Φ3.0mm, Φ2.0mm, Φ0.9mm, Buffered Fiber
Cover Materials PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss (Single Mode) ≤ 0.15dB (Master), ≤ 0.30dB (Standard)
Return Loss (Multi Mode) ≤ 0.30dB
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
FC / UPC Connector Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail 1 FC / UPC Connector Single Mode 12 Fibers 24 Cores Breakout Fiber Optic Pigtail 2
OEM & ODM Services Available
Custom branding options available for cables, package labels, and packaging bags. We provide comprehensive OEM and ODM services to meet your specific requirements.
