IP67 Waterproof Fiber Optic Pigtail Single Mode 2fo 4fo 6fo 8fo PE Sheath

  • IP67 Waterproof Fiber Optic Pigtail Single Mode 2fo 4fo 6fo 8fo PE Sheath
  • IP67 Waterproof Fiber Optic Pigtail Single Mode 2fo 4fo 6fo 8fo PE Sheath
  • IP67 Waterproof Fiber Optic Pigtail Single Mode 2fo 4fo 6fo 8fo PE Sheath
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FCA-waterproof-4fo-3m-PE
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 900,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector FC/UPC Single Mode Core Multi Fibers 4 Fibers
Cover PE Cable Length 3.0m
Cable Diameter 8.0mm Fiber Mode Single Mode 9/125
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
IP67 Waterproof Fiber Optic Pigtail
Single Mode 2fo, 4fo, 6fo, 8fo PE Sheath
Product Overview
Designed for harsh outdoor environments, these waterproof fiber optic pigtails feature stainless steel strengthened waterproof units and armored outdoor PE jacketed cables. Ideal for outdoor connections to optical transmitters.
Quick Specifications
Connector: FC/UPC Single mode
Connector boot color: Yellow
Fiber number: Multi fibers (24 fibers)
Accessories: Water-proof connection
Cable Diameter: 8.0mm
Cable Length: 3.0m
Break-out length: 50mm
Break-out diameter: 2.0mm
Mode: Single mode 9/125
Cover: PE
Cable color: Black
IL: 0.15dB
RL: 55dB

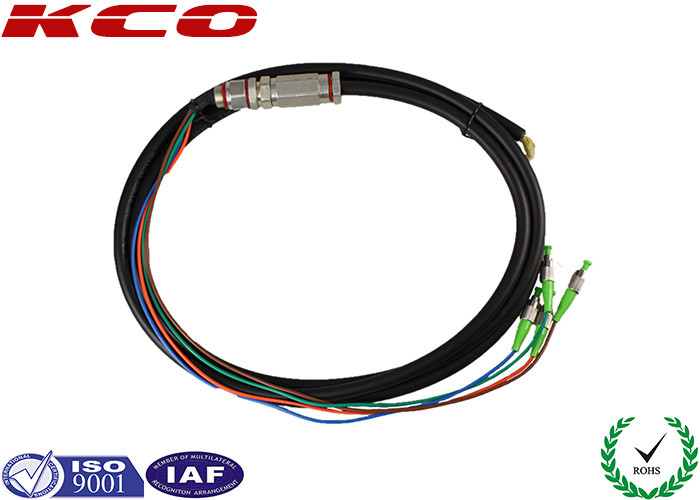

Product Images
IP67 Waterproof Fiber Optic Pigtail Single Mode 2fo 4fo 6fo 8fo PE Sheath 0
Applications
  • CATV (Cable Television)
  • Telecommunication networks
  • Computer fiber networks and fiber test equipment
  • Communication rooms
  • FTTH (Fiber to The Home)
  • LAN (Local Area Network)
  • FOS (fiber optic sensor)
  • Fiber Optic Communication System
  • Optical fiber connected and transmitted equipment
  • Defense combat readiness
Key Characteristics
  • Low insertion loss
  • High return loss
  • Good repeatability
  • Good interchange
  • Excellent environmental adaptability
Product Details
FC fiber optic pigtails are available in single mode UPC/APC and multimode PC configurations. Available in simplex, duplex, or multi-fiber fan out/break out designs with cable diameters including 0.9mm, 2.0mm, 3.0mm, 4.2mm, and more.
We also supply FC fiber optic patch cables with various cable diameters, lengths, and connector types.
Technical Specifications
Type Standard, Master
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125 10G (Multimode) OM3
G652, G657, G655 (all types)
Cable Type Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm, Φ0.9mm
Buffered fiber
Cable Cover material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss ≤ 0.15dB (Single mode Master)
≤ 0.30dB (Single mode Standard)
≤ 0.30dB (Multi mode)
UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C

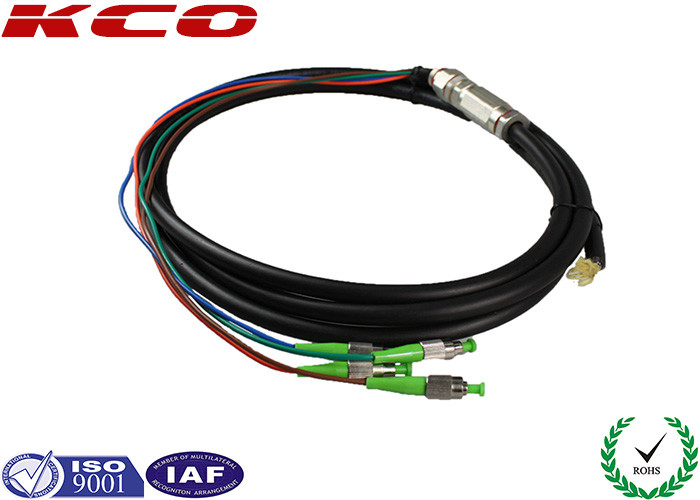

Manufacturing & Packaging
IP67 Waterproof Fiber Optic Pigtail Single Mode 2fo 4fo 6fo 8fo PE Sheath 1 IP67 Waterproof Fiber Optic Pigtail Single Mode 2fo 4fo 6fo 8fo PE Sheath 2
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding available on cables, packaging bags, labels, and other components according to your specifications.
Shipping & Logistics
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
Standard export packing with carton boxes, wooden boxes, and wooden pallets.
