Mini Fiber Optic Junction Box Wall Mountable Wall 1-1-02 Splice Enclosure

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Wall1-1-02
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~7 working days
Payment Terms T/T, L/C
Supply Ability 50,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Wall Mount, Aerial, Pipe Line, ... Cable Ports 1 In 1 Out
Cable Diameter 8.0~14.0mm Min. Capacity 4 Cores
Max Capacity 96 Cores Material PC
Weight 0.8KG Size 280x200x90mm
High Light

fiber optic joint closure


fibre optic splice closure

Leave a Message
Product Description

Mini Fiber Optic Junction Box Wall Mountable Wall1-1-02 Splice Enclosure


We can provide Horizontal type fiber optic splice closure from 4 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.


Quick detail about horizontal fiber optic splice closure:

- Name: Mini zise wall-mounted fiber optic splice closure box

- Part number: Wall1-1-02

- Cable entry port: 2 ports

- Capacity of fibers: 96 cores

- Size: 280*200*90mm

- Weight: about 1.5kg

- Material: PC Plastic

- Sealing structure: Silica gel

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃



- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting

- Great water-proof function.

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

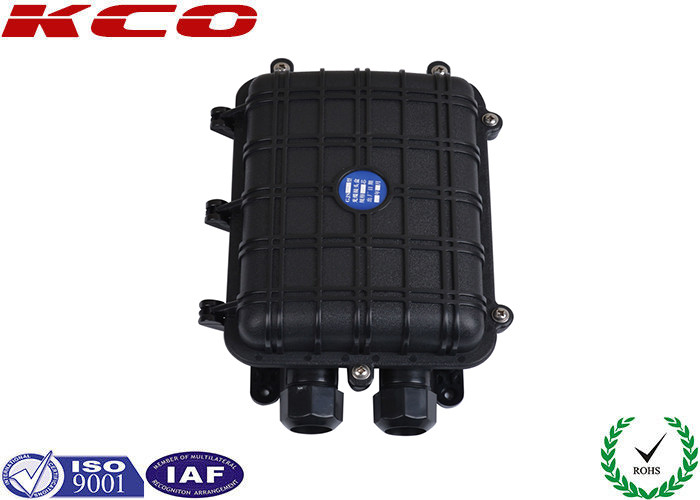

Product pictures:

Mini Fiber Optic Junction Box Wall Mountable Wall 1-1-02 Splice Enclosure 0

Mini Fiber Optic Junction Box Wall Mountable Wall 1-1-02 Splice Enclosure 1



Name 1 in 1 out wall-mount mini size fiber optic junction splice closure box
P/N Wall1-1-02
Material High-strength engineering plastics
Capacity Min: 4 cores, Max: 96 cores
Size 280*200*90mm
Weight About 1.5kg
Working temperature -40°C~+65°C
Atmospheric pressure 70~106KPa
Insulation resistance > 2*104MΩ
Compressive strength 15KV/1min No breakdown No arcing


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
