2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector

  • 2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector
  • 2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number FBT-Dual-SCU-2.0
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details plastic box
Delivery Time 3-5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50000pcs/ week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable Material PVC, LSZH Cable Length 1.0m
Cable Diameter 2.0mm Terminal Connector SC/UPC
Length Wave 1310/1550nm Type FBT, Fused Fiber Splitter
High Light

Planar Lightwave Circuit Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description

2.0mm SM FBT Coupler Single mode 1*2 Fused Splitter with SC/UPC connector



Quick informations:

- Name:  Fiber Optic FBT Splitter

- Cable diameter: 2.0mm

- Cable length: 1.0m

- Terminal connecter: SC/UPC

- Split Rate: 10/90 or customer request

- Pack: ABS box


Description:

Dual Window Wideband Couplers are high quality components designed to divide or combine optical signal in optical fiber system.

These devices are fabricated by using the fused bi-conical taper (FBT) process are reliable over wide range of temperature.

The operating wavelength is 1310nm and 1550nm and the passband is 80nm.

The coupling ratio can range from 1:99 to 50:50.

Various packaging and pigtailing configurations can satisfy our customer's requirements.

Multimode couplers precisely divide light signals between two multimode fibers. The couplers are bi-d
-irectional in performance for either power splitting or Combining and operate 800nm to 1300nm.
Multimode couplers are offered with standard 50/125μm or 62.5/125μm fiber. The devices can be
assembled into miniature or ruggedized packages and can be terminated with industry standard multimode connectors.



Applications:

- Telecommucations

- Fiber in the loop

- Local area network

- CATV

- Fiber optic sensing

- Test instruments



Features:

- Low insertion loss

- Low PDL

- High directivity

- Long haul reliability

- Customer defined specifications

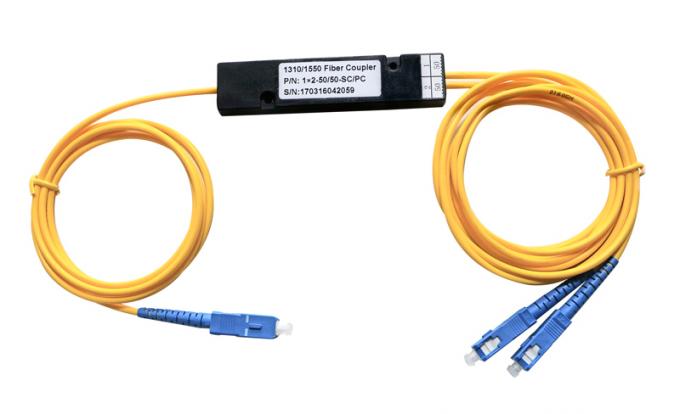

Product Photo:

2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector 0



Parameter:

Parameter   Unit Premium A B
Operating   nm 1310±40 and 1550±40
Excess loss Typ. dB 0.15
Polarization Stability Max dB 0.15 0.15 0.2
Uniformity(50:50) Max dB 0.4 0.5 0.6
Thermal Stability Max dB 0.2 0.3 0.4
Directivity Min dB 50(1x2),60(2x2)
Reflectance Min dB 50(1x2),60(2x2)
Operating Temperature   °C -30~85
Operating Temperature   °C -40~85
  50/50 Max dB 3.4/3.4 3.6/3.6 3.7/3.7
40/60 4.5/2.6 4.6/2.7 4.7/2.8
30/70 5.8/1.85 5.9/1.9 6.0/2.0
20/80 7.6/1.2 7.7/1.3 7.9/1.4
10/90 10.8/0.65 11.0/0.7 11.1/0.8
1/99 21.8/0.2 22.1/0.25 22.5/0.3



Other type parameter:

Parameter   Specification
Operating Wavelength nm Single Window1 Dual,Three Window2
(1×N)   N=3 N=4 N=5 N=8 N=16 N=24 N=32 N=64
Fiber Type   Corning SMF-28e
IL(MAX) dB 5.41/5.62 7.01/7.22 7.81/8.02 10.01/10.42 13.51/13.92 15.01/15.42 17.31/17.52 21.01/21.52
Uniformity dB 0.51/0.62 0.51/0.62 0.61/0.82 0.81/1.02 1.11/1.32 1.21/1.52 1.31/1.52 2.11/2.52
Return Loss dB ≥55
Directivity dB ≥55
PDL dB <0.20 <0.20 <0.30 <0.30 <0.40 <0.50 <0.50 <0.50
