High Capacity Horizontal / Inline 144 Fiber Optic Splice Closure Joint Box​​

  • High Capacity Horizontal / Inline 144 Fiber Optic Splice Closure Joint Box​​
  • High Capacity Horizontal / Inline 144 Fiber Optic Splice Closure Joint Box​​
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Madidi-ZT-Z15
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Inline Type, Horizontal Type Cable Ports 2 In 2 Out
Cable Diameter 8.0~22.0mm Min. Capacity 4 Cores
Max Capacity 144 Cores Material PPR, ABS, PC, PP
High Light

fiber optic joint closure

,

fibre optic splice closure
Leave a Message
Product Description

Big Capacity 144 Fibers FO Inline Madidi-ZT-Z15

Optical Fiber Splicing Closure Joint Box​​



Quick detail about horizontal fiber optic splice closure:

- Name: Big Capacity Horizontal / Inline type fiber optic splicing joint box

- Part number: Madidi-ZT-Z15

- Size: 670*240*200mm

- Weight: about 5.9kg

- Cable entry port: 4 ports

- Capacity of fibers: 144 cores

- Splice tray number: max. 6 trays

- Material: ABS/ PC/PPR/PP Plastic

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃


Applications:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.



Features:

- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting

- Great water-proof function.



Product pictures:

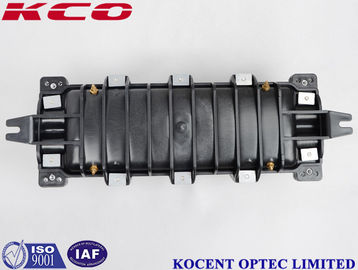

High Capacity Horizontal / Inline 144 Fiber Optic Splice Closure Joint Box​​ 0

High Capacity Horizontal / Inline 144 Fiber Optic Splice Closure Joint Box​​ 1



Madidi Series Fiber Optic Splicing Closure Joint Box

P/N Color Cable port Size Weight Splice Tray Number Capacity
Madidi-ZT-Z13 Red 2 in 2 out 480*160*105mm 2.2kg Max 4 trays 96 cores
Madidi-ZT-Z14 Black 2 in 2 out 480*160*105mm 2.2kg Max 4 trays 96 cores
Madidi-ZT-Z15 Black 2 in 2 out 670*240*200mm 5.9kg Max 6 trays 144 cores



Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user



Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
