2.5Mm UPC PC Optical Fiber Ferrule , CCTC Zirconia Ceramic Ferrule Optical Fiber

  • 2.5Mm UPC PC Optical Fiber Ferrule , CCTC Zirconia Ceramic Ferrule Optical Fiber
  • 2.5Mm UPC PC Optical Fiber Ferrule , CCTC Zirconia Ceramic Ferrule Optical Fiber
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-250-UPC-1.0
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 50,000 pcs/ month
Product Details
P/N KCO-250-UPC-1.0 Ferrule 2.5mm
Fiber Mode Single Mode, Multimode Material Ceramic
Concentricity 1.0 Ferrule Numer 100 Ferrules
Highlight

fiber optic cutting machine

,

fiber optic polishing machine
Leave a Message
Product Description
2.5mm UPC PC Optical Fiber Ferrule, Zirconia Ceramic Ferrule
High-precision 2.5mm UPC PC optical fiber ferrule manufactured from zirconia ceramic, designed without flank for optimal performance in fiber optic connectivity applications.
Product Overview
Fiber optic ceramic ferrules serve as critical components in optical connectors and fiber optic patch cords, delivering reliable performance with low insertion loss and strong interchangeability capabilities.
Key Specifications
  • Name: Fiber Optic Ferrule
  • Mode: Singlemode, Multimode
  • Material: Ceramic/Zirconia, Metal
  • Ferrule End-face: UPC
  • Type: Standard
  • Outer Diameter: φ2.5mm (FC/SC/ST)
  • With plug: None
Performance Features
  • Low insertion loss and high return loss
  • Excellent concentricity and dimensional precision
  • High strength, durability, and anti-aging performance
  • Superior wear resistance
  • Strong interchangeability capability
  • Compliant with UL94V-0 and RoHS standards
  • High corrosion resistance
  • Flange options: SUS303, Brass, Gild
  • ISO9001 certified
  • Custom specifications available
Applications
  • Fiber connector, pigtail, and patch cord assemblies
  • Data network communication systems
  • CATV, LAN & WAN infrastructure
  • Telecommunication networks
  • data network communication
  • Optical fiber access networks
  • Optical fiber CATV systems
  • Optical fiber test equipment

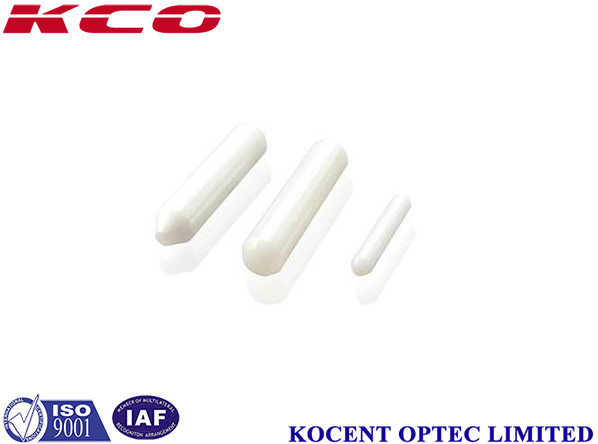

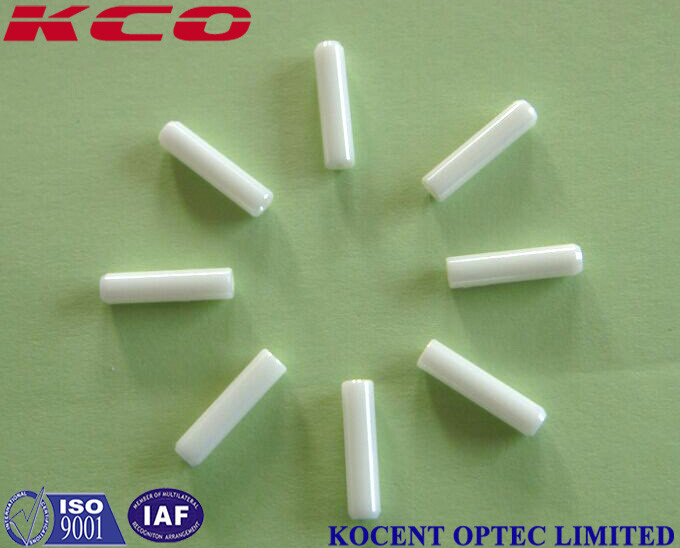

Product Image
2.5Mm UPC PC Optical Fiber Ferrule , CCTC Zirconia Ceramic Ferrule Optical Fiber 0
Technical Specifications
Type SC Type LC Type MU Type APC Type Customized
Outside Diameter (mm) Single Mode: 2.499±0.0005
Multi Mode: 2.499±0.002		 1.249±0.0005
1.249±0.001		 1.249±0.0005 2.4990±0.0005 φd±0.0005
Inside Diameter (mm) Single Mode: d0+0.001
Multi Mode: d0+0.002		 d0+0.001
0.1260+0.004		 d0+0.001 d0+0.001 d0+0.001
Concentricity (μm) Single Mode: ≤1.0
Multi Mode: ≤4.0		 ≤1.0
≤4.0		 ≤1.0 ≤1.0 user-defined
Length (mm) 10.5±0.05 6.40+0.1 6.5±0.05 10.5±0.05 L±0.05
Parameter Unit FC,LC,SC ST,MU MTRJ,MPO
Insertion loss (typical) dB ≤0.3 ≤0.2 ≤0.2
Return loss dB ≥45 ≥50 ≥35
Operating wavelength nm 1310,1510 1310,1510 1310,1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~+75 -40~+75 -40~+75
Storage temperature °C -45~+85 -45~+85 -45~+85
Cable diameter mm Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9
Order Information
Mode Type ID Flange
S: Single mode
M: Multi-mode		 C: (SC, FC, ST, E2000)/PC
L: LC/PC
D: DIN/PC
U: MU/PC
CA: (SC, FC, E2000)/APC
DA: DIN/APC
CAS: (SC, FC)/APC Step type		 5: 125um
6: 126um
7: 127um		 F: With flange
N: No flange
OEM/ODM Services
We provide comprehensive OEM/ODM services for both standard and non-standard fiber optic ferrules. Using high-quality raw materials, we ensure each ferrule meets your most stringent requirements. Contact us via phone or email to discuss your specific specifications.
