Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity

  • Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity
  • Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity
  • Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity
  • Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity
  • Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number LC-FC-UPC-MM-2.0mm-1.0m
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector1 LC/UPC Connector2 FC/UPC
Mode Muti Mode Cover PVC, LSZH
Insertion Loss 0.2dB Return Loss 55dB
Diameter 2.0mm Length 1.0m, 2.0m, 3.0m,4.0m
Core 50/125
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description

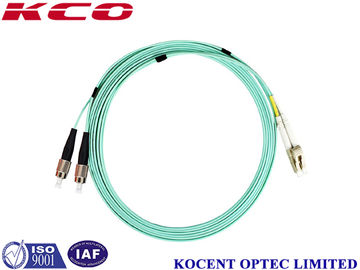

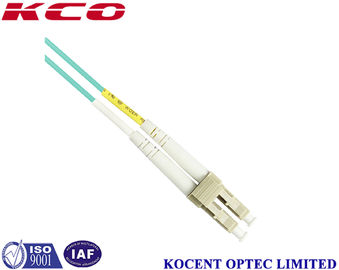

Duplex PVC LSZH 1.0m Optical Fiber Patch Cable MM LC/UPC-FC/UPC 2.0mm OM3
Kocent Optec Limited provides OEM service for all kinds of fiber optic patch cables, including common types of FC, LC, SC, ST, MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, and SC Uniboot connectors. Our high-performance Duplex LC/UPC-FC/UPC optical fiber patch cords save half the operation space required, making them the preferred choice for data center high-density connectivity.
Key Features
  • High return loss, low insertion loss
  • Excellent exchangeability & durability
  • High reliability and stability
  • Complies with Telcordia GR-326-Core, IEC and RoHS standards
  • Multimode (MM) based on 50/62.5-125um fiber

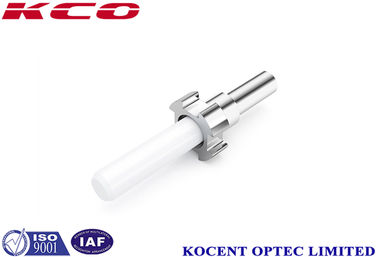

  • Ceramic ferrule construction
Applications
  • Fiber optic communication networks
  • Fiber broadband access networks
  • CATV systems
  • Fiber optic instruments
  • Metro and Local Area Networks
  • Spectral measurement equipment
  • Data processing networks
Technical Specifications
Parameter Single Mode Multimode
Polish UPC APC/PC
Insertion Loss Typical ≤0.2dB
Maximum ≤0.3dB		 ≤0.25dB
Return Loss ≥50dB ≥65dB/≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 mating cycles)
Tensile Strength > 10kg
Temperature Performance ≤0.2dB (-40°C to +85°C for 100 hours)
Humidity Performance ≤0.2dB (+25°C to +65°C at 93% RH for 100 hours)
Product Images
Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity 0 Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity 1 Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity 2 Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity 3 Duplex LC/UPC-FC/UPC Fiber Optic Patch Cord with Low Insertion Loss High Return Loss for Data Center Connectivity 4
Ordering Options
  • Connector type: FC, SC, LC, ST
  • Ferrule End-face: PC, UPC, APC
  • Core Type: Multi Mode 50/125
  • Fiber Core: Duplex
  • Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
  • Cable Length: 1, 2, 3 meter or customized
  • Cable type: PVC, LSZH
OEM/ODM Service
We offer complete OEM/ODM services, including custom branding on cables, packaging bags, labels, or any other requested location.
Packaging & Shipping
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets. Shipping methods available: international express (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight.
