16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports

  • 16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports
  • 16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports
  • 16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports
  • 16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODP-16B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 16 Fibers Fo
High Light

optical termination box

,

fibre termination box
Leave a Message
Product Description

 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic KCO-ODP-16B



KCO-ODP-16B 16ports outdoor fiber optic splitter terminal box waterproof plastic optic distribution box is mounted to in and out side wall of building or pole to distribute and connect optical cable for distribution of subscriber, the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network.



Dimensions:

Item KCO-ODP-16B
Dimensions (WxDxH) 330x300x120mm
Splice Capacity 16Cores
Cable Port 16ports
Color white/black
Main Body Material Plastic: ABS+PC
Installation Type Wall /Pole Type Outdoor



Product photos:

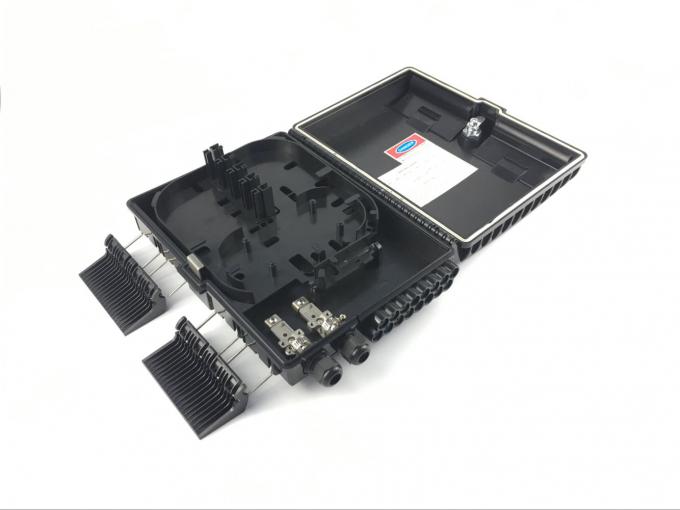

16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports 0

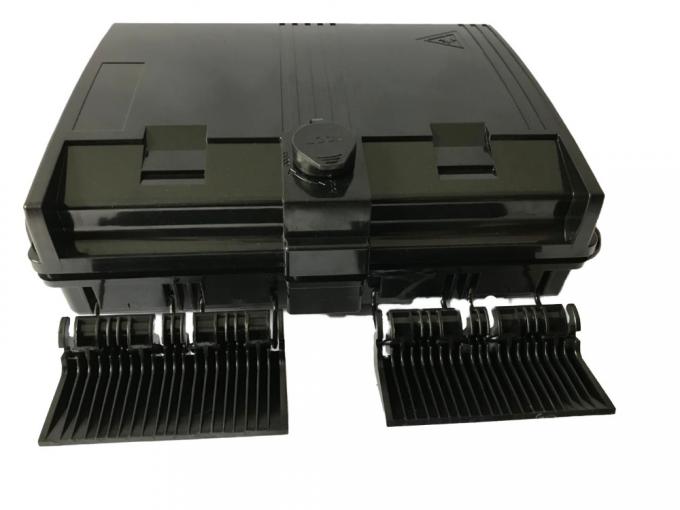

16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports 1

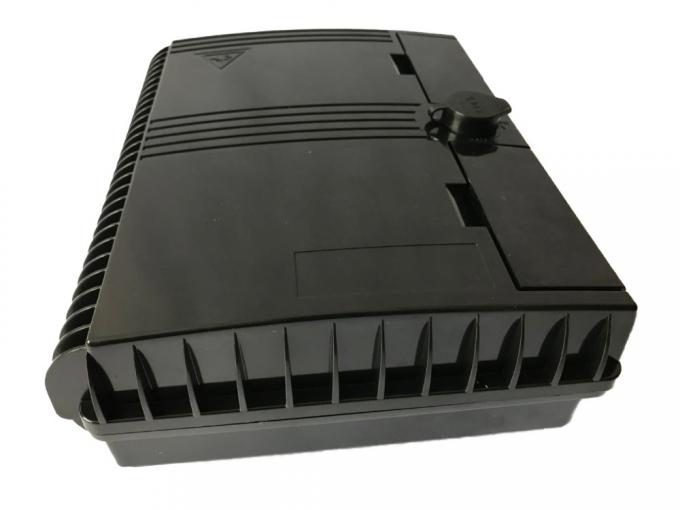

16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports 2

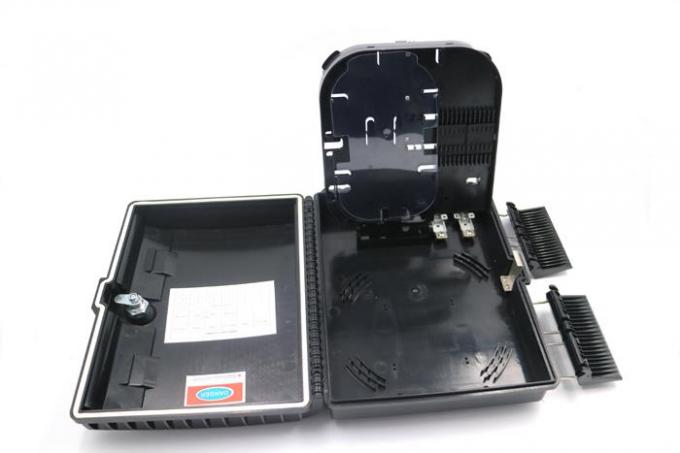

16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports 3

Specifications

  • Vibration, pressure and pulling protection, endurable bad situation like quake, knocking, pulling and distortion etc.
  • Waterproof, creative complete seal plastic band with re-opening style guarantying good air sealing and waterproof function.
  • Anti-UV,Ultra violet resistant and rainfall resistant.
  • Fire protection, -40°C~+80°C
  • Aging protection, good stability for heat, heating energy radiation, air and ozone
  • Can accommodate 1x4 &1x8 &1x16 &1x32 PLC splitter.
  •  Up to 24 FTTH drops.
  • Wall and pole mountable.
  • 1~3 inlet ports,8~24outlet ports.
  • Widely used in FTTH access network.
  • Telecommunication networks.
  • CATV Networks.
  • Data communications networks.
  • Local Area Networks.



Features:

  • Rainfall resistant, IP66 outdoor using
  • Nonmetallic material
  • Industry Standard User Interface
  • Be made of high impact plastic
  • Compacted wall mount type and pole mounting application
  • Simple and clearly arranged incoming and outgoing cable management
  • Higher fiber count capacity box is available upon request
  • Easy maintenance, easy access with front door
  • Support both mechanical and fusion splicing
  • Low cost solution with high protection for the terminated fibers
  • Up to 16 FTTH drops,
  • Can accommodate 1x4, 1x8, 1X16, 2x4, 2x8, 2x16 PLC splitter
  • inlet ports, 16 outlet ports with 16pcs SC, LC, ST, FC adapters
  • Customized design product is available upon request

Applications:

  • FTTX Systems
  • Telecommunication Networks
  • PON Networks
  • Data communications Networks
  • Fiber Optic Termination
  • Local Area Networks
  • CATV

Specification:

  • Wall Mounted termination box for indoor/outdoor use
  • Up to 1 Fiber capacity SC Simplex
  • Available for SC Simplex Adaptors
  • Available install 1x4, 1x8, 1X16, 2x4, 2x8, 2x16 Mini type PLC Splitters as required

Operation conditions:

  • Temperatures:-40℃ -- 60℃
  • Humidity:93% at 40℃
  • Air Pressure:62kPa – 101kPa



Packing Information



Model N.W (kg/pcs) Dimension of outer carton (mm) G.W of outer Carton (kg/carton) No of Products (pcs/carton)
KCO-ODP-16B 2 550*360*620 18 10




Package includes:

- Terminal box, 1 unit

- Keys for lock, 2 keys

- Wall mount installation accessories, 1 set



16 Cores Ftth Termination Box / Fibre Optic Termination Box 16 Cable Ports 4
