|Type:||Inline Type||Cable Ports:||4 Ports|
|Cable Diameter:||8.0~22.0mm||Min. Capacity:||4 Cores|
|Max Capacity:||96 Cores||Material:||PPR, ABS, PC, PP|
SC UPC Fiber Optic Enclosure,
SC APC Optical Fiber Closure

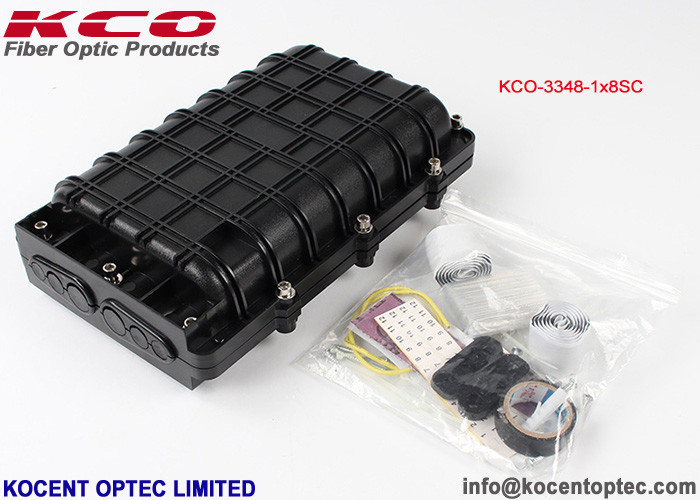

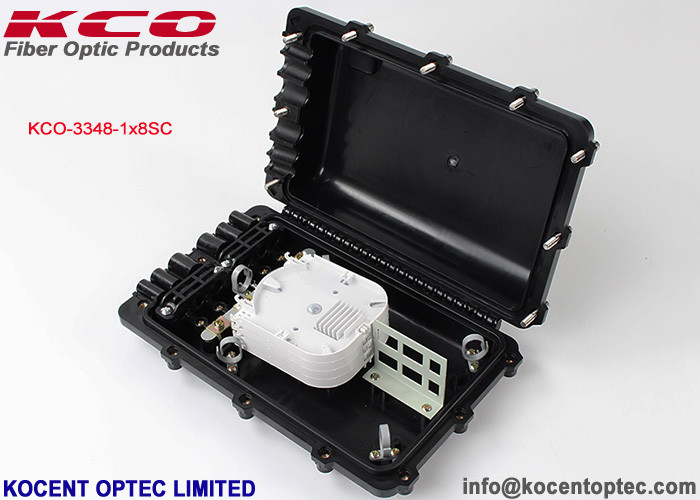

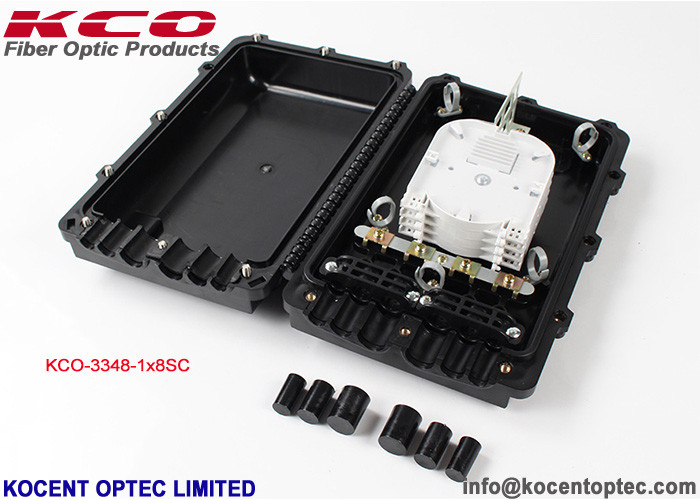

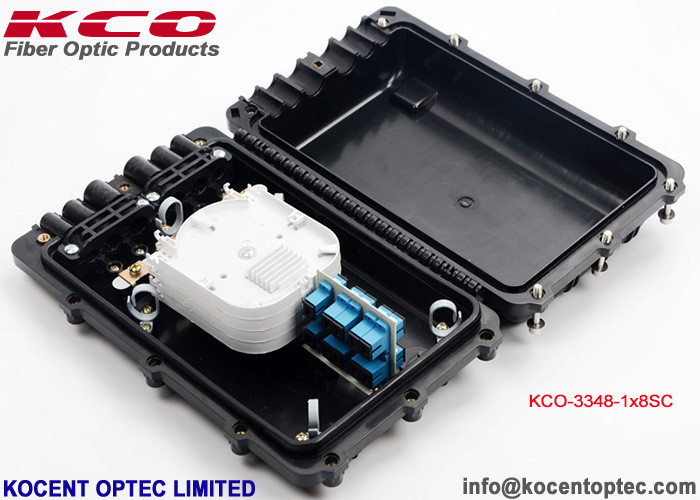

KCO-3348-1x8SC Mini Aerial Optic Fiber Splice Closure FOSC Box For 1*8 Splitter SC/UPC SC/APC
- Aerial fiber optic splice closure can be used in aerial application. They are made of the high quality material and with the mechanical sealing structure filled with the material, and can be reopened and reused without changing sealing material and tools.
- KCO-3348-1x8SC is a multifunctional fiber splice equipment which is designed for fiber connection, branching and terminal connection.
- This FOSC has 6 cable ports, each cable port, can do 3 input and 3 output.
- It is suitable for wall-mounting, aerial, pole-mounting, especially used for FTTH fiber distribution.
- We are always in pursue of doing research and developing the telecommunication connection equipment.
- Our FOSC is your reliable choice to guarantee the quality of information transform.
|Name||Aerial Fiber Optic Enclosure|
|Material||Strengthen Polymer Plastic|
|Application||FTTx, xPON, ...|
|Adapter no.||10pcs SC simplex|
|Splitter no.||1pc 1*8 Splitter SC|
|2pcs 1*4 Splitter SC|
|Tray no.||Max. 4 trays|
|Warranty period||20 year|
|Country Of Origin||China|
- CATV networks
- Local area networks
- Widely used in FTTH access network
- Telecommunication networks
- Data communications networks
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
- High-strength engineering plastic shell
- High mechanical performance
- Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
- Great aging resistant ability
- Does not require special tools, easy to install and open the duplicate.
- Excellent sealing performance
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
