1x4 Fiber Optic PLC Splitter Patch Panel Type , Rack Mount PLC Splitter 1U 19''
Rack Mount type or Patch Panel type fiber optic PLC Splitter 1x4 is also called fiber optic PLC Splitter 1*4, fiber optical PLC Splitter, optical fiber PLC Splitter, PLC fiber optic splitter or plc optical fiber splitter.
Rackmount PLC Splitter Descriptions:
Fiber optic PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. We provides a various of 1×N and 2×N PLC splitters, including 1x2 to 1x64 and 2x2 to 2x64 1U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1U Rack Mount type adopts 1U frame, or customize according to actual requirement. It can be installed in ODF canonically and syncretize with appreance of box/ cabinet body via canonical fiber distribution. 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC or ST connectors for choice.
Rack Mount PLC Splitter Features:
- Configuration Type: 1x4, SC/APC connector or customized
- Good channel-to-channel Uniformity
- High Polarization Extinction Ratio
- Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
- Compact design, Custom and Rugged Packaging Available
- Operating temperature : -40°C to +85°C
- Operating bandwidth: 1260~1650nm
- Meet Telcorida GR-1209/ 1221 Qualified
Rack Mount PLC Splitter Applications:
- Optical Signal Distribution
- Data Communications
- LAN and CATV System
- FTTX Deployment
- FTTH Network
- Passive Optical Networks (PON)
- Outside Plant Equipments
- DWDM and CWDM systems

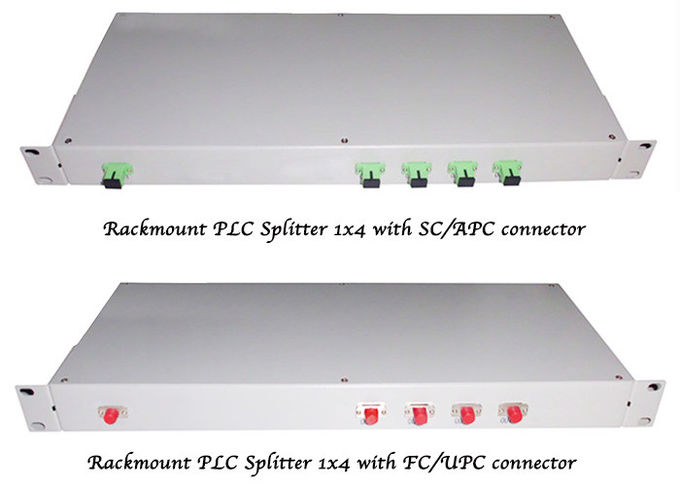

Rack Mount PLC Splitter Product Pictures:
Rack Mount PLC Splitter Specifications:
|Fiber length||1m or custom length|
|Connector Type||Custom specified|
|Optical Fiber Type||Corning SMF-28e fiber, G657A1 or as customized|
|Directivity (dB) Min *||55|
|Return Loss (dB) Min *||55 (50)|
|Power Handling (mW)||300|
|Operating Wavelength (nm)||1260 ~ 1650|
|Operating Temperature(°C)||-40~ +85|
|Storage Temperature(°C)||-40 ~ +85|
|Insertion Loss(dB) Typical||3.6||7.1||10.2||13.5||16.5||20.5|
|Insertion Loss (dB) Max||4.0||7.3||10.5||13.7||16.9||21.0|
|Loss Uniformity (dB)||0.6||0.6||0.8||1.2||1.5||2|
|Wavelength Dependent Loss(dB)||0.3||0.3||0.3||0.5||0.5||0.5|
|Temp. Dependent Loss (-40~85 ) (dB)||0.4||0.4||0.4||0.5||0.5||0.5|
|Insertion Loss(dB) Typical||3.8||7.4||10.8||14.2||17||21|
|Insertion Loss (dB) Max||4.2||7.8||11.2||14.6||17.5||21.5|
|Loss Uniformity (dB)||1||1.4||1.5||2||2.5||2.5|
|Wavelength Dependent Loss(dB)||0.8||0.8||0.8||0.8||0.8||1|
|Temp. Dependent Loss(-40~+85°C)||0.5||0.5||0.5||0.8||0.8||1|
Rack Mount PLC Splitter Packing ways:
Our Rack Mount PLC Splitter OEM and ODM service is always ready!
