Mono Mode Fiber optic Media Converter Ethernet To Fiber Bandwidth Control

  • Mono Mode Fiber optic Media Converter Ethernet To Fiber Bandwidth Control
  • Mono Mode Fiber optic Media Converter Ethernet To Fiber Bandwidth Control
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS, UL
Model Number KCO-converter
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power External Optical Port 4 Ports
Ethernet Port 2 Ports Speed 10/100M
Fiber Dual Fiber Mode Single Mode, Mono Mode
High Light

ethernet fiber media converter

,

optical fiber media converter
Leave a Message
Product Description

Mono Mode Fiber optic Media Converter Ethernet To Fiber Bandwidth Control





Specifications:

It provides 10/100Mbps UTP/STP RJ45 ports with auto-MDI/MDIX and fiber port.

It also provides powerful functions such as supporting Web management, intelligent matching among working mode, port, VLAN, prority, data rate and security of the interface.



Features:

- Support 10/100M auto-detect Half/Full duplex RJ45 ports and fiber port.

- Support port-based VLAN and MTU VLAN function.

- Support Port Security, Broadcast Storm control, Bandwidth Control (the minimum Granularity is 128Kbps)

- Support data packet length up to 1552 bytes.

- Support MAC address auto-learning.

- Support transmission by single fiber and dual fibes.

- External/Internal power supply.



Product pictures:

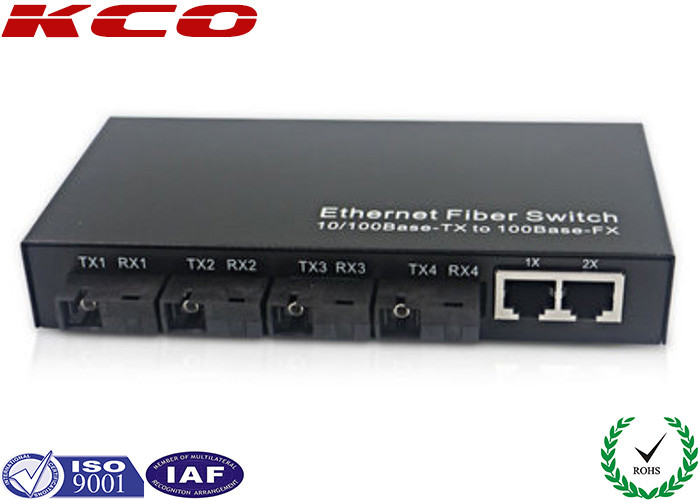

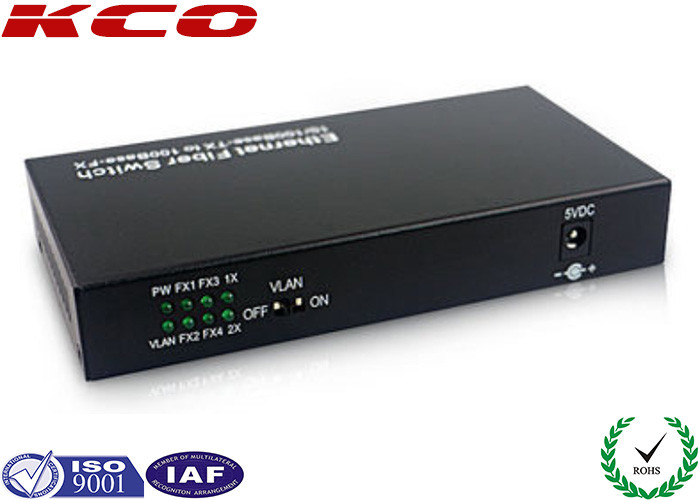

Mono Mode Fiber optic Media Converter Ethernet To Fiber Bandwidth Control 0



Parameters:

Standard IEEE802.3, IEEE802.3u , IEEE802.3x
Protocol CSMA/CD
Ethernet port type MDI/MDIX RJ45 port
Optical port type SC/UPC port
Input Voltage: AC100V-AC240V/50-60Hz
Output power DC 5V
Wave length 1310nm/ 1550nm
Mode Single mode
Fiber Single fiber
Distance up to 25km
Working Temp. 0°C~+55°C
Storage Temp. -40°C~+70°C
Humidity 5%~90% non-condensing



Package:

Mono Mode Fiber optic Media Converter Ethernet To Fiber Bandwidth Control 1

Order information:

P/N Speed Optical port Ethernet port Size Weight
SW-1000-12 10/100/1000M 1 2 94x70x26mm 0.32kg
SW-1000-14 10/100/1000M 1 4 140x79x27mm 0.35kg
SW-1000-18 10/100/1000M 1 8 120x125x40mm 0.5kg
SW-1000-22 10/100/1000M 2 2 161x94x26mm 1.0kg
SW-1000-32 10/100/1000M 3 2 161x94x26mm 1.0kg
SW-1000-42 10/100/1000M 4 2 161x94x26mm 1.0kg
SW-1000-82 10/100/1000M 8 2 270x137x28mm 1.5kg
SW-100-12 10/100M 1 2 94x70x28mm 0.32kg
SW-100-14 10/100M 1 4 95x70x26mm 0.32kg
SW-100-18 10/100M 1 8 120x125x40mm 0.5kg
SW-100-22 10/100M 2 2 161x94x26mm 1.0kg
SW-100-32 10/100M 3 2 161x94x26mm 1.0kg
SW-100-42 10/100M 4 2 161x94x26mm 1.0kg
SW-100-82 10/100M 8 2 270x137x28mm 1.5kg
