Fiber Optic Media Converter Rack Mount

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS, UL
Model Number KCO-converter
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed 10/100/1000M And 10/100M Optional Connector SC, LC, FC
Fiber Single Fiber, Dual Fiber Mode Single Mode, Multimode, Mono Mode
Distance 1 Multimode 0.5~2km Application Data Central, Fiber To The Computer
Application Data Central, Fiber To The Computer Slots Number 14, 16 Or Customized
Slots Number 14, 16 Or Customized
High Light

ethernet fiber media converter

,

optical fiber media converter

Leave a Message
Product Description

2U 19'' inch fiber optic media converter chassis rack mount 14 slots



Description:

- 19 inch media converter rack mount classis is designed to supply 14 or 16 slots of various types of media converter modules at a central location for multiple segments cross connection.

- Users can transparently link backbone equipments such as switches, routers to LAN workgroup segments.
Because of each module operates independently, new modules may be added as requested.

- This flexibility allows the unit to grow with the network.
- Installation is easy, simply slide module into the chassis, then the media is connected.

- All of the RM-1400/ RM-1600 modules are hot swappable thus eliminating costly network downtime.
- RM-1400/ RM-1600 converter rack fits cleanly into any network environment.

- With a slim low profile chassis and a mix of 10Mbps, 100Mbps and Gigabit media converter cards, the RM-1400/ RM-1600 becomes the perfect solution for connecting today's evolving networks.



Features:
- 19’ 2U rack, easy for focus management
- 14 or 16 slots for media converter module
- Power AC 220V or DC -48V optional
- Power is backup 1+1
- Double /single fiber with bi-direction optional
- 10/100M, 1000M media converter module optional
- Auto-identify MDI/MDIX
- 10M, 100M, full/half duplex auto negotiation
- Optional choose storage transmit or straight mode
- Support 100Base-Fx fiber transmit standard



Parameter:
- Dimension: 426mm×278mm×88mm
- Input power: 220VAC or -48VDC
- Output power: 5V
- Maximum output voltage: 50W
- Weight: 5Kg
- Working temperature: -10℃~70℃
- Storage temperature: -20℃~80℃
- Humidity: 5%~95%(no-condensing)



Quick information:

- Name: Fiber Optic Media Converter Chassis Rackmount 19 inch

- Slots number: 14, 16 optional

- Speed: 10/100/1000M or 10/100M

- Fiber: single fiber, dual fiber

- Mode: single mode, multimode

- Wave length:

Single mode: 1310/1550nm,1490/1550nm

Multimode: 850nm/1310nm

- Transfer distance:

Single mode: 20~120km

Multimode: 0.5~2km

- Optical port: SC, FC, LC, ST optional

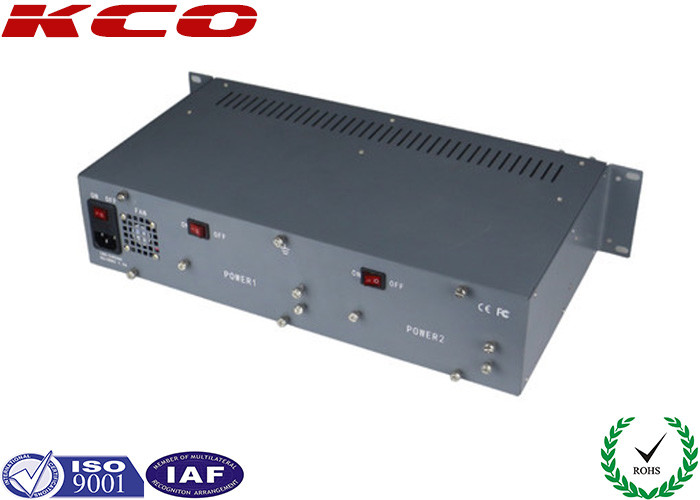

Fiber optic media converter product pictures:

Fiber Optic Media Converter Rack Mount 0



Applications:

Fiber Optic Media Converter Rack Mount 1



Fiber optic media converter Specifications:

Standard
IEEE802.3 (10BASE-T)
IEEE802.3u 100BASE-TX/FX (Fast-Ethernet)
IEEE802.3x (Flow Control)
IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Fiber Connector SC standard, ST/FC/LC optional
10/100BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX 50/125um, 62.5/125um multimode fiber cable (2Km)
9/125um single mode fiber cable (20/40/60/80/100/120Km)
Conversion Mode / Delay Time Store-and-Forward < 10us, straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
MTBF 50,000 hours
RJ-45 Port Auto-MDI/MDIX
Dimensions Card-inside155mm*128mm*32mm
Inner-power:140mm*110mm*30mm
External-power:95mm*70mm*25mm
Weight Card-inside:1.0KG
Inner-power:0.6KG
External-power:0.4KG
Input Voltage DC5V1A with External power adapter (TA)
Input Voltage AC100 ~ 240V / 50-60HZ (OM)
Wavelength 1310nm / 1550nm
Power Consumption <2.5W
BER <1/1000000000
Operation Temperature 0℃~50℃
Storage Temperature -40℃~70℃
Storage Humidity 5%~90% non-condescending
MAC Address Table 1K
Buffer Size 1M



Package:

Fiber Optic Media Converter Rack Mount 2



OEM Service: Label and package customized is always ready.

Otherwise, if you want to display your own brand LOGO one the equipment, it is no any problem. When your order quantity is more than 50 sets, we can do it FREE to you. Please call us or send e-mail to us with your LOGO and detail requirement, we will discuss more about it.



Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
